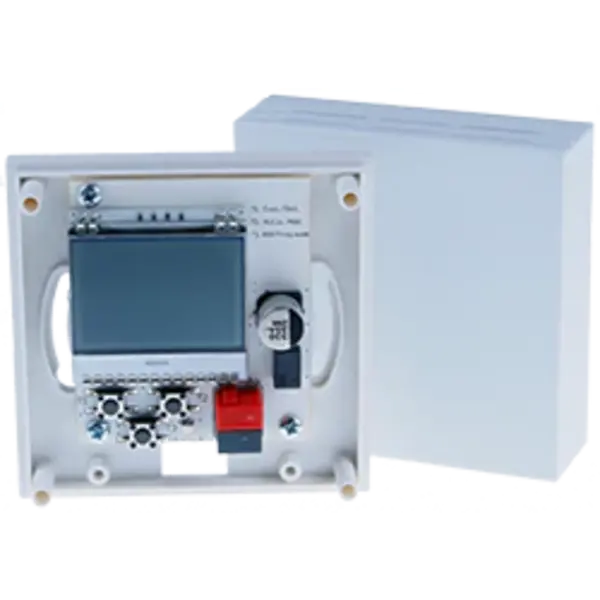

WEINZIERL 5137 EnOcean Gateway | Surface-mounted, KNX interface
€295,60 Excl. tax
€428,40 Excl. tax
€357,68 Incl. tax €518,36 Incl. tax. Out of stock, but available
€357,68 Incl. tax €518,36 Incl. tax. Out of stock, but available
Bidirectional EnOcean-KNX gateway for surface mounting. Links EnOcean wireless sensors/actuators with the KNX bus. Supports 32 channels, logic/timer functions, ETS setup. Read more
Specifications
Brand:
Weinzierl
Article number:
5137
EAN:
4260262771377
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Product Description – KNX ENO 634 EnOcean Gateway
Art. No. 5137
Application
The KNX ENO 634 is a bidirectional gateway between EnOcean wireless devices and the KNX bus. It enables the transmission of commands and measured values from EnOcean sensors to the KNX bus, allowing for the control of KNX actuators. Likewise, EnOcean wireless actuators can be controlled via KNX. Based on EnOcean Equipment Profiles (EEP), the gateway supports both receiving and emulating profiles to send appropriate telegrams. Configuration is done via ETS software, while device keys and display assist in teaching in wireless components.
Functions
- Bidirectional communication between KNX and EnOcean systems
- Support for EnOcean sensors and actuators
- 32 configurable channels for switching, dimming, blinds, scenes, timing and logic control
- Integrated repeater to extend wireless signal range
- Local operation and diagnostics via buttons and display
Technical Specifications
- Power supply: via KNX bus, approx. 12 mA
- Protection class: IP20 (EN 60529)
- Voltage: SELV 29 V⎓
- Dimensions: 81 x 81 x 25 mm
- Mounting: Surface-mounted, fits 55 mm wall boxes
- Housing: Plastic, white
- Weight: approx. 90 g
- Ambient temperature: 0 … +45 °C (operation), -25 … +70 °C (storage)
- Humidity: 5 … 93 % (non-condensing)
- Connections:
- KNX terminal (red / black)
- RF interface: EnOcean, 868.3 MHz, ASK, transmission power 3 dBm
- Supported EEP version: 2.1
Important Note
Note: The KNX ENO 634 is designed for permanent installation in dry indoor locations. Configuration and teach-in of EnOcean components is handled via ETS and the built-in device buttons.
