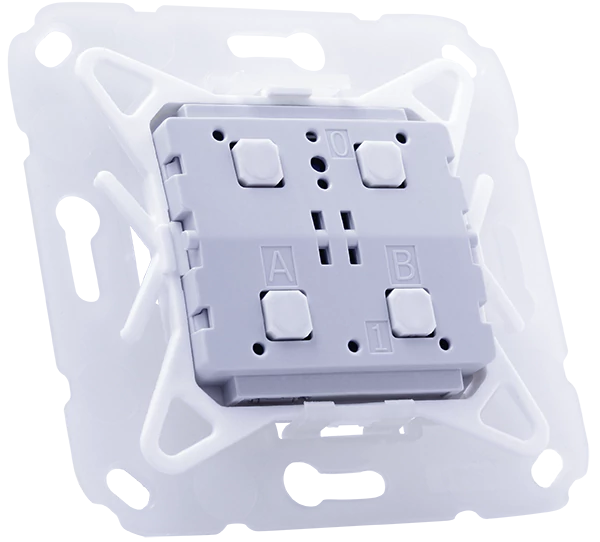

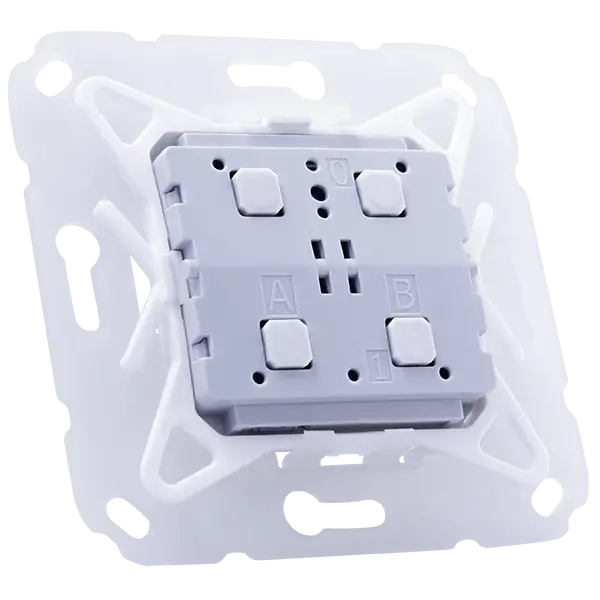

5492 KNX TP Push Button 420.1 secure – incl. temp. controller

55,80 Excl. tax €83,90 Excl. tax
€67,52 Incl. tax 101,52 Incl. tax.
Out of stock, but available
Unit price: €55,80 / Piece
Push button with bus coupling, temperature controller, 4 keys, 6 RGB LEDs and sound signal. For switching, dimming, blinds, scenes, color control, logic and sequences. Fits MATCH 55 frames. Read more

Specifications

Brand:
Weinzierl
Article number:
5492
EAN:
4260262774927
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Datasheet

Manuel

KNX TP Push Button 420.1 secure with Temperature Controller

Art. No.: 5492

Application

The KNX TP Push Button 420.1 secure from WEINZIERL is a multifunctional touch sensor from the MATCH 55 series. It features an integrated bus coupling unit and room temperature controller and offers extensive functionality for KNX installations in residential and commercial buildings.

Features

  • Suitable for installation with 1 or 2 rockers (available separately)
  • 4 independent button channels
  • 6 freely configurable RGB LEDs (red/blue/magenta) for status indication
  • 2 LEDs for single rocker / 4 LEDs for double rocker
  • Integrated multitone acoustic signal generator with selectable sound patterns
  • Built-in temperature controller with sensor
  • Supports switching, dimming, blind and shutter control
  • Scene and color control, value sending, sequence control
  • 10 logic or timing functions
  • Supports KNX Data Secure

Technical Specifications

Electrical Properties

  • Power supply: via KNX bus
  • Current consumption: approx. 12 mA (all LEDs on)

Mechanical Properties

  • Housing: plastic
  • Wall mounting plate dimensions: 71 x 71 mm
  • Fits standard flush-mounted box Ø 68 mm
  • Installation depth (bus terminal): 11 mm
  • Weight: approx. 15 g
  • Compatible with standard frames 55 x 55 mm

Environmental Conditions

  • Operating temperature: -5 °C to +45 °C
  • Storage temperature: -25 °C to +70 °C
  • Relative humidity: 5% to 93% (non-condensing)
  • Protection rating: IP20 (according to EN 60529)

Connections

  • KNX bus terminal (red/black)
  • Connector for external buttons or LEDs
  • Integrated temperature sensor
  • Compatible with terminal block Art. No. 5413 (optional)

Compliance

  • CE marking
  • EMC Directive 2014/30/EU
  • RoHS Directive 2011/65/EU
  • Standards: EN 63044-3, -5-1, -5-2, -5-3, EN 61000-6-2, EN 61000-6-3, EN 63000

Important Note

The KNX TP Push Button 420.1 secure is supplied with mounting kit, but without rockers. Rockers from the MATCH 55 series must be ordered separately.
