KEM accessory - Water flow sensor with temp. probe for ½” and ¾” pipe
€19,26 Incl. tax €23,70 Incl. tax. Not in stock in our warehouse, but available to order.
Specifications
Information

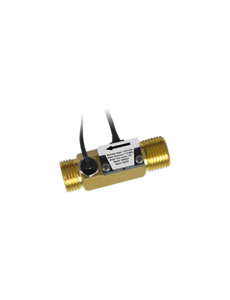

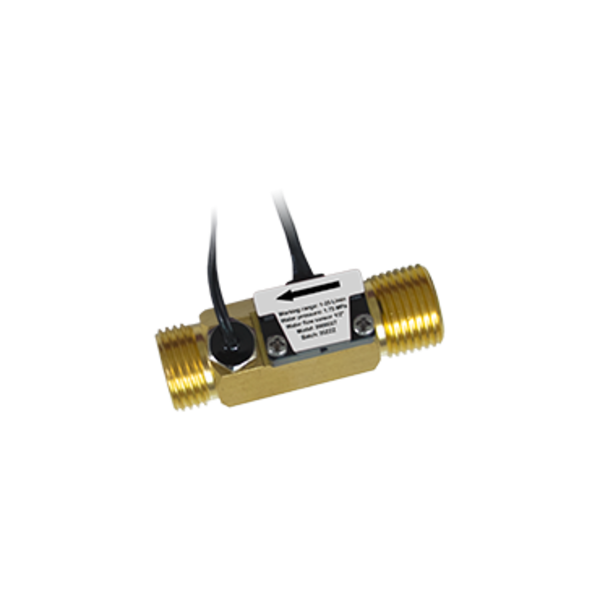

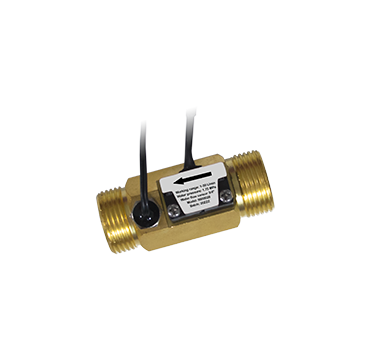

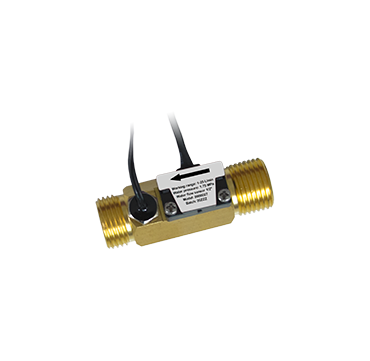

Water Flow Sensor with Temperature Probe
The water flow sensor with temperature probe is a robust and precise solution for measuring water consumption and temperature in pipes. This sensor combines a helicoidal rotor design with advanced Hall sensor technology, housed in a brass casing for reliability and durability.
Key Features
- Temperature probe with 0.5°C accuracy (@25°C).
- Helicoidal rotor and Hall sensor for optimal measurements.
- Compliant with CE directives.
- Compatible with ½” and ¾” pipes.
Specifications by Article Number
Article Number 9900027 (for ½” pipe)
| Operating Temperature | -20°C to +80°C |
|---|---|
| Storage Temperature | -25°C to +80°C |
| Pressure | Up to 17.5 bar (1.75 MPa) |
| Power Supply | 5VDC |
| Water Flow Range | 400 to 1500 l/h |
| Accuracy | 5% |
| Cable Cross-Section | 0.34 mm² (IEC) / 22 AWG (UL) |
Article Number 9900028 (for ¾” pipe)
| Operating Temperature | -20°C to +80°C |
|---|---|
| Storage Temperature | -25°C to +80°C |
| Pressure | Up to 17.5 bar (1.75 MPa) |
| Power Supply | 5VDC |
| Water Flow Range | 400 to 1800 l/h |
| Accuracy | 5% |
| Cable Cross-Section | 0.34 mm² (IEC) / 22 AWG (UL) |
Installation
The sensor is designed for easy installation in horizontal or vertical positions in a pipe. A QR code is provided for K-factor values to ensure precise readings.
