Z35 v3 Touch panel 3.5” with humidity probe - KNX SECURE
€315,27 Incl. tax €404,20 Incl. tax. Out of stock, but available
Specifications
Information
Product Description Z35 v3 3.5” Touch Display
The Zennio Z35 v3 is available in four elegant color variants:

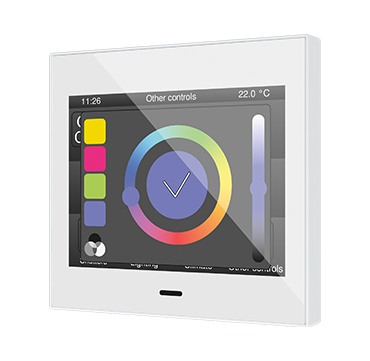

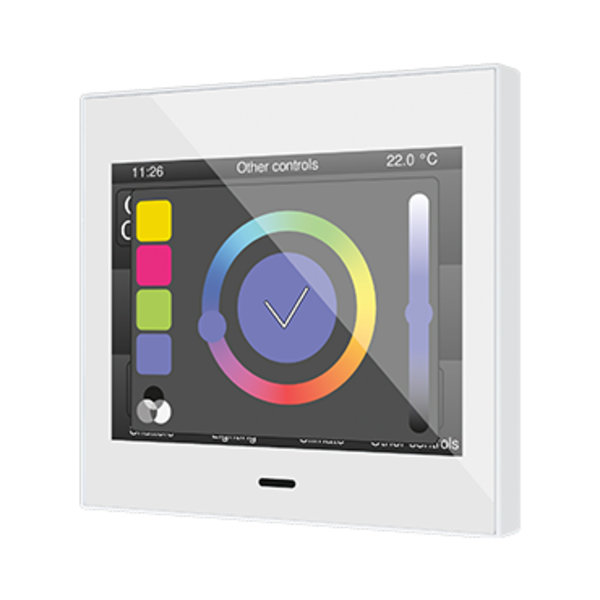

- ZVIZ35V3W – White (RAL 9016)

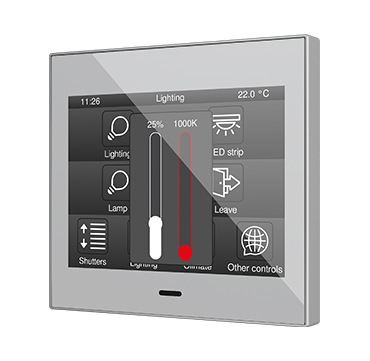

- ZVIZ35V3S – Silver (RAL 9006)

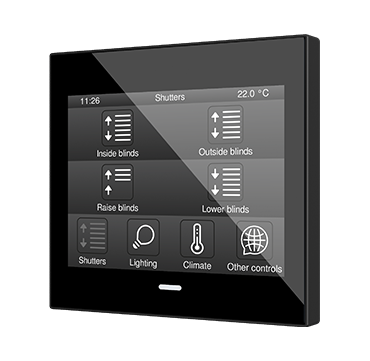

- ZVIZ35V3A – Anthracite (RAL 9004)

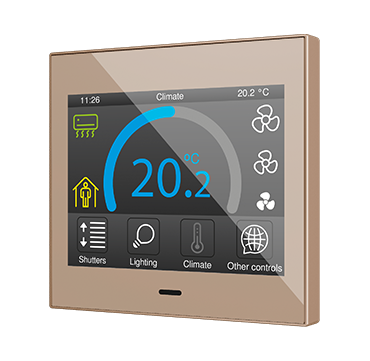

- ZVIZ35V3C – Champagne (RAL 1035)
The Zennio Z35 v3 is a modern capacitive touch panel with a clear 3.5” color display (320x240 pixels), designed for advanced KNX-based home and building automation. With built-in sensors and flexible functions, the panel is ideal for controlling multiple features within a KNX system.
The panel includes integrated sensors for temperature, humidity, brightness and proximity. Thanks to the proximity sensor, the menu activates automatically when a user approaches. A screensaver with time, date, and/or temperature appears during inactivity.
The Z35 v3 supports KNX Secure communication for increased protection. It also features 4 analog/digital inputs for potential-free switches, motion sensors, or temperature probes.
Main Features
- Capacitive 3.5" touchscreen with backlight
- Resolution: 320x240 pixels
- Up to 56 controls over 7 pages
- Built-in temperature and humidity sensors
- Brightness and proximity sensor
- 2 independent thermostats
- 4 multifunctional analog/digital inputs
- Screensaver with time, date, and temperature
- KNX Secure compatible
- Flush-mounted on standard back boxes
- Available in white, anthracite, silver, and champagne
Technical Specifications
- KNX supply voltage: 21–31 VDC (typical 29 VDC)
- Max. power consumption: 25 mA at 29 VDC
- Inputs: 4 (analog or digital, 3.3 VDC)
- Operating temperature: 0 .. +55 °C
- Storage temperature: -20 .. +55 °C
- Humidity: 5 .. 95% (operating & storage)
- Protection class: IP20
- Dimensions: 86.1 x 82.1 x 34.6 mm
- Installation: Flush mount
- KNX interface: integrated BCU (TP1-256)
- Weight: 163 g
- Housing: PC+ABS FR V0, halogen-free
Input Specifications
- Operating voltage per input: +3.3 VDC
- Current consumption: 1 mA per input
- Switching type: dry contact (potential-free)
- Wire cross-section: 0.2–1 mm² (IEC) / 26–16 AWG (UL)
- Max. cable length: 30 m
- NTC accuracy at 25 °C: ±0.5 °C
- Temperature resolution: 0.1 °C
Sensor Specifications
- Temperature range: -40 .. +90 °C
- Temperature accuracy: ±0.5 °C (at 25 °C)
- Humidity range: 0 .. 100 % RH
- Humidity accuracy: ±5 % RH
- Response time: 1 second
- Humidity drift: ±0.25 % RH per year
Important Notes
- Installation only by qualified professionals, in accordance with local regulations.
- Do not connect to mains or any external voltage – KNX bus only.
- Do not install in direct sunlight or airflows.
- Contains software under specific licenses – see zennio.com/licenses
- Dispose in accordance with WEEE regulations – see WEEE information.
Optional Accessories
- Zennio temperature probe
- Zennio motion sensor (max. 2 per input)
