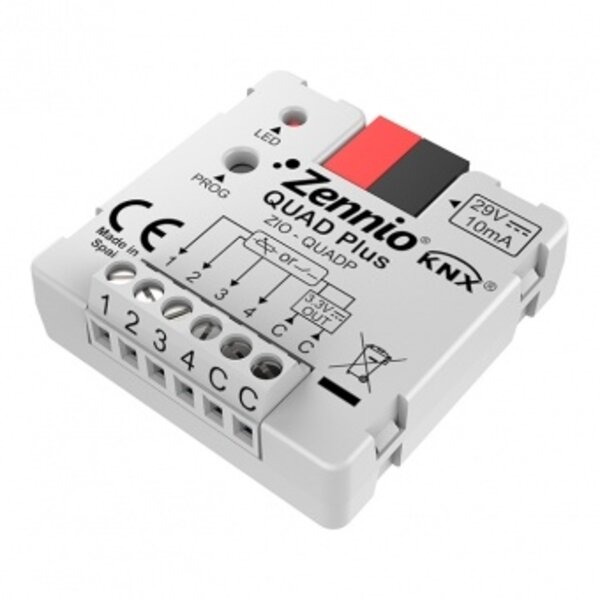

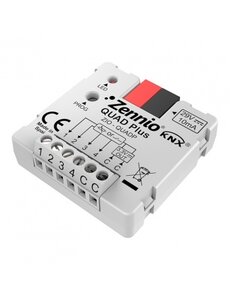

Zennio Quad PLUS Input module with 4 analog-digital inputs

78,12 Excl. tax €105,00 Excl. tax
€94,53 Incl. tax 127,05 Incl. tax.
Out of stock, but available Manual
Unit price: €78,12 / Piece
Input module with 4 configurable analog/digital inputs and 4 thermostats. Operates without external power. Compact design for easy installation. Read more

Specifications

Brand:
Zennio
Article number:
ZIO-QUADP
EAN:
8411080791863
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

Zennio Quad PLUS Input Module with 4 Analog-Digital Inputs

The Zennio Quad PLUS is a versatile analog-digital sensor providing a wide range of functionality. It includes four multi-function inputs, which can be configured as digital inputs for sensors, potential-free push buttons, temperature probes, or motion sensors. This module also supports four independent room thermostats for heating and cooling control, with data saving in case of KNX bus failure.

Key Features

  • Four configurable inputs: Each input can be set as binary input, temperature probe (NTC with customizable curve), or motion sensor, offering flexibility for various applications.
  • Four integrated thermostats: For precise control of heating and cooling systems across multiple rooms.
  • Data-saving feature on KNX bus failure: Complete data retention and automatic recovery upon bus restart.
  • Integrated KNX BCU: Type TP1-256, with typical bus consumption of 29 VDC, requiring no additional external power.
  • Dimensions: Compact module measuring 39 x 39 x 14 mm, suitable for installation in distribution boxes or wall back boxes.
  • Certifications: CE, UKCA, and RCM compliance with markings on the front housing.

Technical Specifications

Device type Electric control unit
KNX Supply voltage 21-31 VDC (typical 29 VDC)
Maximum consumption At 29 VDC: 6 mA / 174 mW; At 24 VDC: 10 mA / 240 mW
Operating temperature 0 .. +55 °C
Storage temperature -20 .. +55 °C
Operating humidity 5% - 95%, non-condensing
Storage humidity 5% - 95%, non-condensing
Protection class IP20, suitable for clean environments
Installation type Independent installation in distribution boxes or wall back boxes
Operation indicator Programming LED indicates programming mode (red)
Weight 17 g
Housing material PC FR V0, halogen-free

Input Specifications and Connections

Number of inputs</
