Presentia C MultiSensor KNX ceiling model with CO₂ & humidity
€141,89 Excl. tax
€199,00 Excl. tax
€171,69 Incl. tax €240,79 Incl. tax. Out of stock, but available
€171,69 Incl. tax €240,79 Incl. tax. Out of stock, but available
KNX-Deckenpräsenzmelder mit PIR, Licht-, Temperatur-, Feuchte- und CO₂-Sensor. Für konstante Lichtregelung, Klima- und Luftqualitätssteuerung. Auf- oder Unterputzmontage, KNX Secure. Read more
Specifications
Brand:
Zennio
Article number:
ZPDCMSW
EAN:
8411080792587
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

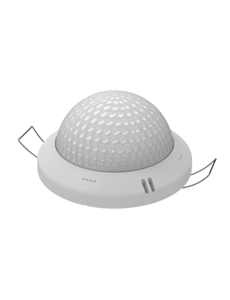

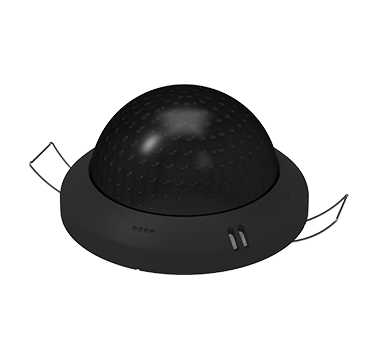

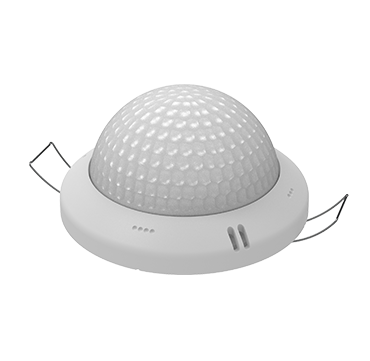

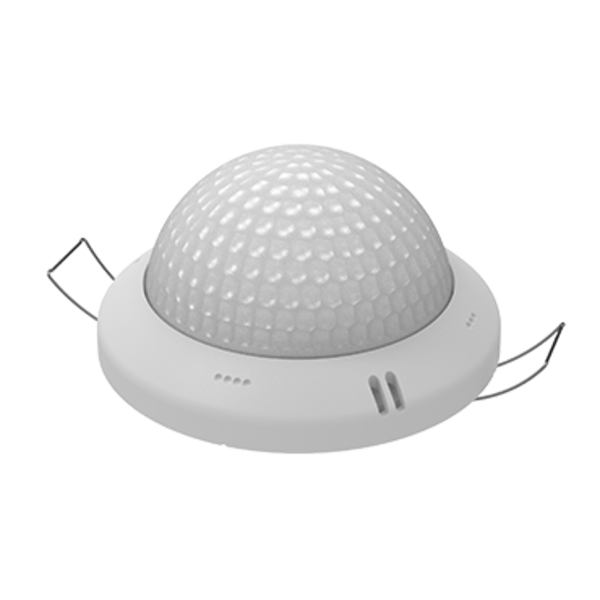

Presentia C MultiSensor – White and Anthracite
Ref.: ZPDCMSW (White), ZPDCMSA (Anthracite)
Description
KNX ceiling presence detector with 360° coverage and integrated lux, temperature, relative humidity, and CO₂ sensors. Ideal for constant light regulation, presence and occupancy detection, and climate and air quality management. Available in white (ZPDCMSW) and anthracite (ZPDCMSA). Supports KNX Data Secure and can be mounted surface or flush.
Applications
- Offices, meeting rooms, classrooms, hotels, and healthcare facilities
- Automatic lighting with constant lux regulation or threshold-based control
- Climate control via integrated thermostat and temperature/humidity monitoring
- Air quality monitoring and ventilation control based on CO₂ levels
Main Features
- PIR presence detector with 4 sectors and adjustable sensitivity
- Lux sensor with spectral sensitivity similar to the human eye
- Built-in temperature, humidity, and CO₂ sensor + CO₂ controller
- 6 presence channels, 2 constant light regulation channels
- Occupancy detection, 10 logic functions, thermostat module
- 2 analog/digital inputs (dry contact) for external contacts/NTC
- Master/slave configuration for large areas
- Data retention in case of KNX bus failure; automatic recovery
- Integrated KNX BCU (TP1-256); KNX Data Secure supported
- LED indication per detection sector; programming button with safe mode
Technical Data
General
| KNX Supply | 29 VDC SELV (typ.); range 21–31 VDC |
|---|---|
| Power/Consumption | 8.4 mA / 243.6 mW @29 VDC (typ.); 10 mA / 240 mW @24 VDC |
| Bus Connection | TP1 connector for Ø0.8 mm solid conductor |
| External Power | Not required |
| Operating Temperature | 0 … +35 °C |
| Storage Temperature | −20 … +55 °C |
| Relative Humidity (op/storage) | 5 … 95 % (non-condensing) |
| Degree of Protection | IP20, clean environment |
| Protection Class | Class III |
| Dimensions | Ø 84 × 47 mm |
| Weight | 66 g |
| Mounting | Surface or flush (accessory included) |
| Conformity | CE, UKCA (mark on back) |
Integrated Sensors
| Temperature | Range −10 … +60 °C; resolution 0.1 °C; accuracy ±0.8 °C (@25 °C) |
|---|---|
| Relative Humidity | Range 0 … 100 %RH; resolution 1 %; accuracy ±6 %RH; response ≈ 1 s; drift ±0.25 %/year |
| CO₂ | Range 400 … 2000 ppm; resolution 10 ppm; accuracy ±50 ppm; drift ±5 ppm / 5 years |
| Lux Sensor | Spectral response similar to human eye; adjustable calibration |
Detection & Presence Areas (h = 2.7 / 4.0 m)
| Parameter | 2.7 m | 4.0 m |
|---|---|---|
| Max. motion detection (tangential) | Ø 30 m | Ø 25 m |
| Max. motion detection (radial) | Ø 20 m | Ø 16 m |
| Presence area (1 m above floor) | Ø 10 m | Ø 10 m |
| Max. area (unaffected by sensitivity) | Ø 6 m | Ø 6 m |
Note: Different mounting heights will alter these ranges. Radial movement detection is shorter than tangential.
Logic and Channels
| Presence Channels | 6 independently configurable |
|---|---|
| Constant Light Control | 2 channels (adjustable lux setpoint) |
| Logic Functions | 10 (AND/OR, timers, thresholds, inversions) |
| Thermostat | Integrated controller (heating/cooling, setpoints) |
| Occupancy Detection | Yes (for room status and scenes) |
Inputs (A/D)
| Number | 2 (per common: 2) |
|---|---|
| Switch Type | Dry contact between input and common |
| Operating Voltage | +3.3 VDC on common |
| Current per Input | ≈ 1 mA @ 3.3 VDC |
| Wiring | Screw terminal, 0.5–1 mm² (IEC) / 26–16 AWG (UL), max. 30 m |
| NTC (external sensor) | Resolution 0.1 °C; accuracy ±0.5 °C (@25 °C) |
| Max. Response Time | 10 ms |
Variants & Identification
- White: ZPDCMSW — EAN 8411080792587
- Anthracite: ZPDCMSA — EAN 8411080792594
Installation & Operation
- Mounting as surface or flush device; orientation marks on housing
- Programming button: short press for programming mode; hold when connecting for safe mode
- KNX Secure factory reset: in safe mode, press button for ~10 s until LED status changes
- LED indication: red for programming/safe, blue blinking during sensor initialization; white flash per detection sector
Scope of Supply
- Detector (white or anthracite), mounting base/plate, manual
Important Notes
- Installation only by qualified professionals in accordance with local regulations.
- Never connect mains or other external voltages to the KNX bus.
- Ensure sufficient insulation between mains/auxiliary voltage, KNX wiring, and accessories.
- Indoor use only, in dry and clean environments (IP20). Avoid condensation and covering.
- Lux and detection ranges depend on mounting height, positioning, and environment.
- Full data saving on bus failure; restart behavior per ETS parameterization.
- This device contains software under specific licenses; see manufacturer’s license info.
