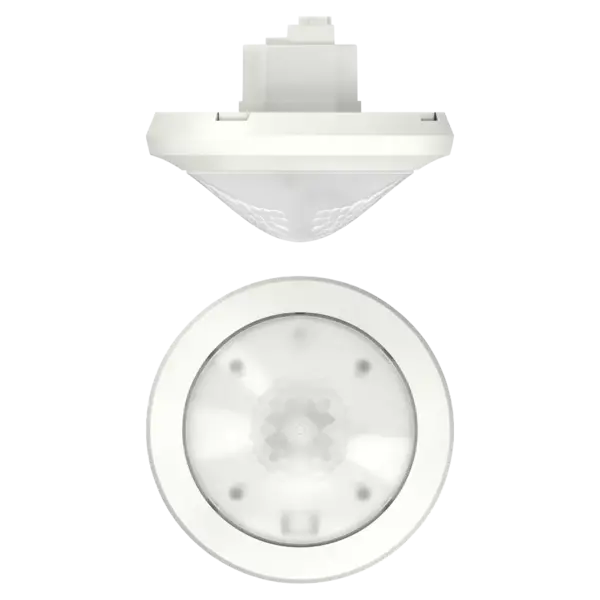

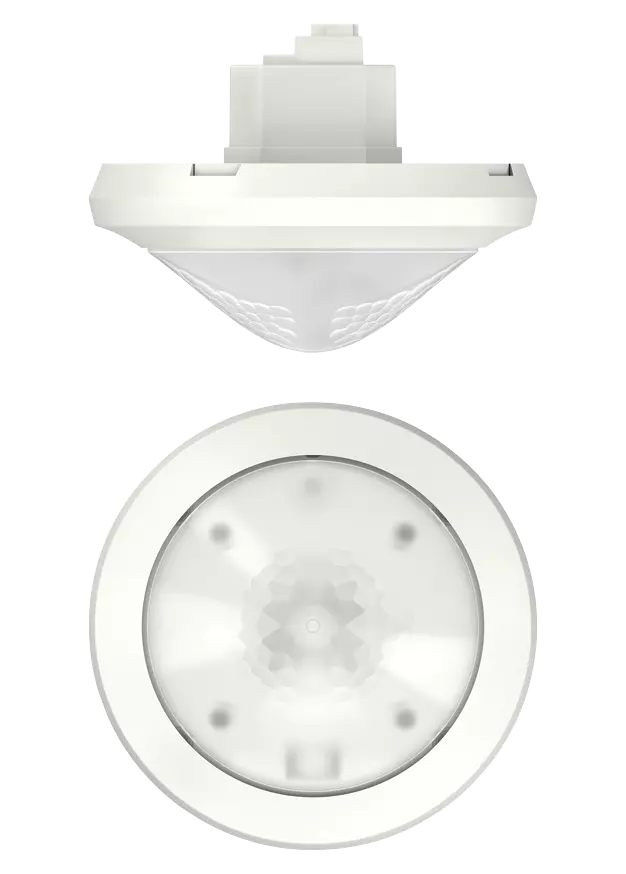

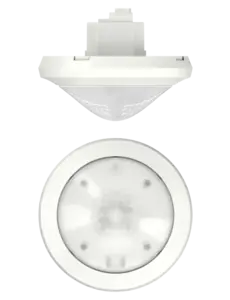

thePassa P360 KNX UP WH – PIR ceiling sensor corridor 30×5 m
€163,22 Incl. tax €283,85 Incl. tax. Out of stock, but available
Specifications
Information
thePassa P360 KNX UP WH – Presence Detector for Corridors
Colour: White
Article number: 2019300
EAN code: 7612748006492
Application
The thePassa P360 KNX UP WH is a passive infrared presence detector for KNX systems, designed for ceiling installation in corridors and storage aisles. Its 30 × 5 m rectangular detection area and features like walk-through lighting and constant light control make it ideal for energy-efficient lighting in narrow spaces.
Features
- Rectangular detection area 30 × 5 m with 2 independently switchable zones (15 × 5 m each)
- 2 light channels (C1, C2) with shared light measurement
- 2 presence channels with offset configuration
- Walk-through light function detects direction and pre-activates adjacent zones
- Aura effect: activates current zone, dims surrounding areas
- Motion direction detection for comfort applications (e.g. automatic door opening)
- Supports LEDs, fluorescent lamps, compact fluorescent, halogen, incandescent
- Fully or semi-automatic operation selectable
- Constant light control with stand-by and dimming capability
- Light level setpoint adjustable via parameter, object or remote control
- Teach-in function for light level
- Room correction factor for light measurement compensation
- Configurable delay times for light and presence switching
- Self-learning delay with short presence detection
- Scene functionality and test mode to check detection area
- Parallel connection as Master/Slave or Master/Master possible
- Detection area can be limited via masking segments
- Manual operation via telegram or IR remote control

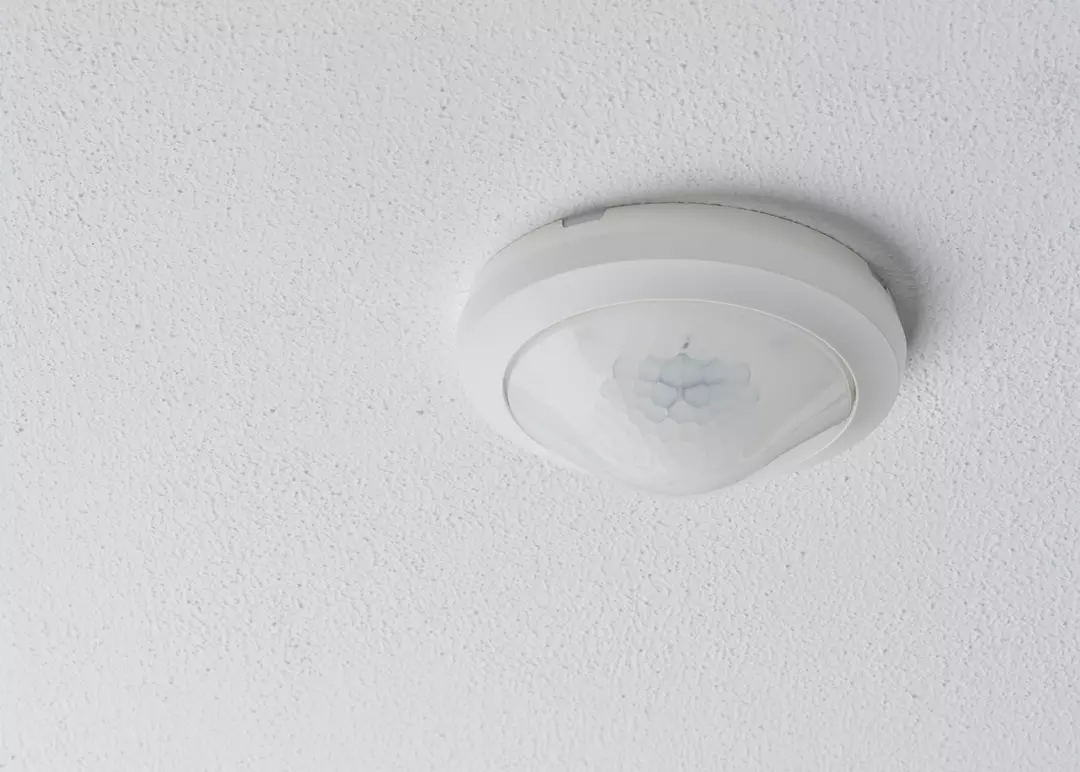

- Ceiling flush-mount, optional surface-mount with mounting frame
Technical Data
| Mounting height: | 2 – 6 m |
| Maximum detection height: | 15 m |
| Detection angle: | 360° |
| Detection area: | 30 × 5 m (150 m²) |
| Light measurement range: | 10 – 3000 lux |
| Supported lamp types: | LED, fluorescent, CFL, halogen, incandescent |
| Light measurement method: | Mixed light |
| Light delay time: | 30 seconds – 60 minutes |
| Presence delay time: | 10 seconds – 120 minutes |
| Presence switch-on delay: | 10 seconds – 30 minutes / off |
| Protection class: | IP54 (when installed correctly) |
| Connection type: | KNX bus terminal |

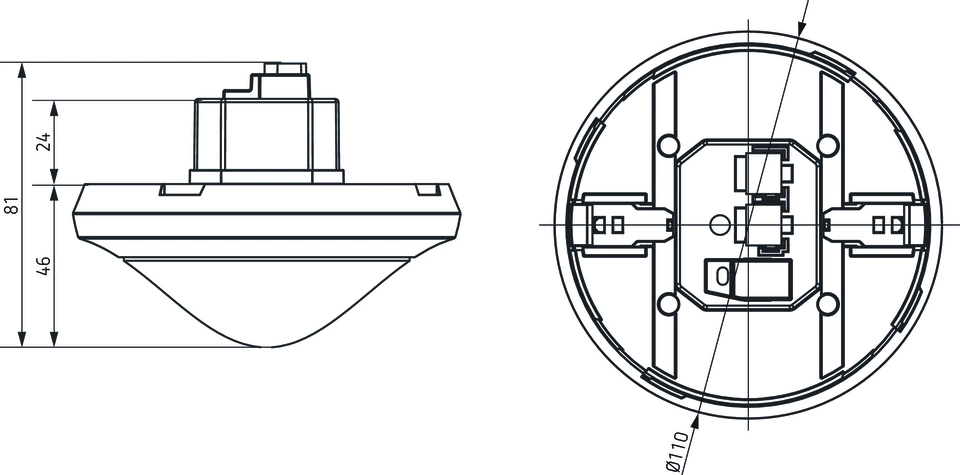

| Mounting type: | Ceiling flush or optional surface-mounted |
| Ambient temperature: | -15 °C to +50 °C |
| Colour: | White |
Important Notes
- Optimal detection at mounting heights of 2.5 – 3.5 m.
- Surface-mounting requires an additional frame (optional).
- Requires KNX installation and ETS programming.
- Remote control operation available (optional accessories).
