Taster Smart 86 | Series .02 with and without temperature sensor
€169,10 Incl. tax €260,15 Incl. tax. Out of stock, but available Manual
Specifications
Information
Push-button Smart 86 | Series .02
The Push-button Smart 86 | Series .02 is a versatile and innovative solution for controlling lighting systems, blinds, climate control, and other functions in KNX installations. This product is available with or without an integrated temperature sensor, providing added flexibility when configuring your system. The version with a temperature sensor allows the room temperature to be adjusted in combination with a heating or air conditioning system. Both versions feature 6 mechanical buttons with finger recesses and a large active color display that clearly shows functions and statuses. The display dynamically adjusts to the ambient brightness and can automatically turn off at night.
Features
- Large, active color display for function and status indication.
- Adjustable background color (white or black).
- Symbols and plain text customizable for each button.
- 6 mechanical buttons with finger recesses for precise operation.
- Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions).
- Up to 6 functions without level switching.
- RGB status indicators for each button individually adjustable.
- Display of indoor/outdoor temperature and time.
- Automatic brightness adjustment via light sensor and day/night object.
- Slap function for quick operation with an additional switch channel.
- Installation without a frame in a standard flush-mounted box.
- Integrated bus coupling unit, no additional power supply required.
- Made in Germany, certified according to ISO 9001.
- 3-year warranty.
Additional functions for the version with temperature sensor
- The integrated temperature sensor allows for setting the temperature and the operating mode of the heating or air conditioning system.
- Efficient room climate control in combination with the MDT heating actuator.
- Visualization of temperature and 1-bit or 14-byte messages on the display.
Technical data
| Function | Specifications |
|---|---|
| Number of buttons | 6 |
| Temperature range without sensor | 0 to +45 °C |
| Temperature range with sensor | 0 to +40 °C |
| Protection class | IP 20 |
| Dimensions (W x H x D) | 86 mm x 86 mm x 29.2 mm |
| Power supply | KNX bus |
| Power consumption | < 0.6 W |
| Installation height | 1.10 - 1.25 m (as push-button) / 1.50 - 1.60 m (as control device) |
| Available application software | ETS 5/6 |
| KNX Interface | TP-256 |
| Wiring | KNX bus connection: 0.8 mm Ø, solid |
Important note
The Push-button Smart 86 with an integrated temperature sensor offers extensive possibilities for room temperature control. In combination with an MDT heating actuator, an efficient temperature control system can be configured and visualized.
Available versions

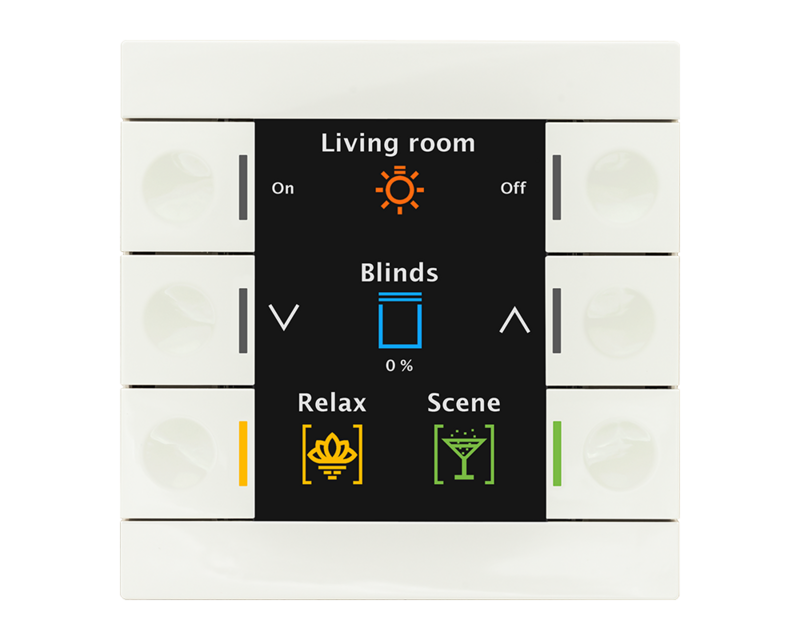

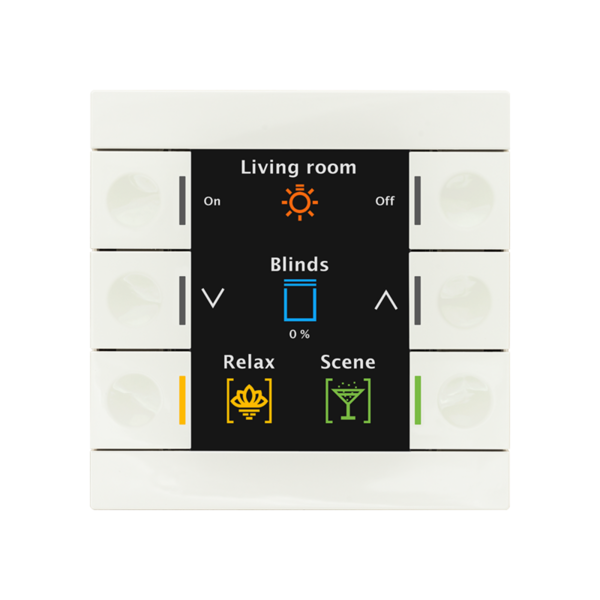

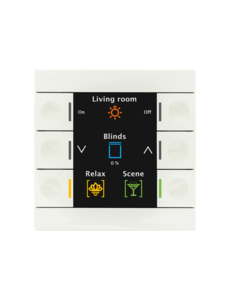

- BE-TAS86.02 Push-button Smart 86 White glossy finish, installation in socket

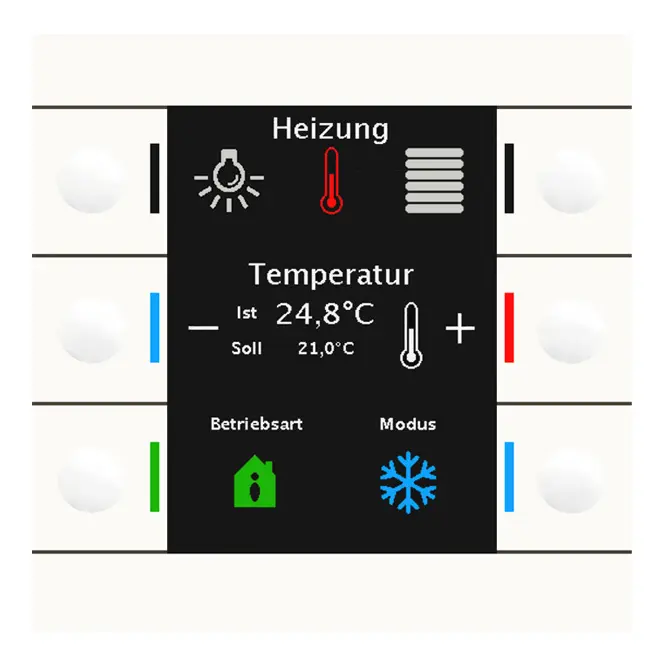

- BE-TAS86T.02 Push-button Smart 86 White glossy finish, integrated Temperature Sensor, installation in socket
- BE-TAS8606.02 Push-button Smart 86 | series .02 Color: Black matt, Color Display: Yes

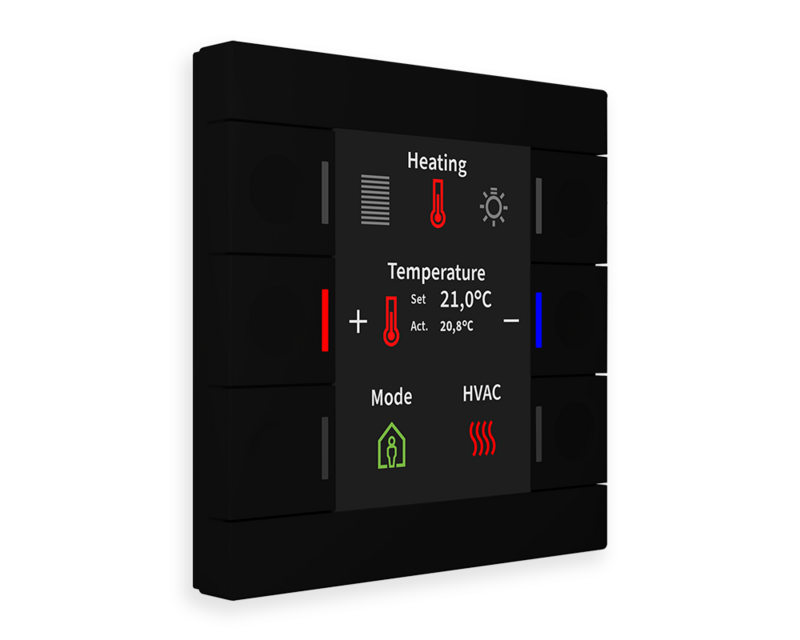

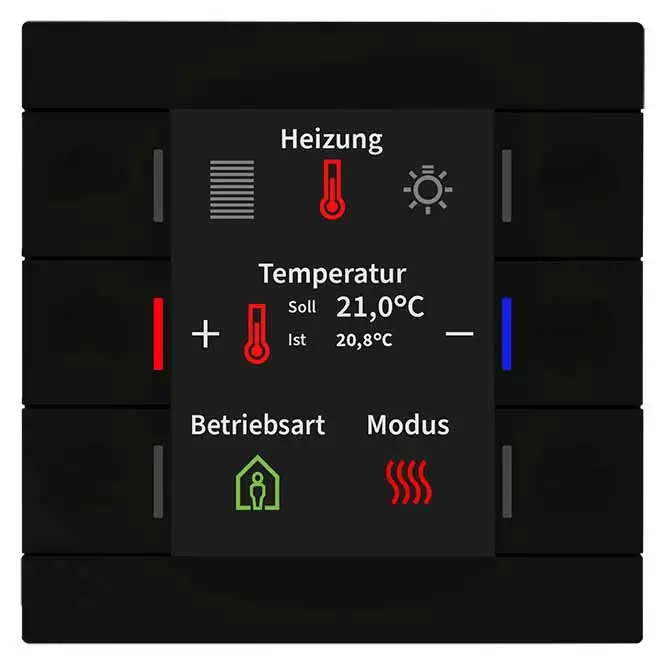

- BE-TAS86T06.02 Push-button Smart 86 | series .02 Color: Black matt, Color Display: Yes, Temperature Sensor: Yes
