IP-router KNX SECURE INTERFACE - IN00S01RIP
€483,00 Excl. tax
€537,00 Excl. tax
€584,43 Incl. tax €649,77 Incl. tax. Out of stock, but available
€584,43 Incl. tax €649,77 Incl. tax. Out of stock, but available
Compact KNX IP router for line coupling via LAN. Supports KNX Secure, up to 8 tunneling connections and extended filter tables. Powered via KNX bus. Read more
Specifications
Brand:
eelectron
Article number:
IN00S01RIP
EAN:
8054144521268
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Product Description

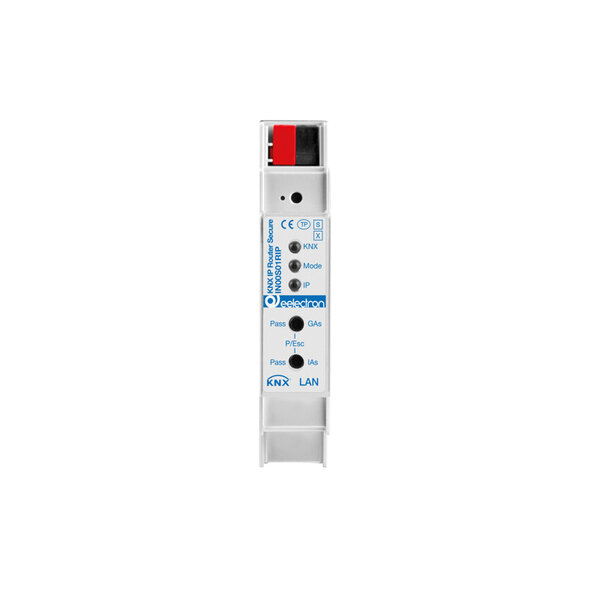

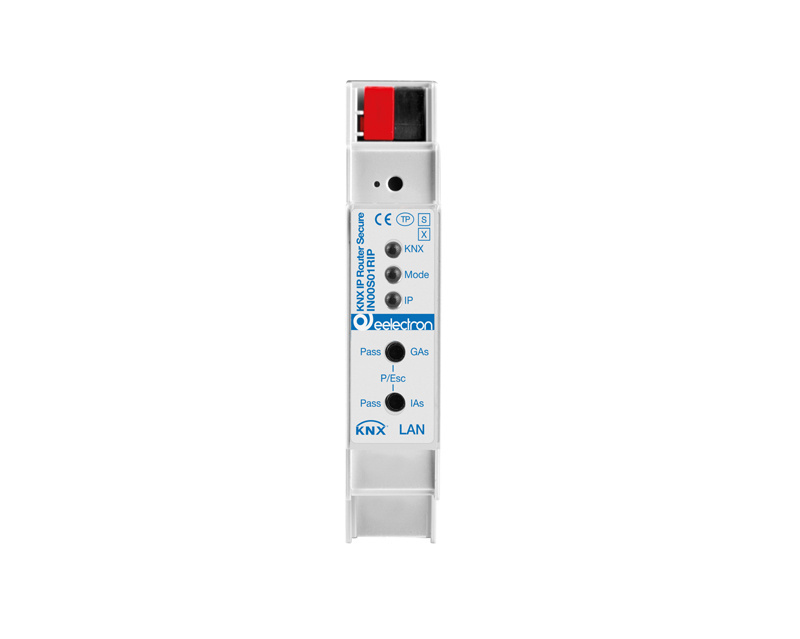

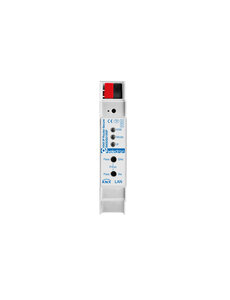

The EELECTRON KNX IP Router Secure (art. no. IN00S01RIP) is a compact DIN rail interface that enables the forwarding of telegrams between different KNX lines via a LAN (IP). The device supports KNX Secure for both routing and tunneling functionality, preventing unauthorized access to the network. Using an IP backbone ensures fast and reliable communication.
The router can also be used to connect a PC to the KNX network, for example for ETS® programming. With an extended filter table and the ability to buffer up to 150 telegrams, the device is well-suited for medium to large installations. Power supply is provided entirely via the KNX bus.
Applications
- Coupling of multiple KNX lines via IP backbone
- Secure connection for ETS® programming and maintenance
- Integration of KNX Secure communication into existing installations
- Reliable tunneling and routing with extended filtering options
Main Features
- Supports KNX Secure (AES-128) including Tunneling V2 and Core V2
- Up to 8 simultaneous KNXnet/IP tunneling connections
- Extended filter table for main groups 0..31
- DHCP or manual IP configuration via ETS®
- Buffer memory for up to 150 telegrams
- Compact design, only 1 DIN rail unit (18 mm)
- Power supplied via KNX bus (approx. 20 mA)
Technical Data
Electrical Safety
- Protection rating: IP20 (EN 60529)
- Bus voltage: SELV DC 29 V
- CE marking according to EMC Directive 2014/30/EU and RoHS 2011/65/EU
- Standards: EN 50491-3:2009, EN 50491-5-1/2/3:2010, EN 61000-6-2:2005, EN 61000-6-3:2007 + A1:2011, EN 50581:2012
Environmental Conditions
- Operating temperature: -5 °C … +45 °C
- Storage temperature: -25 °C … +70 °C
- Relative humidity: 5 % … 93 % (non-condensing)
Mechanical Data
- Housing: plastic (PC)
- Mounting: DIN rail, width 1 unit (18 mm)
- Weight: approx. 40 g
Controls and Indicators
- KNX programming button with red LED
- 2 buttons and 3 multicolor LED indicators
Interfaces
- KNX medium: IP/TP
- LAN connection: RJ-45, 10BaseT (10 Mbit/s)
- Supported protocols: ARP, ICMP, IGMP, UDP/IP, DHCP, Auto IP
Important Notes
- Suitable only for fixed indoor installations in dry environments.
- A minimum distance of 4 mm must be maintained between mains voltage cables and KNX bus cables.
- Do not connect to 230 V!
- Mounting and commissioning must be carried out by an authorized installer.
- Do not open the device; defective units must be returned to the manufacturer.
- When using KNX bus commands, always ensure that no hazardous situations arise from remote control.
