KNX Switching Actuator / I/O | 8 IN / 8 OUT | 16A / 16AX – C-load
€279,51 Incl. tax €497,31 Incl. tax. Out of stock, but available
Specifications
Information

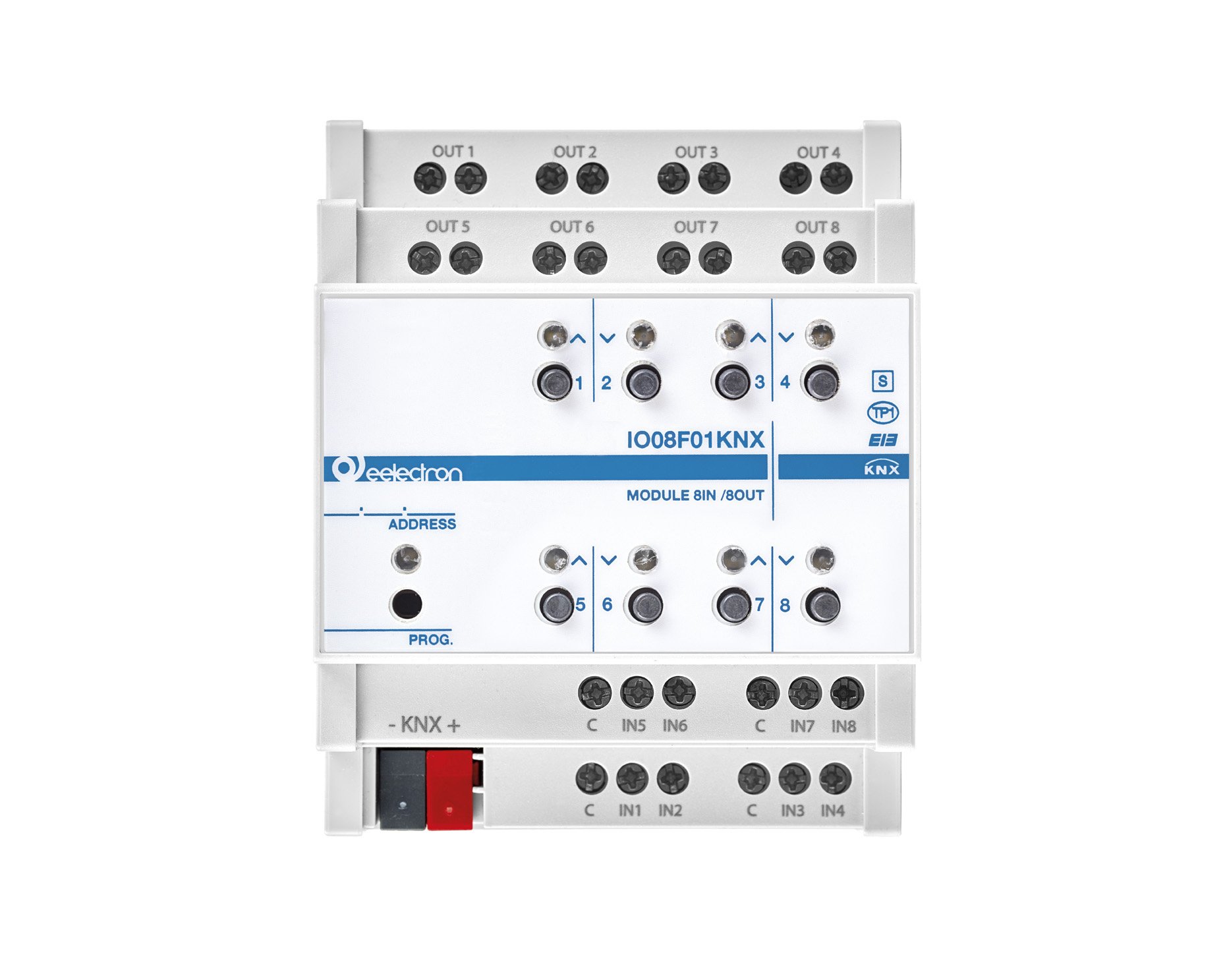

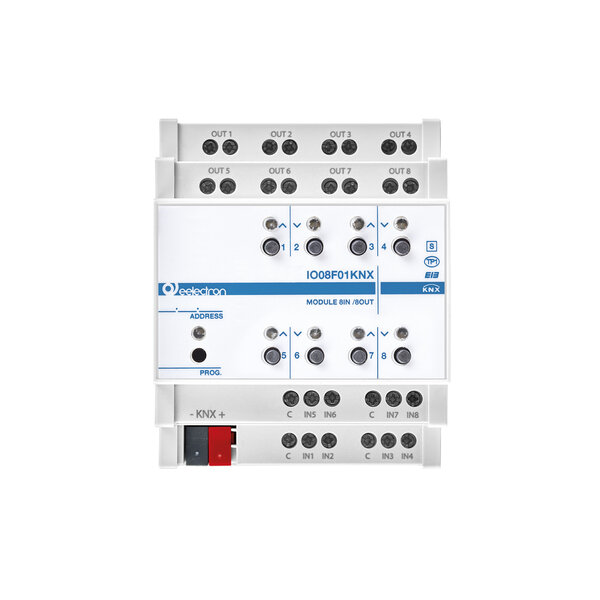

KNX Switching Actuator / I/O 8 IN / 8 OUT – 16A / 16AX C-load
Article number: IO08F01KNX
The KNX switching actuator/I/O with 8 relay outputs (16A/16AX – C-load) and 8 potential-free inputs provides extensive control options for lighting, HVAC, blinds, ventilation and scenes. The outputs can be configured individually or in pairs for applications such as shutters, fans and 3-point valve control.
The device also supports PWM valve control (8 channels), 4 channels for shutter/blind control, 4 channels for 3-point valves and 2 fan coil actuators (2-pipe). Relays can be combined with logic interlock for 4-pipe / 3-speed fan coils or special functions using up to 8 outputs.
The 8 inputs can be used for pushbuttons, switches or (as outputs) for signalling LEDs. Four of these inputs can be configured as analogue inputs for NTC temperature sensors, allowing measurement and simple thermal control.
The module supports up to 2 integrated thermostats with PI control, suitable for heating, cooling, valves and 2- or 4-pipe fan coil systems. Manual control via front buttons and status LEDs is also available.
Technical features:
– 8 relay outputs 16A/16AX (140 µF) – suitable for C-loads
– Minimum switching current: 10 mA
– Maximum inrush current: 165 A / 20 ms
– Motors / EVG / LED drivers: max. 10 A (check inrush)
– 8 potential-free inputs (dry contact)
– 4 analogue inputs for NTC sensors (TS00A/B/D01ACC)
– KNX bus supply: 21–32 V DC, approx. 10 mA
– microSD (SD version) for fast restore programming
This model is part of the Eelectron F-Series and is also available in 4-, 12-, 16- and 24-channel versions. See Related products for all available models.
The same series also includes actuators without inputs for installations requiring relay control only.
