4-channel KNX switch actuator 16A – 230V AC for loads & shutters
€142,78 Incl. tax €254,10 Incl. tax. Out of stock, but available
Specifications
Information

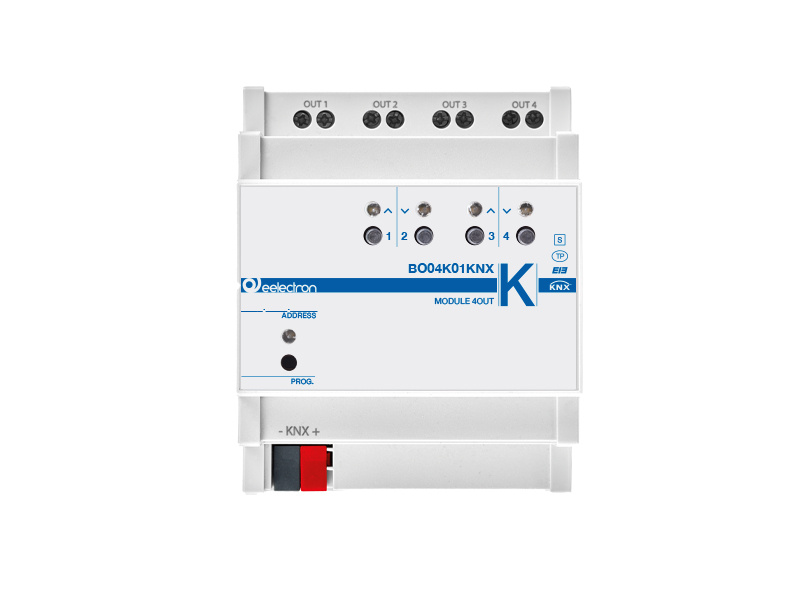

4-channel KNX DIN Switch Actuator 16A – 230 V AC
Article number: BO04K01KNX
Product Description
The Eelectron BO04K01KNX is a 4-channel KNX DIN switch actuator with 16A relay outputs for switching lighting, general electrical loads, and controlling shutters or blinds. The actuator features 8 logic functions and an integrated KNX communication interface for reliable and flexible building automation.
Applications
- Switching lighting and general electrical loads
- Control of shutters, blinds, and roller shutters (pairwise configurable)
- KNX home and building automation
- Hotels, offices, and commercial buildings
Main Features
- 4 independently configurable 16A relay outputs
- Supports both lighting loads and motor control
- 8 logic blocks for advanced automation
- Integrated KNX bus interface (21–32 V DC)
- TV-8 inrush current rating (117 A) suitable for LED drivers
- Configurable via ETS
- DIN-rail mounting (4 modules wide)
Technical Data
Power Supply and Consumption
- Supplied via KNX bus: 21–32 V DC
- Current consumption: ≤ 10 mA (≤ 25 mA during switching peak)
Outputs
- 4 relay outputs, 16 A at 250 V AC (cosφ = 1)
- Inrush current: 117 A (TV-8)
- Max. incandescent load: 5 A
- Max. standard ballast: 8 A
- Max. motor load: 3 A (1 HP)
Mechanical
- Housing: PC-GF plastic
- Width: 4 DIN modules
- Weight: approx. 200 g
Electrical Safety
- Protection rating: IP20 (EN 60529)
- Compliant with EN 63044-3 and European EMC directives
- SELV bus connection
Important Notes
- For indoor installation in dry environments only
- Not C-Load classified — check LED driver inrush current
- For DIN-rail mounting only
- Part of the Eelectron DIN actuator series
