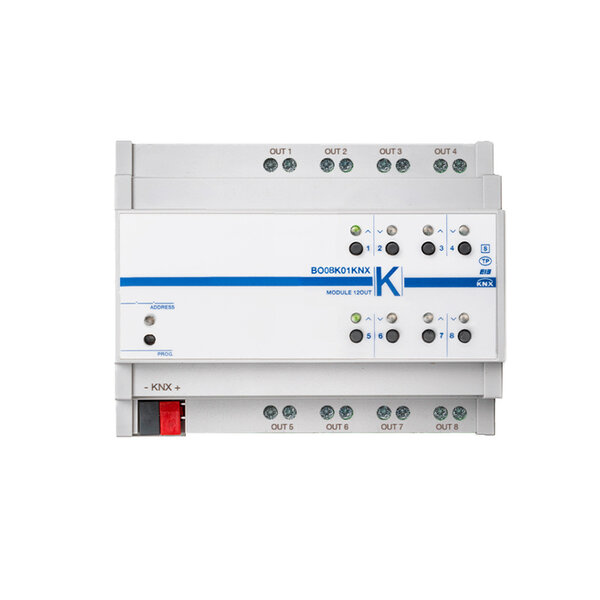

8-channel KNX switch actuator 16A – 230V AC for loads & shutters
€200,86 Incl. tax €356,95 Incl. tax. Out of stock, but available
Specifications
Information
8-channel KNX DIN actuator 16A – 230 V AC
Article number: BO08K01KNX
Product Description

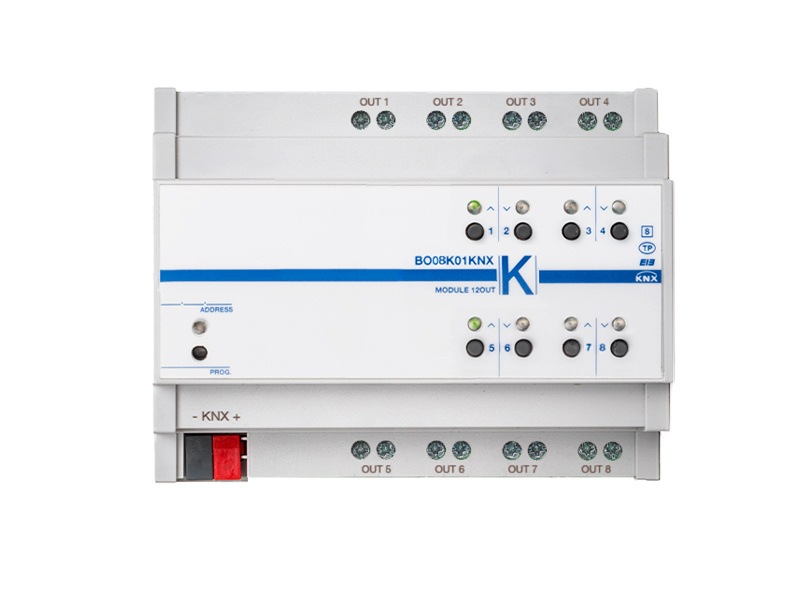

The Eelectron BO08K01KNX is an 8-channel KNX DIN actuator with 16A relay outputs for switching lighting, general electrical loads and controlling shutters or blinds. The actuator features 8 logic blocks and an integrated KNX communication interface, ensuring reliable and flexible building automation.
Applications
- Switching of lighting and general electrical loads
- Control of shutters, blinds and venetian blinds (pairwise configurable)
- Professional KNX home and building automation
- Hotels, offices and commercial buildings
Main Features
- 8 independently configurable 16A relay outputs
- Supports lighting loads and motor control
- 8 logic blocks for advanced automation
- Integrated KNX bus interface (21–32 V DC)
- TV-8 inrush rating (117 A) suitable for compatible LED drivers
- Fully configurable via ETS
- DIN-rail mounting (6 modules wide)
Technical Data
Power Supply and Consumption
- Supply via KNX/EIB bus: 21–32 V DC
- Current consumption: ≤ 10 mA
- Max. peak during switching (80 ms): ≤ 25 mA
Outputs
- 8 relay outputs, 16 A at 250 V AC (cosφ = 1)
- Inrush current: 117 A (TV-8)
- Max. incandescent lamp load: 5 A
- Standard ballast: max. 8 A
- Motor load: max. 3 A (1 HP)
- LED drivers: check maximum inrush current per driver
Mechanical Characteristics
- Housing material: PC-GF plastic
- Width: 6 DIN modules
- Weight: approx. 300 g
Electrical Safety
- Protection rating: IP20 (EN 60529)
- SELV bus connection 21–32 V DC
- Complies with EN 63044-3 and European EMC standards (EN 63044-5-1 / 5-2)
Important Notes
- For indoor use in dry environments only
- Not classified as C-Load — verify LED driver inrush currents
- Suitable only for DIN-rail mounting (EN 50022)
- Part of the Eelectron DIN actuator series
