12-channel KNX switch actuator 16A – 230V AC for loads & shutters
€267,41 Incl. tax €474,32 Incl. tax. Out of stock, but available
Specifications
Information
Link to Eelectron Website (ENG)

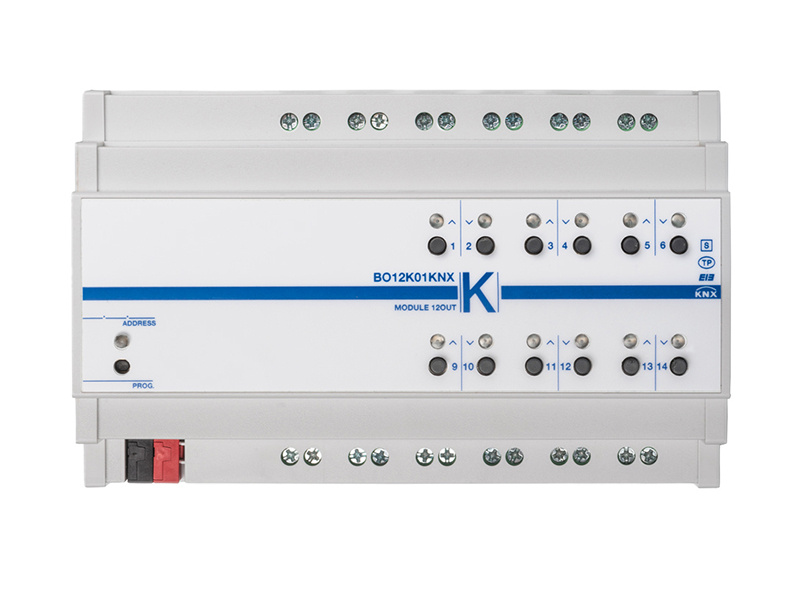

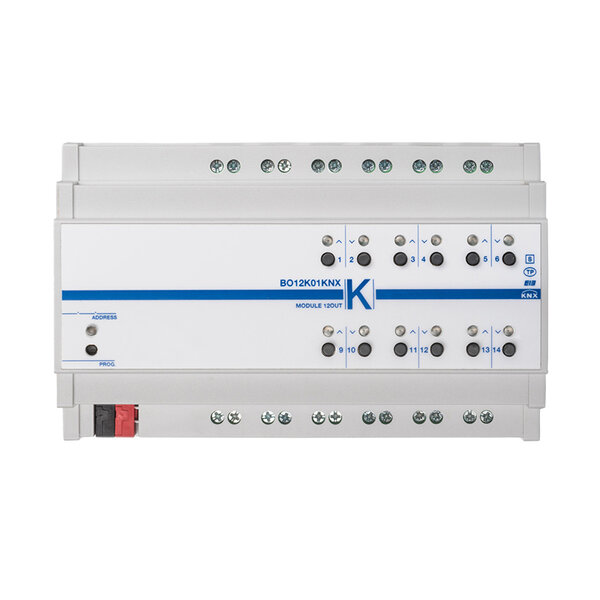

12-channel KNX DIN actuator 16A – 230 V AC
Article number: BO12K01KNX
Product Description
The Eelectron BO12K01KNX is a 12-channel KNX DIN actuator with 16A relay outputs for switching lighting, electrical loads and controlling shutters or blinds. With 8 logic blocks and an integrated KNX communication interface, this actuator offers maximum flexibility for professional building automation.
Applications
- Switching of lighting and general electrical loads
- Control of shutters, blinds and venetian blinds (pairwise configurable)
- Professional KNX home and building automation
- Hotels, offices and commercial environments
Main Features
- 12 independently configurable 16A relay outputs
- Supports lighting loads, ballast loads and motor control
- 8 logic blocks for advanced KNX automation
- Integrated KNX bus interface (21–32 V DC)
- TV-8 inrush rating (117 A) suitable for compatible LED drivers
- Fully configurable via ETS
- DIN-rail mounting (8 modules wide)
Technical Data
Power Supply and Consumption
- Powered via KNX/EIB bus: 21–32 V DC
- Current consumption: ≤ 10 mA
- Switching peak (80 ms per relay): ≤ 25 mA
Outputs
- 12 relay outputs, 16 A at 250 V AC (cosφ = 1)
- Inrush current: 117 A (TV-8)
- Max. incandescent lamp load: 5 A
- Standard ballast: max. 8 A
- Motor load: max. 3 A (1 HP)
- LED drivers: always check inrush current values
Mechanical Characteristics
- Housing: PC-GF plastic
- Width: 8 DIN modules
- Weight: approx. 400 g
Electrical Safety
- Protection rating: IP20 (EN 60529)
- SELV bus connection 21–32 V DC
- Complies with EN 63044-3 and EMC directives EN 63044-5-1 / 5-2
Important Notes
- For indoor use in dry environments only
- Not classified as C-Load — verify LED driver inrush currents
- DIN-rail mounting only (EN 50022)
- Part of the Eelectron DIN actuator series
