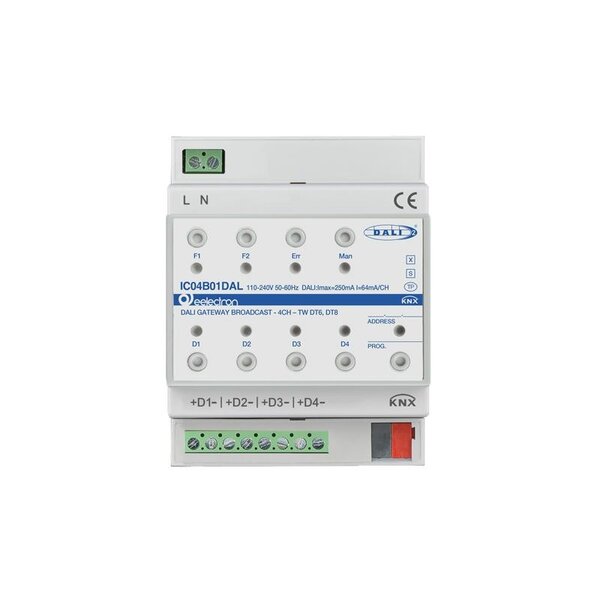

4-channel KNX DALI gateway with DT6/DT8, BC and Data Secure
€177,00 Excl. tax
€315,00 Excl. tax
€214,17 Incl. tax €381,15 Incl. tax. Out of stock, but available
€214,17 Incl. tax €381,15 Incl. tax. Out of stock, but available
4-channel DALI gateway for broadcast control of DALI1/DALI2 ballasts. Supports switching, dimming, Tunable White and DT6/DT8 colour control. Includes power supply and KNX Data Secure. Read more
Specifications
Brand:
eelectron
Article number:
IC04B01DAL
EAN:
8054144525266
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

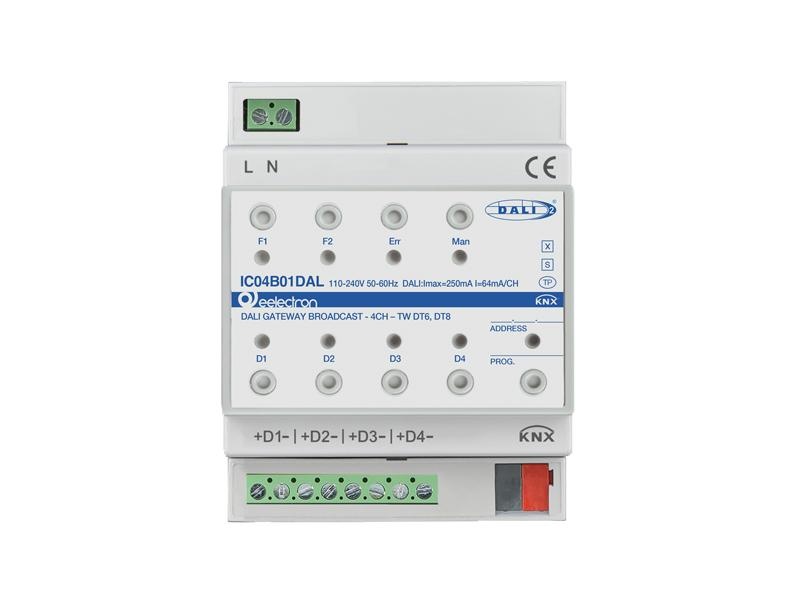

KNX DALI Gateway Broadcast – 4 Channels – Tunable White DT6, DT8, BC
Article number: IC04B01DAL
Product Description
The IC04B01DAL is a powerful 4-channel KNX DALI gateway for broadcast control of DALI1 and DALI2 lighting components. The device supports switching, dimming, Tunable White and DT6/DT8 colour control, including BC functions. Thanks to the integrated DALI power supply, no additional DALI supply units are required. The gateway provides secure communication through KNX Data Secure and is designed for reliable and efficient lighting control in professional installations.
Applications
- Building automation with KNX lighting control
- Projects using DALI1 and DALI2 lighting systems
- Broadcast control without addressing individual ECGs
- Tunable White and coloured lighting projects with DT6/DT8
- Professional lighting control in offices, schools, retail and hospitality
Main Features
- 4 independent DALI channels for broadcast control
- Supports DALI1 and DALI2 ECGs
- Up to 32 ECGs per channel (128 total)
- Tunable White and DT6/DT8 colour control (RGB, RGBW, HSV, Tc)
- BC support for colour and lighting management
- Automatic colour temperature adjustment (Dimm-to-Cold)
- Integrated DALI power supply per channel, no extra supplies needed
- KNX Data Secure for protected communication
- Timer functions for on/off delays
- Manual control via front buttons
- Status and error indication via LEDs
- Scene module with up to 16 scenes
- Operating hours counter with service alert
- Lamp and ECG fault detection per channel
Technical Data
- Power supply: 100–240 V AC/DC, 50–60 Hz
- Maximum power consumption: 8 W
- KNX voltage: 24 V SELV, approx. 5 mA
- Number of DALI outputs: 4 (single-master)
- Maximum ECGs: 32 per channel
- DALI output voltage: approx. 18 V DC, short-circuit-proof
- Housing: 4TE DIN rail, ABS V0
- Dimensions (W × H × D): 72 × 58 × 90 mm
- Mounting: 35 mm DIN rail
- Weight: 140 g
- KNX security: KNX Data Secure
Important Notes
- All connected ECGs per channel are controlled via broadcast.
- No DALI addressing or commissioning required.
- Installation must be carried out by qualified professionals.
- Do not use as a SELV circuit – DALI outputs have basic insulation.
