4-fach KNX-Tastsensor, touchsensitiv | 55×55 mm | SB40AxxKNX
€77,00 Excl. tax
€137,00 Excl. tax
€93,17 Incl. tax €165,77 Incl. tax. Out of stock, but available
€93,17 Incl. tax €165,77 Incl. tax. Out of stock, but available
Touch-sensitive 4-channel KNX touch sensor (55×55 mm) with RGB LED bar, PI room controller, rear digital/analog input and full support for switching, dimming, blinds and scenes. Read more
Specifications
Brand:
eelectron
Article number:
SB40A01KNX-PLCR
EAN:
8054144521800
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Link zur Website von eelectron
4-channel touch-sensitive KNX touch sensor – 55×55 mm
Article number: SB40AxxKNX-xxxx
Available variants

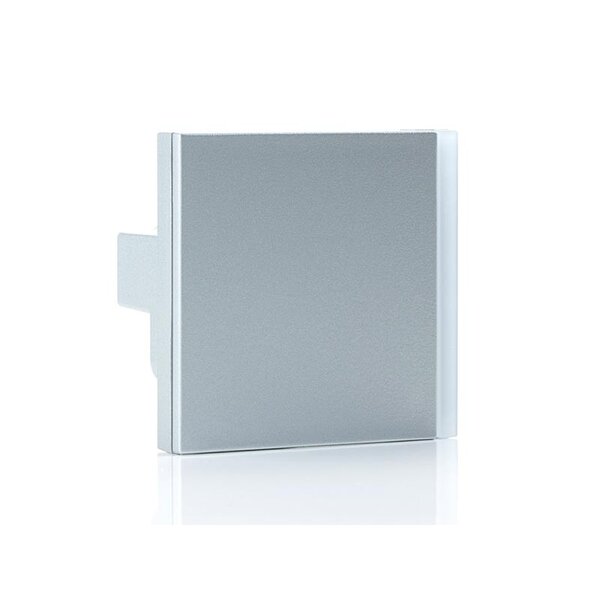

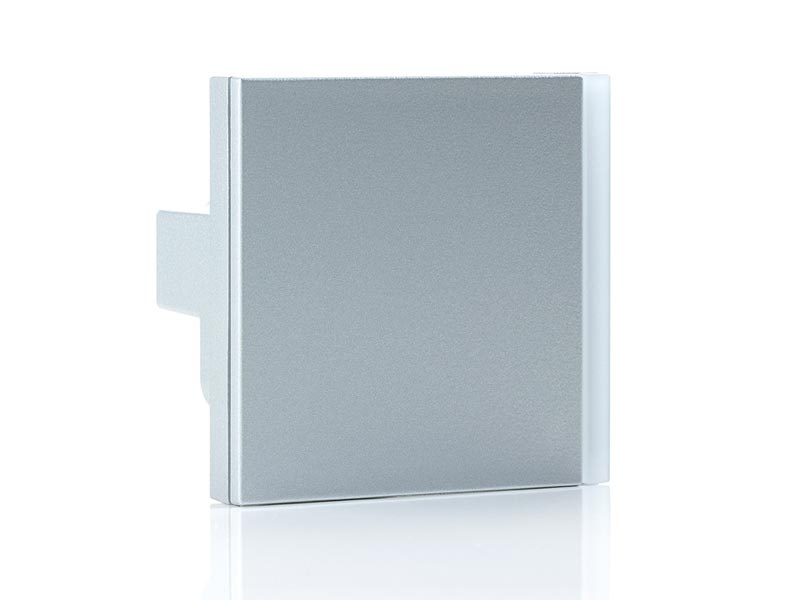

- SB40A01KNX-PLCR – Chrome plastic

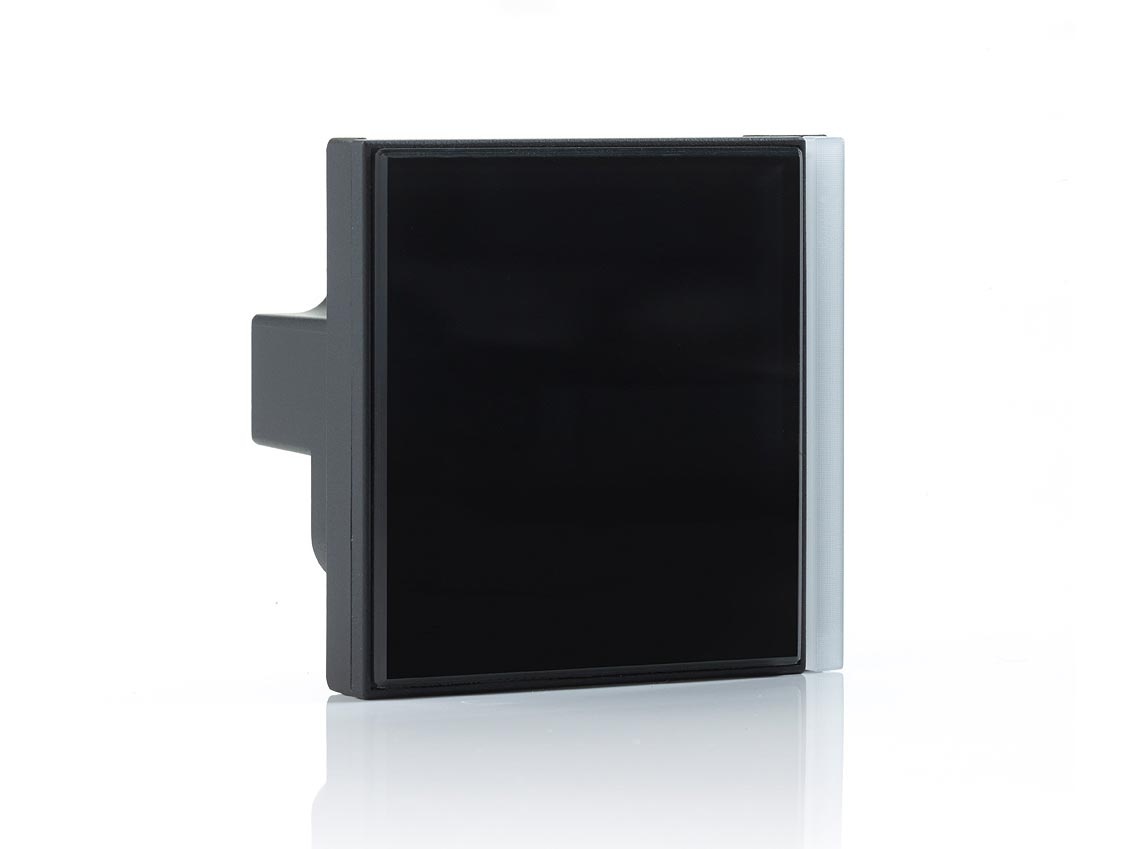

- SB40A11KNX-PLBL – Black plastic

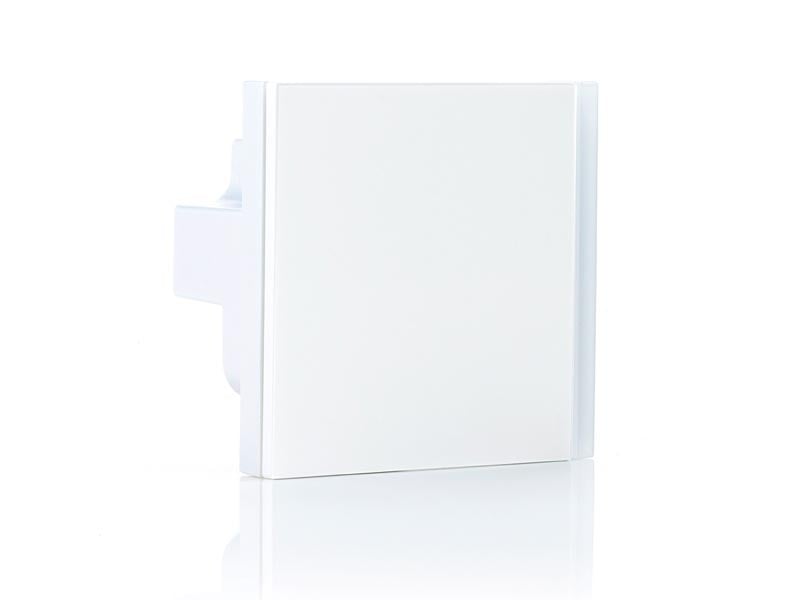

- SB40A21KNX-PLWH – White plastic

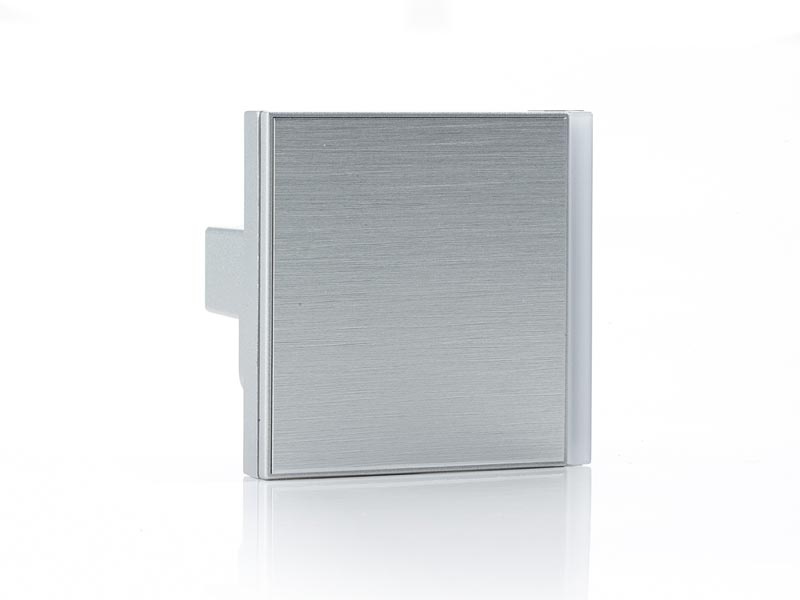

- SB40A01KNX-MT60 – Chrome aluminium

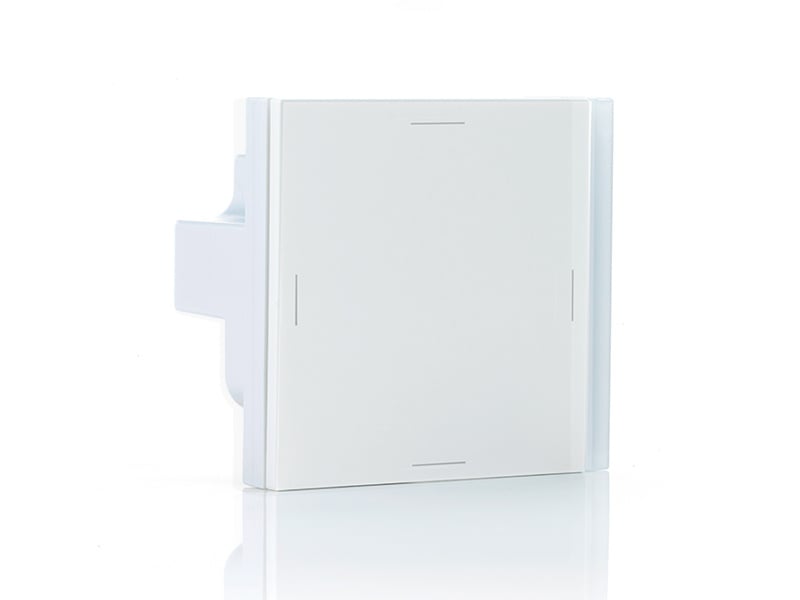

- SB40A29KNX-PLWH – White plastic (Linemarked: with subtle line markings for clearer touch orientation)

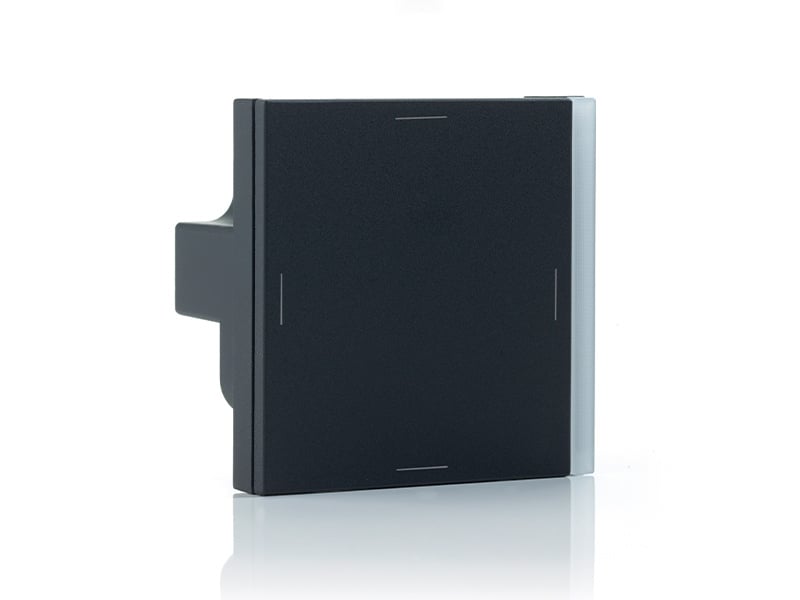

- SB40A19KNX-PLBL – Black plastic (Linemarked: with subtle line markings for clearer touch orientation)

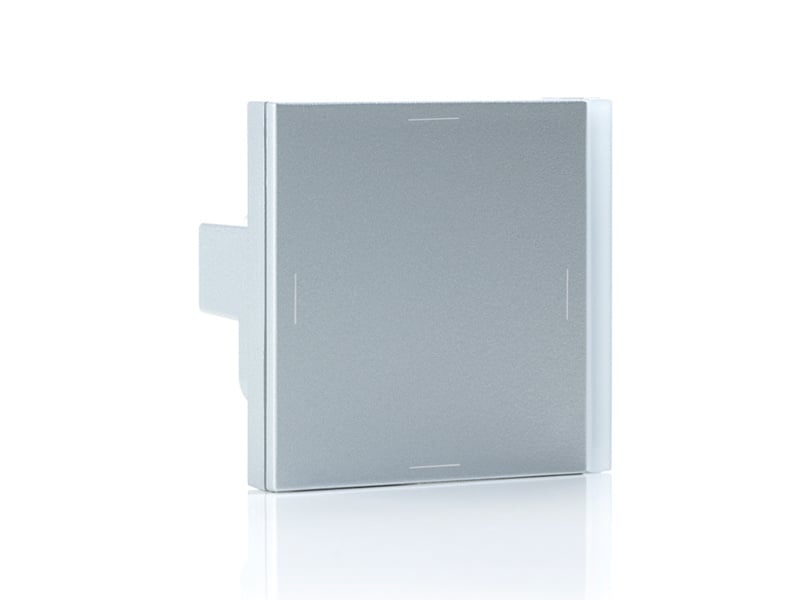

- SB40A09KNX-PLCR – Chrome plastic (Linemarked: with subtle line markings for clearer touch orientation)
Product description
The SB40AxxKNX-xxxx is a touch-sensitive 4-channel KNX touch sensor in the 55×55 mm system size. It combines modern touch operation with advanced KNX functionality such as switching, dimming, blind and shutter control, scene recall, sequences, and an integrated PI room thermostat for heating and cooling control. The RGB LED bar on the front provides clear status feedback or visualises KNX values. The rear input can be configured as a digital input or as an analogue input for NTC temperature probes.
Applications
- Lighting control: switching and dimming
- Blind, shutter and slat control
- Scene and sequence control
- Room temperature regulation (PI controller)
- Use in residential buildings, offices, hotels and smart-building environments
Main features
- Touch-sensitive KNX sensor with 4 independent channels
- RGB LED bar for status feedback or KNX value visualisation
- Integrated PI room controller for heating and cooling
- Rear input configurable as digital input or analogue NTC input
- Supports scenes, sequences (3 objects) and blind control
- Compatible with British Box, German Box and Italian 2-module wall boxes
- Integrated KNX communication interface
Technical data
Power supply
- Via KNX/EIB bus: 21…32 V DC
- Current consumption: < 10 mA
Rear input
- Digital mode: for potential-free contacts, max. cable length 10 m (twisted)
- Analogue (NTC): compatible with TS01A01ACC and TS01B01ACC, max. cable length 20 m
- Internal scan voltage: 3.3 V DC
Mechanical data
- Dimensions: 55 × 55 × 37 mm (W × H × D)
- Housing material: PC-ABS plastic
- Weight: approx. 50 g (with glass)
Electrical safety
- Protection class: IP20 (EN 60529)
- Bus voltage: SELV DC 21…31 V
- Complies with EN 50491-3 and Low Voltage Directive 2014/35/EU
EMC
- Complies with EN 50491-5-1 and EN 50491-5-2
- Meets EMC Directive 2014/30/EU
Environmental specifications
- Operating temperature: –5…+45 °C
- Storage temperature: –20…+55 °C
- Relative humidity: max. 90% (non-condensing)
- Installation environment: indoor, dry areas
Compatible temperature probes
- TS01A01ACC: –20…+100 °C, black cable and NTC element
- TS01B01ACC: –50…+60 °C, white cable and NTC element
Important notes
- Delivered without cover frame.
- NTC temperature probe not included.
- Full configuration via ETS application program (see eelectron.com).
- Supports up to 120 group addresses and 160 associations.
