OL-U KNX Touch Panel 4.3″ – Glass Edition (white/black)
€410,00 Excl. tax
€683,00 Excl. tax
€496,10 Incl. tax €826,43 Incl. tax. Out of stock, but available
€496,10 Incl. tax €826,43 Incl. tax. Out of stock, but available
Advanced 4.3″ KNX touch panel with glass finish, 96 functions, thermostats, schedules, alarm monitoring, temperature sensor, KNX Data Secure and IP connectivity for smartphone and tablet control. Read more
Specifications
Brand:
eelectron
Article number:
TP43M11KNX-1
EAN:
8054144522999
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Link zur Website von eelectron (Englisch)
OL-U KNX Touch Panel 4.3″ – Capacitive Control Interface
Article number: TP43M11KNX-1 / TP43M11KNX-3
Product Description

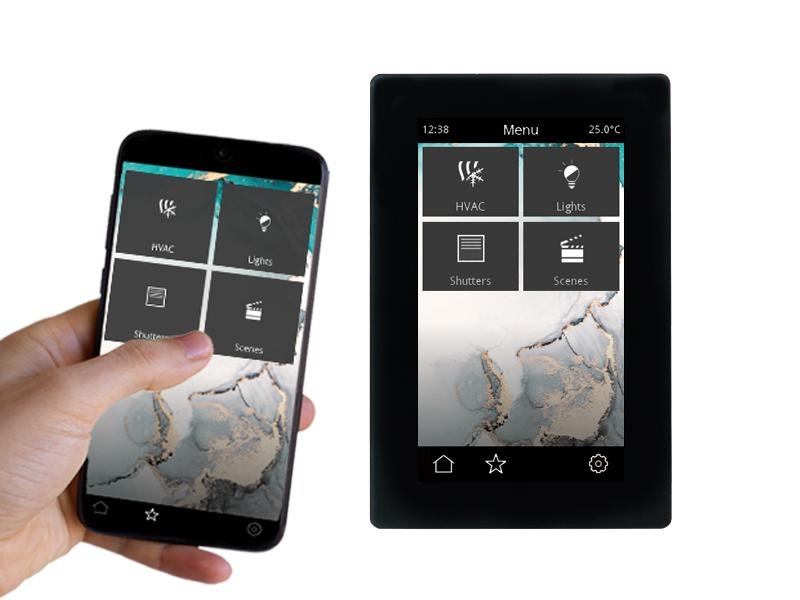

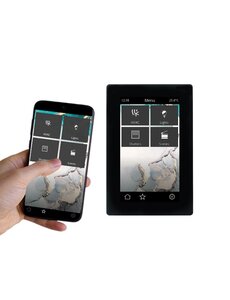

The TP43M11KNX touch panel is an advanced 4.3″ KNX room controller with a capacitive multi-touch display for visualisation and control of KNX installations. Users can manage functions, scenes, time schedules, alarms and temperature control through an intuitive interface. The device also supports IP connectivity for smartphone and tablet control via the eTouch App.

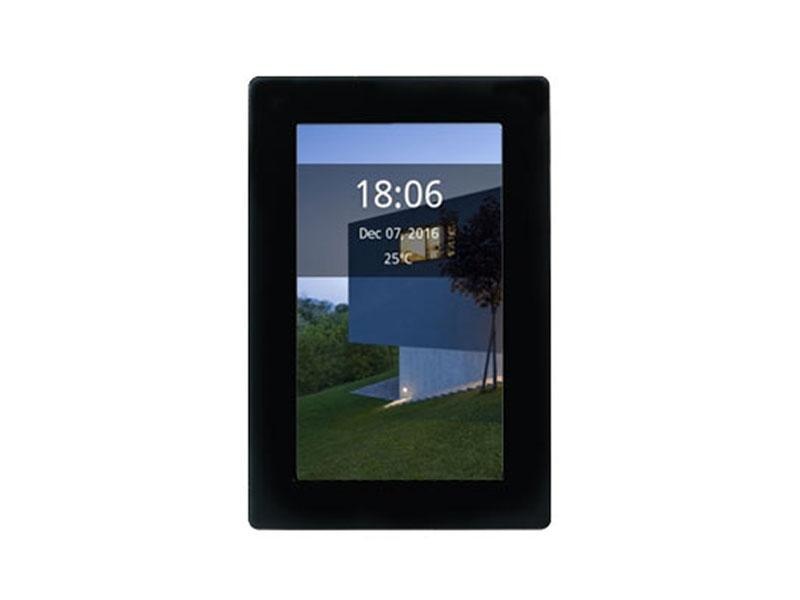

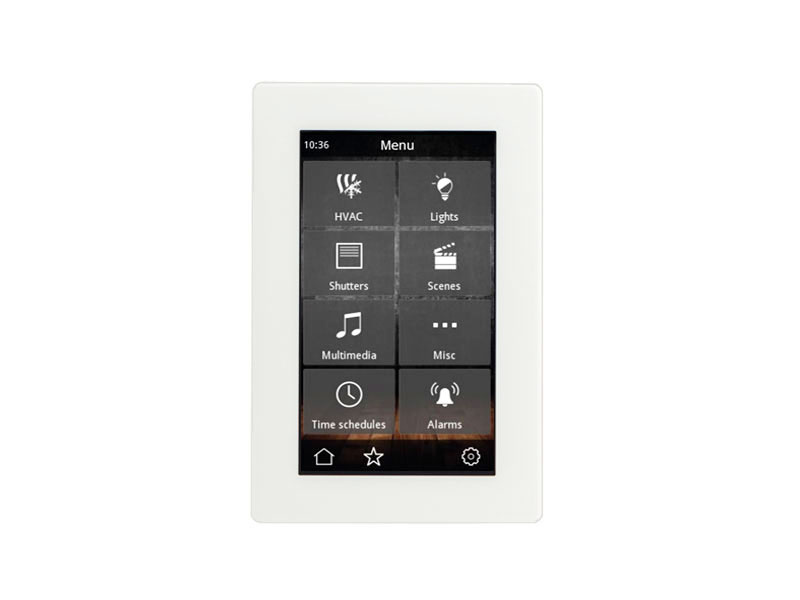

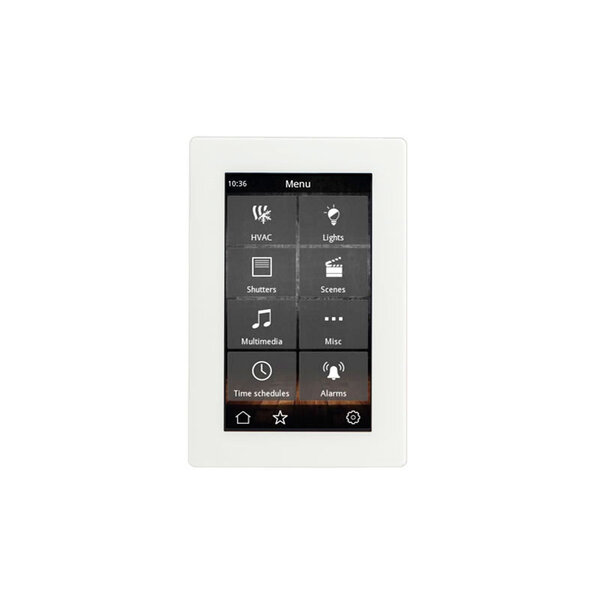

The panel is available in White and Black and can be mounted in portrait or landscape orientation. With integrated thermostats, multifunction inputs and extensive logic functions, this touch panel is ideal for residential and commercial building automation.
Technical Data
- Display: 4.3″ TFT, 272 × 480 pixels, 16.7 million colours
- Touchscreen: capacitive multi-touch
- Control functions: up to 96 functions across 12 configurable pages
- Favorites page: user-customisable
- Background images: uploadable / configurable
- Time schedules: 96 channels, 4 programs per channel
- Alarm monitoring: up to 96 alarms with event log
- Scenes: integrated scene controller
- Thermostats: 2 independent thermostats
- Sensor: integrated temperature sensor
- Inputs: 4 multifunction inputs (binary or external temperature probe)
- RTC: real-time clock with backup battery
- KNX: integrated KNX TP1 bus coupling unit
- Ethernet: RJ45 interface (10/100/1000 Mbps)
- Bus consumption: typically 5 mA @ 29 V DC
- External power: 12–30 V DC (max. 2.8 W)
- Housing material: ABS, flame retardant V0
- Protection class: IP20
- Dimensions: 122.4 × 81.2 × 31.7 mm (without connectors)
- Mounting: for standard 2- or 3-module wall boxes
- Installation environment: indoor, dry areas
Available Variants
- TP43M11KNX-1 – White
- TP43M11KNX-3 – Black
Important Notice
⚠ INSTALLATION WARNING:
If a clear separation between SELV (KNX bus) and 230 V wiring cannot be ensured, a minimum distance of 4 mm must be maintained. The device must never be connected to 230 V. Installation must be carried out exclusively by a certified KNX installer.
⚠ IMPORTANT:
This touch panel is supplied without a wall box and without mounting accessories. All required accessories must be ordered separately.
If a clear separation between SELV (KNX bus) and 230 V wiring cannot be ensured, a minimum distance of 4 mm must be maintained. The device must never be connected to 230 V. Installation must be carried out exclusively by a certified KNX installer.
⚠ IMPORTANT:
This touch panel is supplied without a wall box and without mounting accessories. All required accessories must be ordered separately.
Accessories (sold separately)
- TP43I01ACC – Wall-mount box for solid walls
- TP43I02ACC – Wall-mount box for plasterboard/hollow walls
- TP43I03ACC – Flush-mounting adapter
- TP43I04ACC – RJ45 adapter
- TS01I01ACC – External temperature probe
Delivery Contents
- TP43M11KNX touch panel (selected colour)
- KNX bus connector
- Mounting chassis
- User documentation
