KNX Server homeLYnk | Wiser for KNX – Logic & Visualization
€1.067,29 Excl. tax
€1.491,00 Excl. tax
€1.291,42 Incl. tax €1.804,11 Incl. tax. Out of stock, but available
€1.291,42 Incl. tax €1.804,11 Incl. tax. Out of stock, but available
Wiser for KNX logic controller with visualization, logic, timers, KNX IP router, Modbus gateway, datalogging, alarms, voice control, and IoT integrations. Read more
Specifications
Brand:
Schneider Eelectric
Article number:
LSS100100
EAN:
3606480595998
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

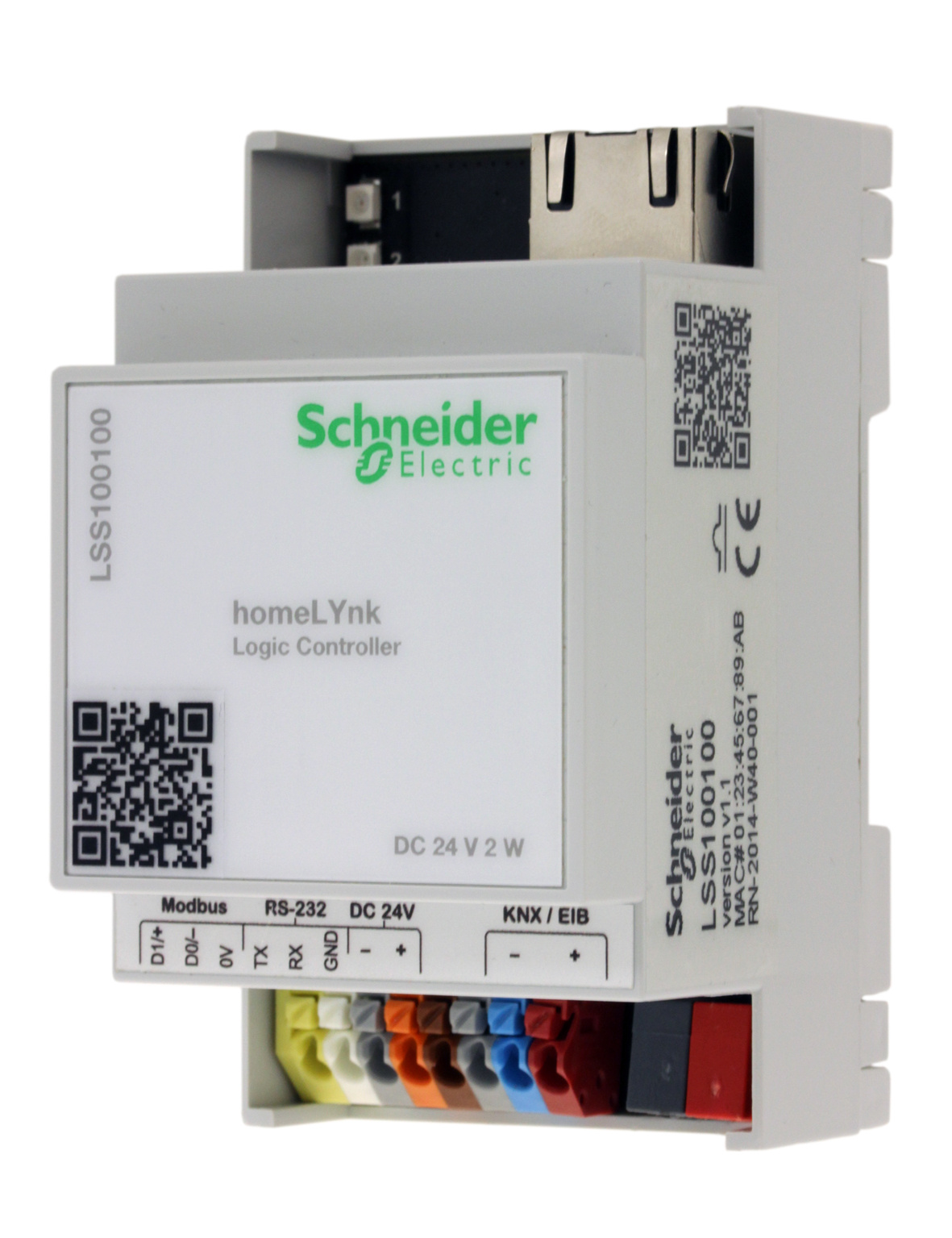

Wiser for KNX – homeLYnk Logic Controller (LSS100100)
The Wiser for KNX (formerly homeLYnk) is a powerful logic controller and web-based visualisation server for KNX and Modbus networks. Quickly create a customised visualisation for PC, smartphone and tablet, implement extensive logic functions, scenes, (astro) time schedules, and control KNX, Modbus and BACnet with ease. Also functions as a KNX IP router (Secure), programming interface for ETS3/4/5, data logger and gateway to various IoT/protocols.
Applications
- WEB-SCADA visualisation for residential and commercial buildings (PC, smartphone, tablet, touch panel).

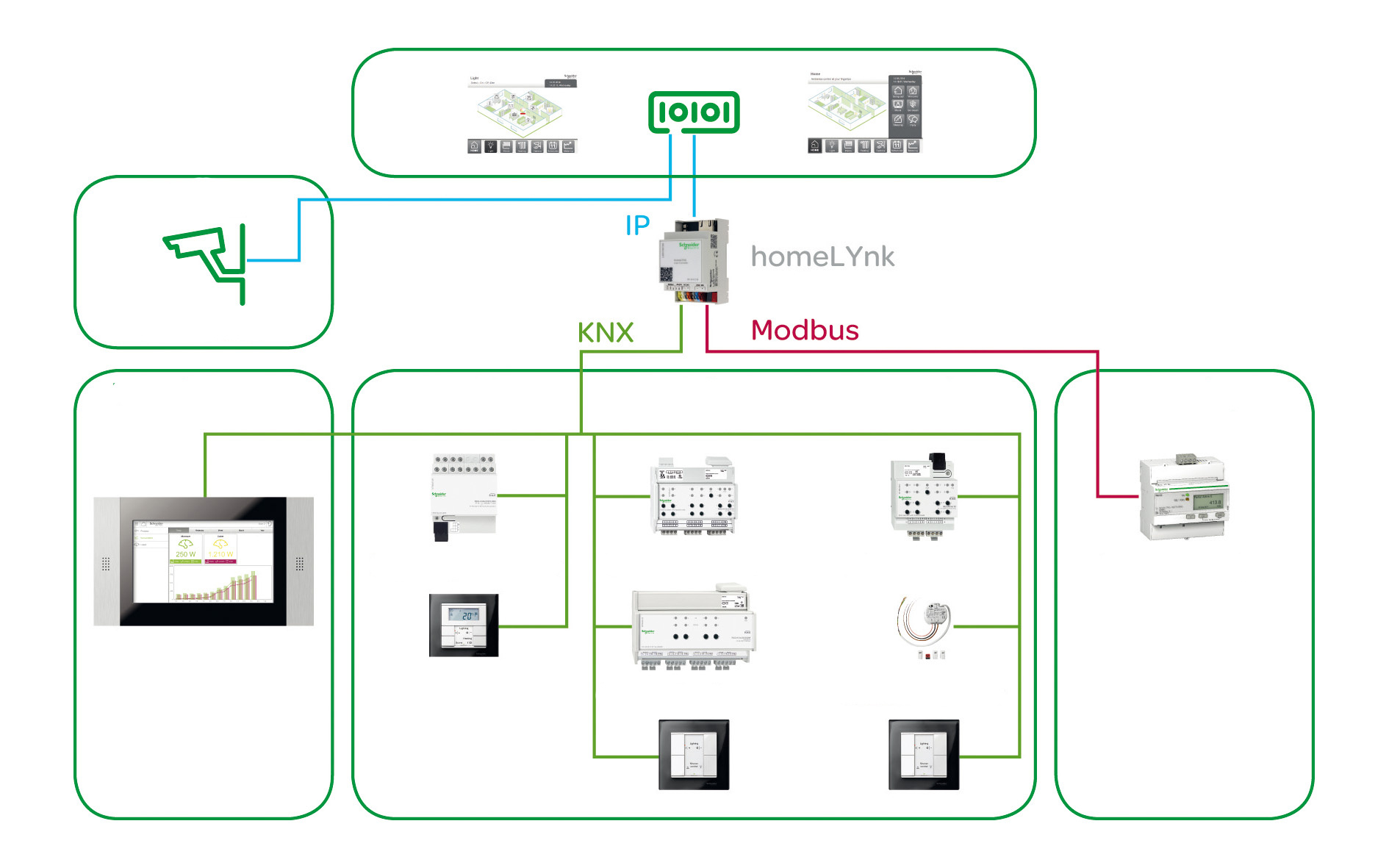

- Cross-standard gateway between KNX & Modbus RTU/TCP and BACnet (Server, B-ASC).
- Data aggregation & logging (trends, CSV export), energy monitoring and dashboards.
- Event control with email/SMS alarms and popup notifications.
- Programming interface for ETS and KNX IP routing (with Secure).
Main Features

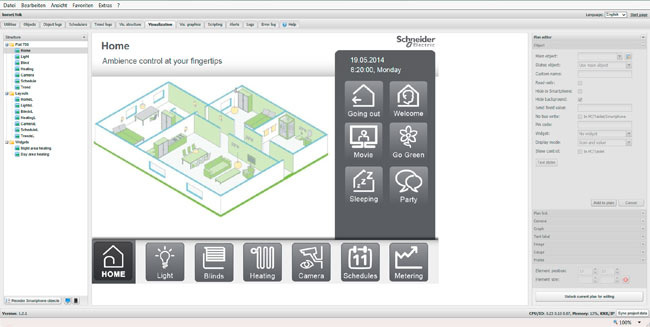

- Visualisation: fully customisable web interface (fullscreen on iOS/Android/PC), automatic button visualisation.
- Logic & Scenes: block programming, weekly & holiday schedules, astro clock.
- Data logging & Metering: charts, energy monitor, smart metering via P1, CSV export.
- Media & IoT: camera image display; gateways to Philips Hue, Sonos, Revox, etc.
- Colour control: 2-byte colour temperature and RGB control.
- Voice control & HomeKit: Apple HomeKit compatible (with appropriate integrations).
- User management: up to 8 users with individual login/password.
Protocols & Integrations
- KNX: TP-UART2, KNX IP router (Secure), ETS3/4/5 programming interface, line coupler.
- Modbus: RTU & TCP (RTU up to 10 devices).
- BACnet: Server (up to 150 data points, B-ASC certified).
- Others: HTTP, FTP, XML, CSV, TCP, UDP, SIP, RS-485, RS-232, IP, DMX, USB.
Technical Data
| Power Supply & Consumption | |
|---|---|
| Rated voltage | 24 V DC |
| Power consumption | approx. 2 W |
| Indicators & Controls | |
| LED indicators | Green (CPU load), green/red (KNX operation/reset) |
| Control | RESET button |

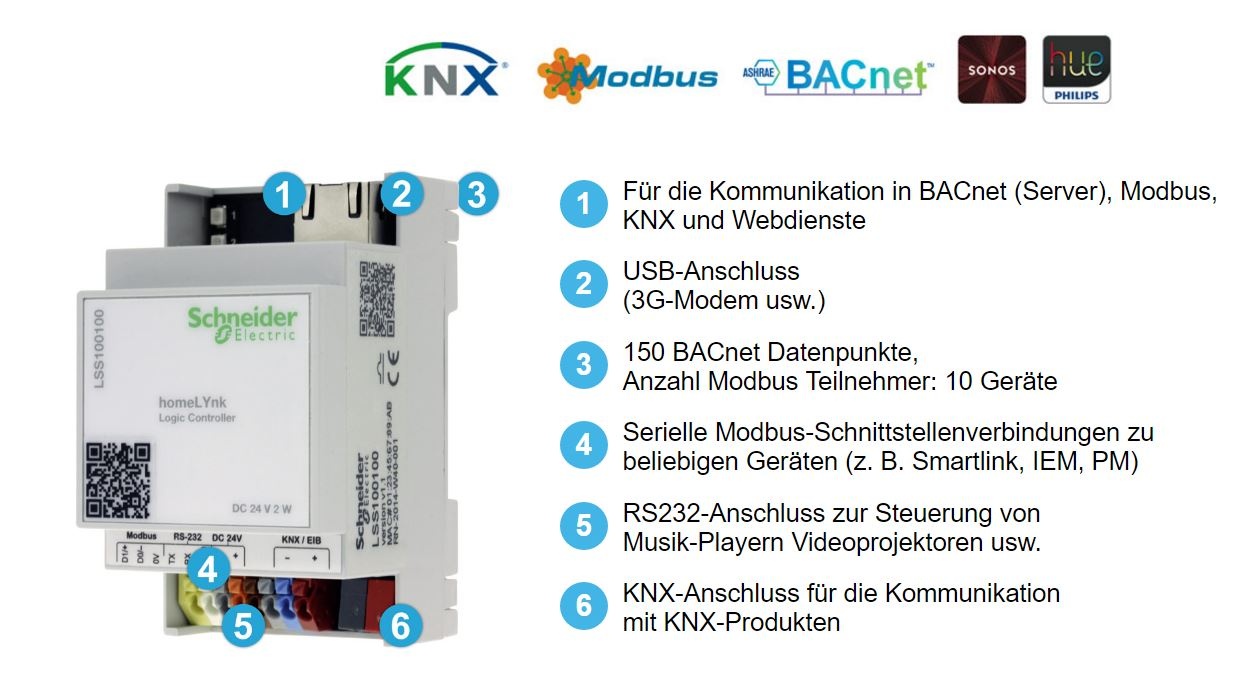

| Interfaces & Connections | |
| Ethernet | 1× RJ45, 10BASE-T/100BASE-TX (TCP/IP) |
| Serial | 1× RS-485 (with 47 kΩ bias resistors, no termination), 1× RS-232 |
| USB | 1× USB 2.0 |
| KNX | 1× TP-UART2; bus terminal 2× 0.8 mm² |
| Power terminal | 0.5…1.5 mm²; serial terminal 0.5…1.5 mm² |
| Mechanical | |
| Mounting | DIN rail (REG) |
| Dimensions (H×W×D) | 90 × 52 × 58 mm |
| Width | 3 modules (≈ 54 mm) |
| IP rating | IP20 |
| Environment | |
| Operating temperature | −5…+45 °C |
| Operating altitude | 0…2000 m above MSL |
| Relative humidity | 0…93 % (non-condensing) |
| Standards & Compliance | |
| Safety/EMC | IEC 60950-1 |
| Identification & Logistics | |
| Part number | LSS100100 |
| EAN | 3606480595998 |
| Package unit | PCE (1 piece); BB1 (10 pcs); S03 (40 pcs) |
| Package 1 (PCE) | H 6.0 cm × W 7.0 cm × L 9.3 cm; weight ~127 g |
| Package 2 (BB1) | H 7.4 cm × W 19.7 cm × L 34.6 cm; weight ~1.389 kg |
| Package 3 (S03) | H 30 cm × W 30 cm × L 40 cm; weight ~6.066 kg |
Scope of Delivery
- Wiser for KNX – homeLYnk Logic Controller
- Terminals and documentation
Compatibility & Tools
- Programming via ETS3/ETS4/ETS5 (KNX programming mode & IP tunnelling).
- Automatic visualisation creation via EConfigure KNX Lite (LSS900100).
- Use as line coupler and KNX IP router (Secure).
Important Notes
- Modbus RTU supports up to 10 devices; BACnet supports up to 150 data points.
- Installation and commissioning only by qualified electricians and KNX professionals.
- Proper operation requires appropriate ETS configuration, group addresses and network security (KNX Secure/IP).
- Functions and compatibility may change with firmware/software updates; always refer to the latest Schneider Electric documentation.
- This product replaces MTN6503-0201.
Brand: Schneider Electric • Product family: EcoStruxure™ • Model: Wiser for KNX (homeLYnk)
