sensIQ S V3.1 | Wall Motion Detector
€122,67 Excl. tax
€224,80 Excl. tax
€148,43 Incl. tax €272,01 Incl. tax. Out of stock, but available
€148,43 Incl. tax €272,01 Incl. tax. Out of stock, but available
Elegant Steinel sensIQ S motion detector with 4 pyro sensors, 300° detection angle and 20 m range. For indoor/outdoor wall mounting, incl. remote control and KNX integration. Read more
Specifications
Brand:
STEINEL
Article number:
059613
EAN:
4007841059613
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
sensIQ S
Motion Detector – Professional Line
Art.no.: 059613 (white), 059606 (black), 059583 (anthracite)
Description
The STEINEL sensIQ S is a professional KNX motion detector for indoor and outdoor use, ideal for entrances, loading bays and facades. The 4-fold PIR sensor system monitors in 3 × 100° segments (total 300°) with a tangential range of up to 20 m and precise range adjustment per direction (2–20 m). The detector is designed for wall and corner mounting up to 5 m in height, is KNX-compatible and comes with a remote control and corner wall bracket. Available in white, black and anthracite (RAL 7016).
Applications
- Building entrances, access areas and loading bays
- Around the house, garden & driveway
- Warehouses, car parks and covered areas
Main Features

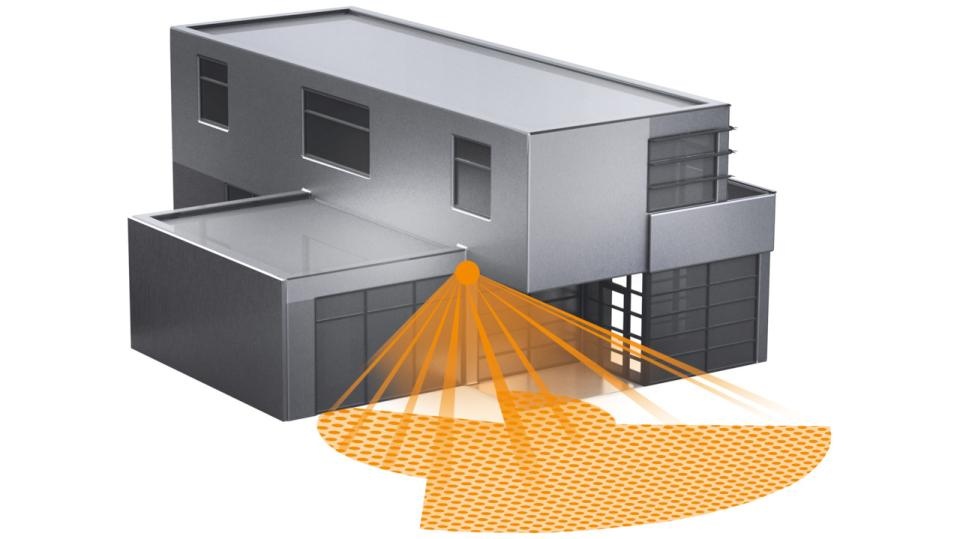

- Detection: 4-fold PIR system, 3 × 100° segments, total detection angle 300°, anti-creep protection
- Range: tangential r = 20 m (≈ 1,047 m²), radial r = 4 m (≈ 42 m²); adjustable per segment mechanically
- Mounting height: ideal 2–5 m (max. 5 m); optimal detection at approx. 2 m
- KNX functions: 2× light output, presence output, brightness value, constant light control, basic light function, twilight switch, sensor settings, separate pyro measurement, logic functions
- Settings: via ETS software, bus, Smart Remote and supplied remote control
- Twilight setting: 2–1000 lx with teach function
- Time setting: 60 s – 15 min
- Basic/primary light: basic light function and primary light adjustable 0–100%
- Teach mode and energy-saving design
- Networking: master/master and master/slave via KNX bus
Technical Data
| Application | Indoor and outdoor |
|---|---|
| Mounting | Wall and corner (corner wall bracket included) |
| Dimensions (L × W × H) | 128 × 114 × 74 mm |
| Weight (net) | ≈ 0.232 kg |
| Sensor technology | Passive infrared (PIR), 4-fold |
| Detection angle | 300° (3 × 100° segments) |
| Opening angle | 180° |
| Range (tangential) | r = 20 m (≈ 1,047 m²) |
| Range (radial) | r = 4 m (≈ 42 m²) |

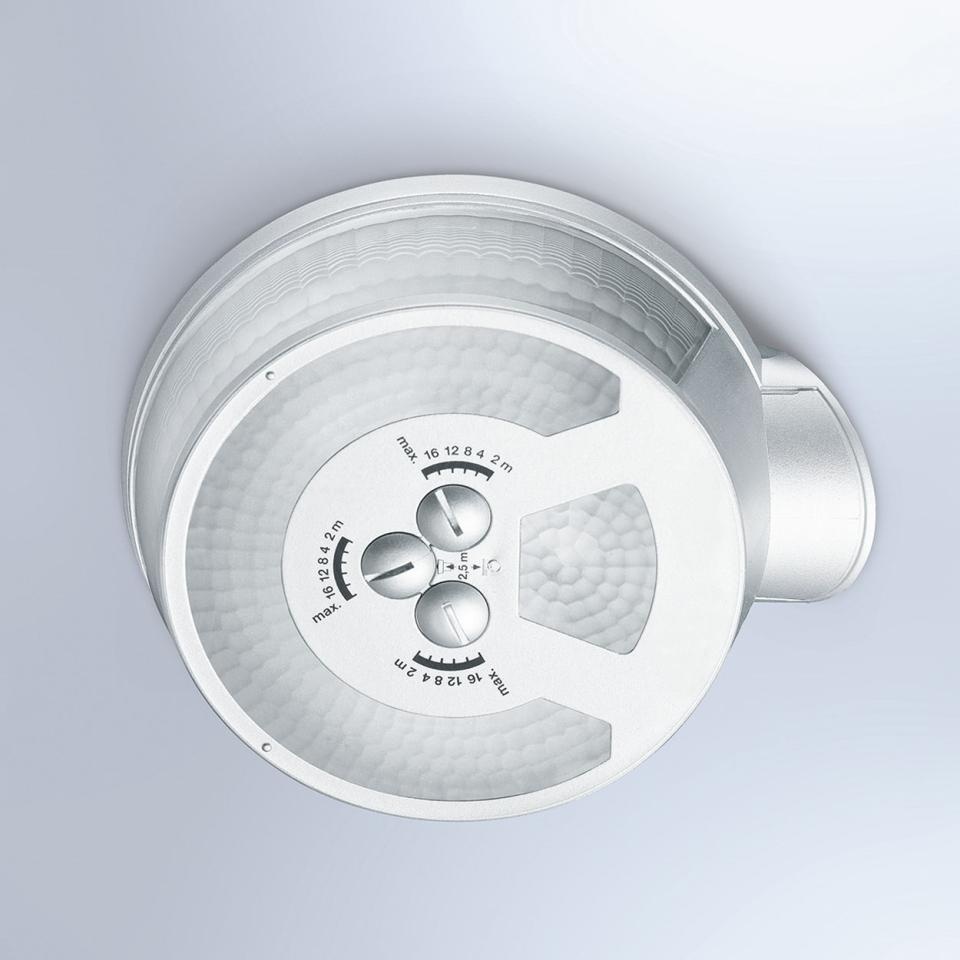

| Range adjustment | Mechanically adjustable per direction/segment (2–20 m) |
| Mounting height | 2 – 5 m (max. 5 m), optimal ≈ 2 m |
| Anti-creep protection | Yes |
| Twilight setting | 2 – 1000 lx, teach function |
| Time setting | 60 s – 15 min |
| Basic light function | Yes |
| Primary light | Adjustable 0 – 100% |
| Ambient temperature | −20 … +50 °C |
| Protection class | IP54 |
| Housing material | Plastic |

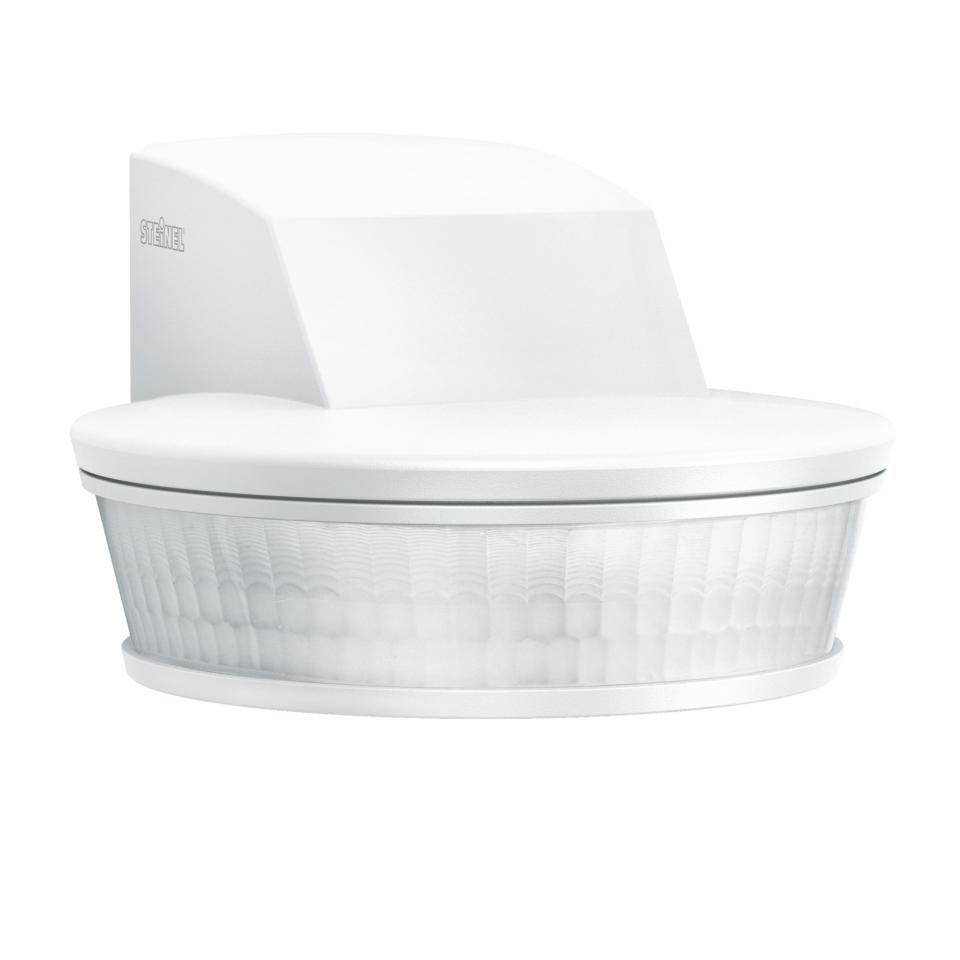

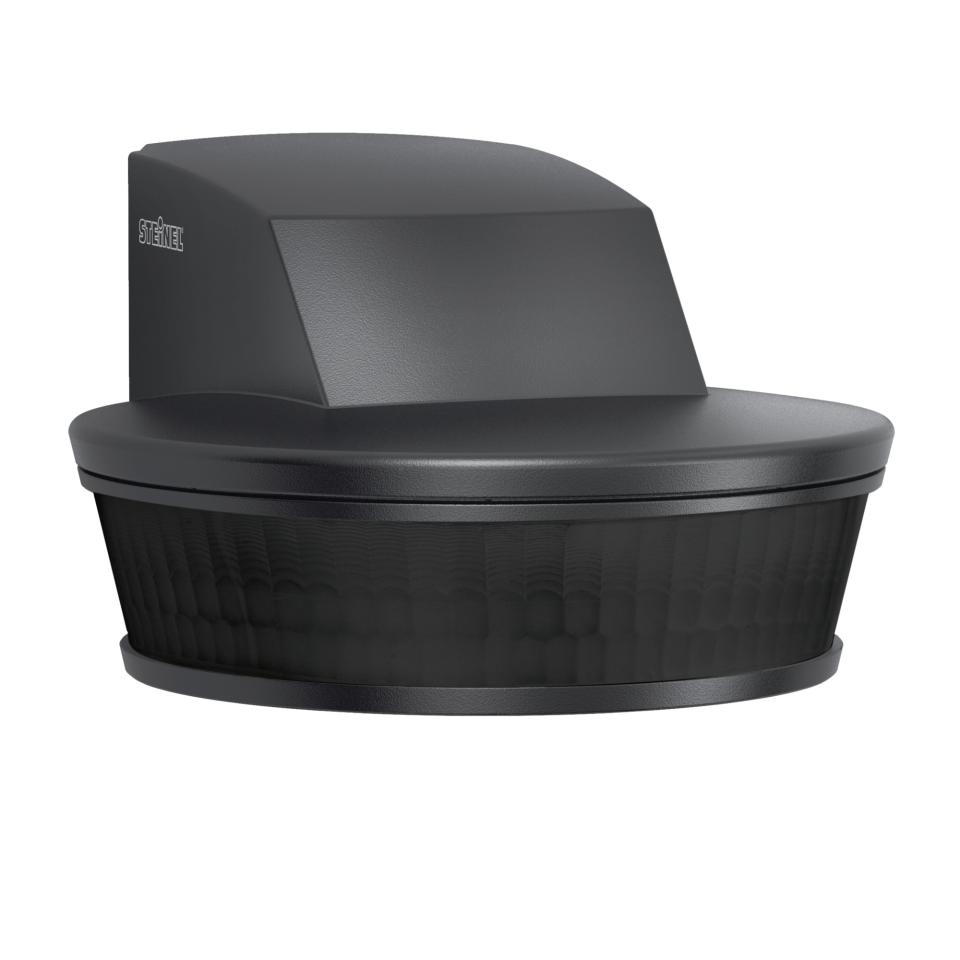

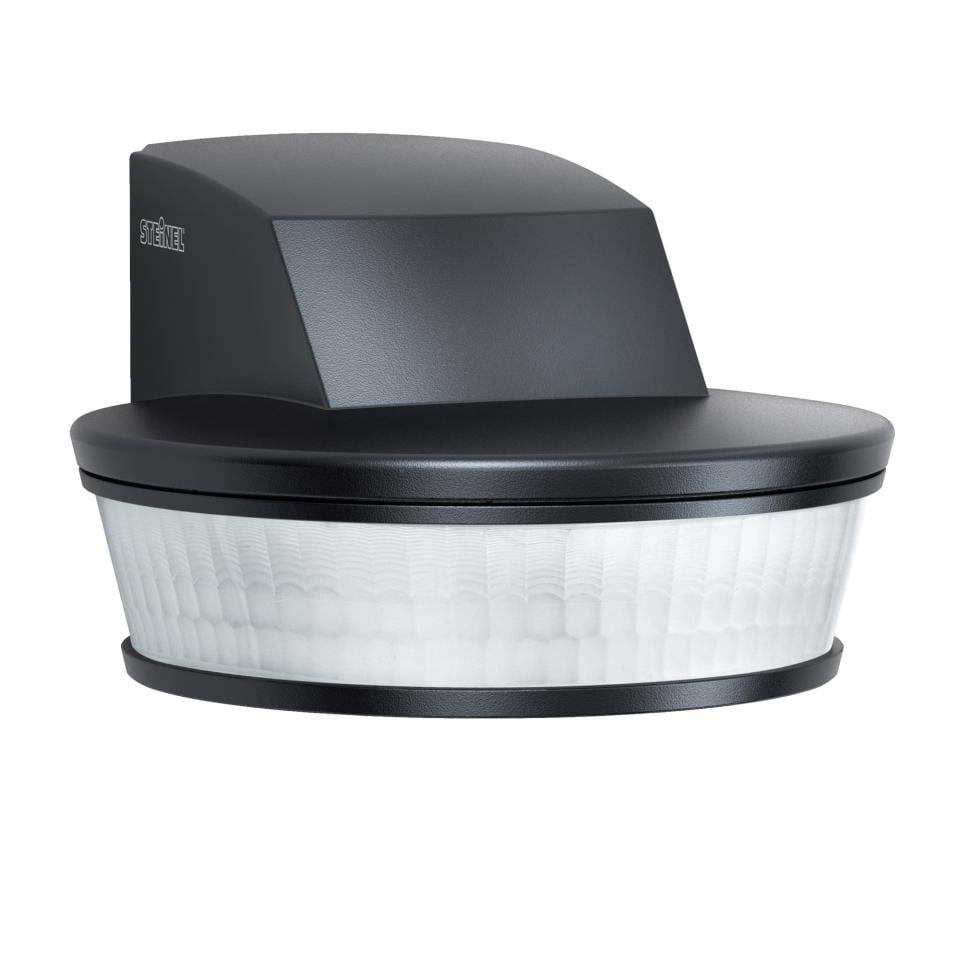

| Colour options | White, Black, Anthracite (RAL 7016) |
| With remote control | Yes (included); supports Smart Remote |
| KNX bus | Yes, medium TP 256; KNX Secure: no |
| KNX current consumption | approx. 10 mA |
| Networking | Master/Master, Master/Slave via KNX bus |
| Configuration | ETS software, bus, remote control |
| Product category | Motion detector (Professional Line) |
Important Notes
- KNX configuration via ETS is required to activate and parameterise functions (e.g. constant light control, logic and objects).
- The specified ranges apply to tangential moving objects; actual performance depends on mounting height, orientation and environmental conditions.
- Mount preferably at 2–5 m height, free from heat sources, reflections and distracting background movements.
- Protection class IP54: suitable for outdoor use, but not for immersion or high-pressure cleaning.
- KNX Secure is not supported; apply appropriate network security measures according to your KNX design and policy.
