SME 2 S KNX | 2-ch 1–10 V control, MIX extension module

Name: Theben SME 2 S KNX | 2-ch 1–10 V control, MIX extension module
Brand: Theben
Price: 128.50 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€128,50 Excl. tax €223,49 Excl. tax
€155,49 Incl. tax €270,42 Incl. tax. Out of stock, but available

Unit price: €128,50 / Piece

2-channel 1–10 V control unit for switching and dimming lights. MIX extension module, expandable up to 6 channels. Use only with a MIX base module. Read more

Specifications

Brand:

Theben

Article number:

4910274

EAN:

4003468491744

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Theben website

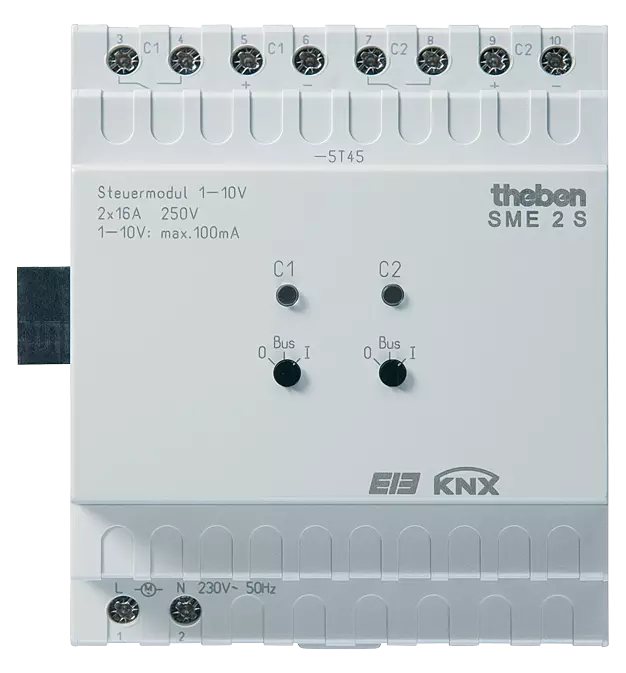

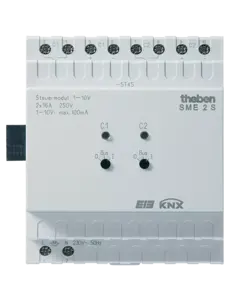

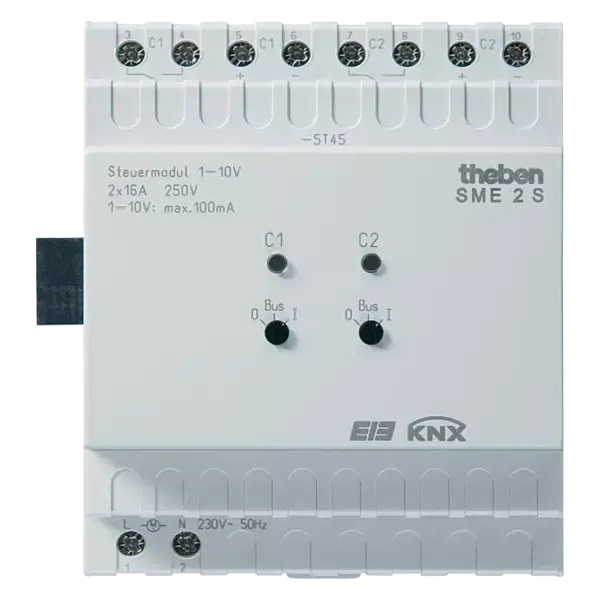

SME 2 S KNX – 2-channel 1–10 V control unit, MIX extension module

Item number: 4910274

Application

The Theben SME 2 S KNX is a 2-channel 1–10 V control unit for switching and dimming lighting in KNX installations. This device is an extension module within the modular MIX system and requires a MIX base module for operation. It is suitable for residential and commercial applications and can be combined with other MIX modules to enable flexible and scalable lighting control.

Functions

2-channel 1–10 V control for lighting with EVG and LED drivers
Extension module within the MIX system, requires a MIX base module
Expandable to max. 6 channels by connecting up to 2 extension modules
Compatible with all MIX modules: switching, dimming, blind and heating control as well as binary inputs
1–10 V control inputs and volt-free relay outputs per channel
Manual control via switch: ON/OFF/BUS (even without bus voltage)
LED status display for each channel
Zero-cross switching to protect the relay contacts

Technical specifications

Operating voltage: 230 V AC, 50 Hz
Frequency: 50 Hz
Standby consumption: 1.6 W
Max. power loss: 2.4 W
Mounting: DIN rail
Width: 4 modules
Connection type: Screw terminals
Max. cable cross-section solid: 0.5 mm² (Ø 0.8) to 6 mm²
Max. cable cross-section with ferrule: 0.5 mm² to 4 mm²
Number of channels: 2
Contact type: Normally open, 16 A, 10 A
Contact gap: < 3 mm
Switching output: Volt-free
Output voltage: 230 V AC
Output frequency: 50 Hz
Inrush current: 400 A (150 µs), 200 A (600 µs)
Resistive load: 3680 W
Incandescent/halogen lamp load: 2500 W
Capacitive load: 140 µF
Input voltage: 1–10 V
Max. input signal current: 100 mA
Signal duration: Continuous
Max. cable length: 500 m
Ambient temperature: -5 °C to +45 °C
Protection class: IP 20
Protection rating: II according to EN 60 730-1

Important note: This module is an extension module of the MIX system and can only be used in combination with a MIX base module. The SME 2 S KNX does not operate independently.
