Surface Box LUXA 103-200 – for theMura and LUXA 103-200
€12,13 Excl. tax
€21,09 Excl. tax
€14,68 Incl. tax €25,52 Incl. tax. Out of stock, but available
€14,68 Incl. tax €25,52 Incl. tax. Out of stock, but available
Surface box for installing theMura and LUXA 103-200 presence or motion detectors. Ensures neat and simple surface mounting on wall or ceiling. Read more
Specifications
Brand:
Theben
Article number:
9070504
EAN:
4003468904367
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

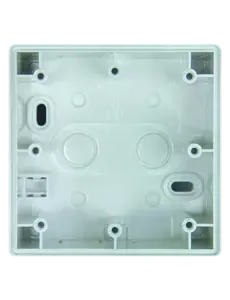

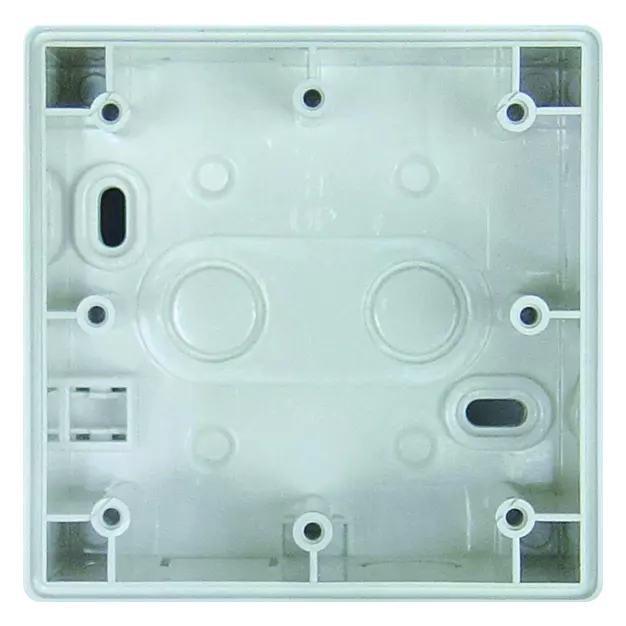

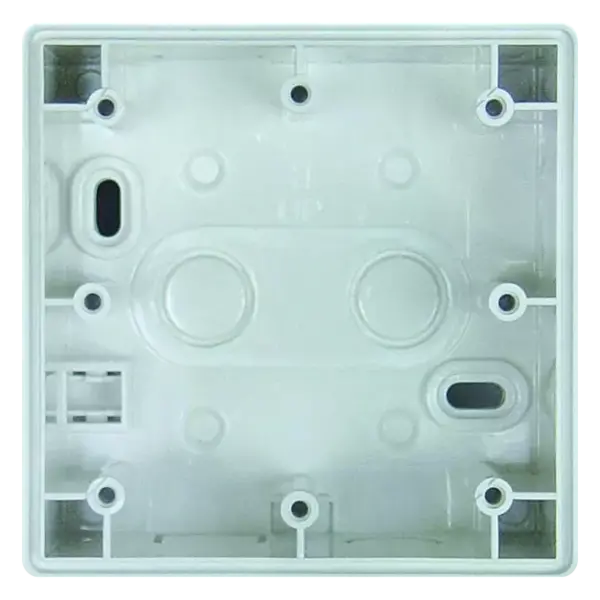

Surface Box LUXA 103-200
Art. no.: 9070504
Surface frame for theMura and LUXA 103-200 detectors
Application
The LUXA 103-200 surface box is specially designed for neat and easy surface mounting of theMura and LUXA 103-200 presence or motion detectors. This frame enables solid installation on a wall or ceiling, ideal for areas where flush mounting is not possible or desired. Suitable for offices, corridors, stairwells, warehouses, and general spaces.
Main Features
- Suitable for theMura and LUXA 103-200 presence and motion detectors
- Surface mounting on wall or ceiling
- Easy and quick installation
- Stable and robust housing
- Sleek and discreet design
- Made from high-quality, impact-resistant plastic
- Protects the detector housing from dust and damage
- Solution for mounting on solid surfaces or in renovation projects
- Colour: white (RAL 9010)
Technical Specifications
| Material | Impact-resistant plastic (ABS) |
|---|---|
| Colour | White (RAL 9010) |
| Dimensions (L x W x H) | approx. 120 x 120 x 50 mm |
| Weight | approx. 150 g |
| Mounting method | Surface mounting on wall or ceiling (screw fixation) |
| Protection class | IP20 (indoor use only) |
| Suitable for | theMura and LUXA 103-200 detectors |
| Temperature range | -5 °C to +45 °C |
| Permissible humidity | max. 85% (non-condensing) |
| EAN code | 4003468904367 |
Important Notes
- Only suitable for indoor use and dry rooms.
- Not suitable for direct outdoor use or in damp areas without additional protection.
- Always check compatibility with the relevant detector model before installation.
- For installation and mounting instructions, always refer to the official Theben manual.
- For the datasheet overview, see the related products section of e.g. this product.
- For more information and warranty conditions, see: www.theben.de/en/guarantee
