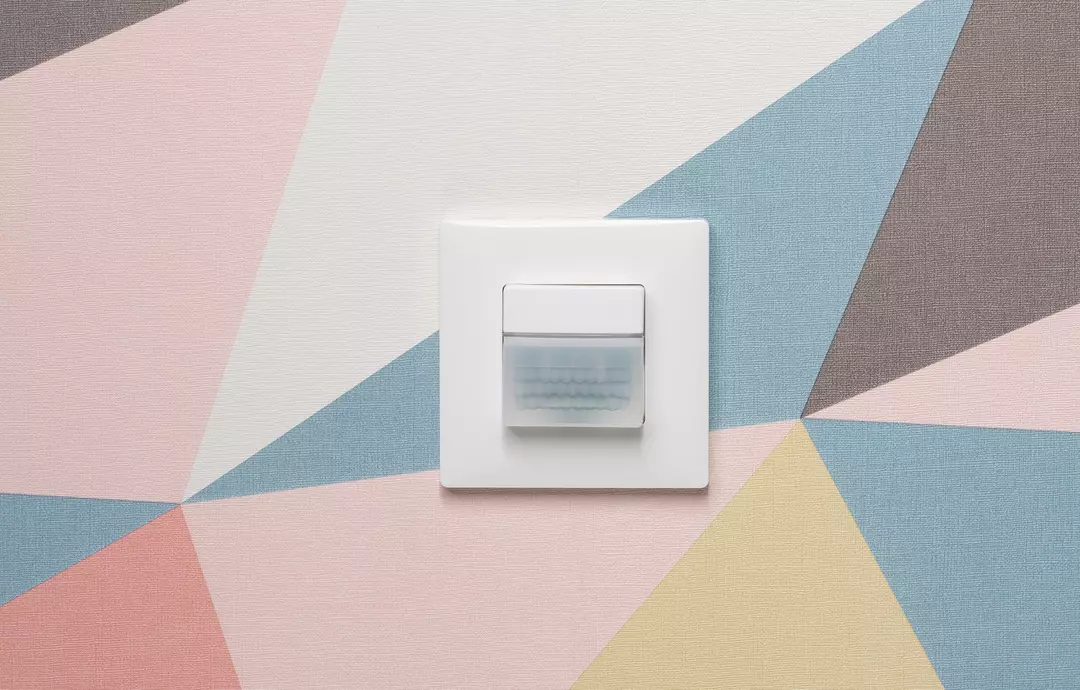

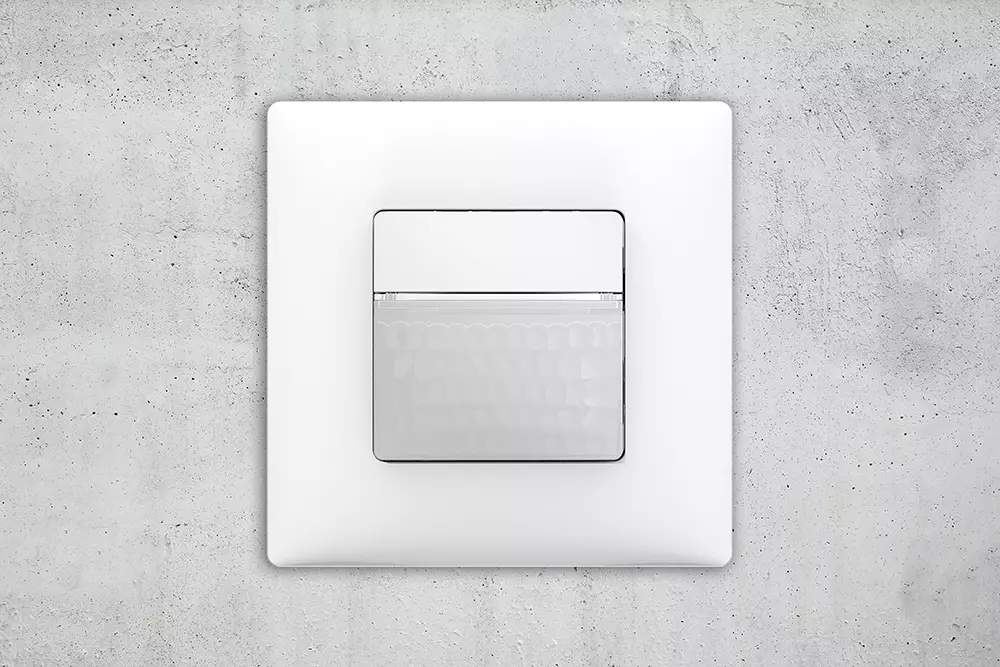

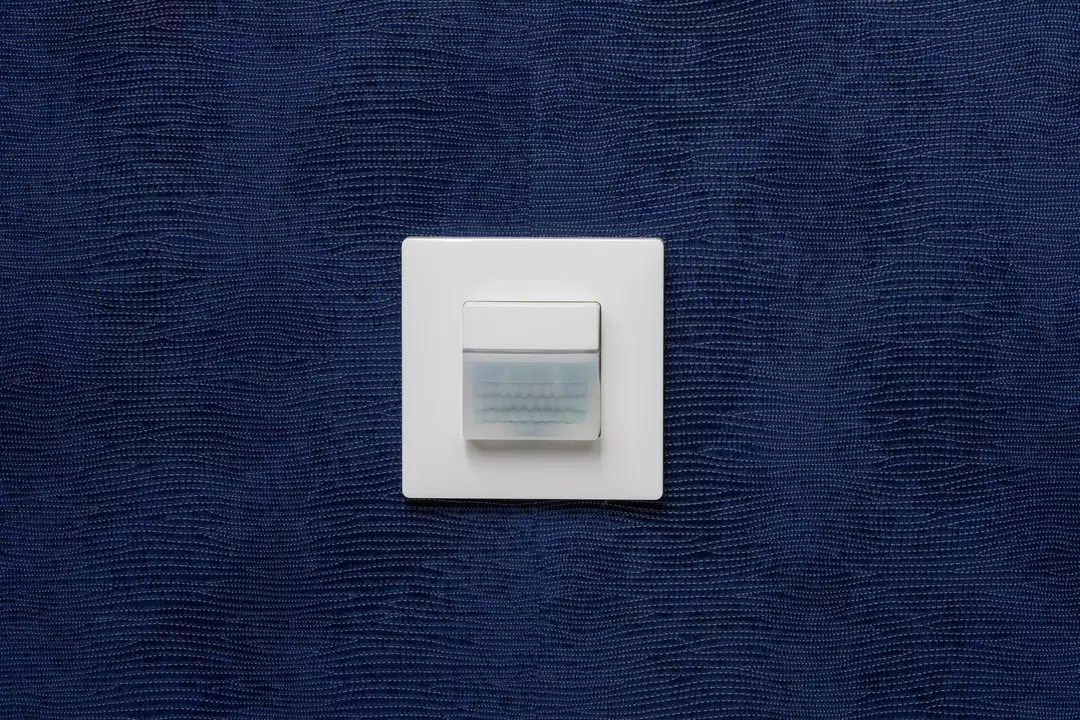

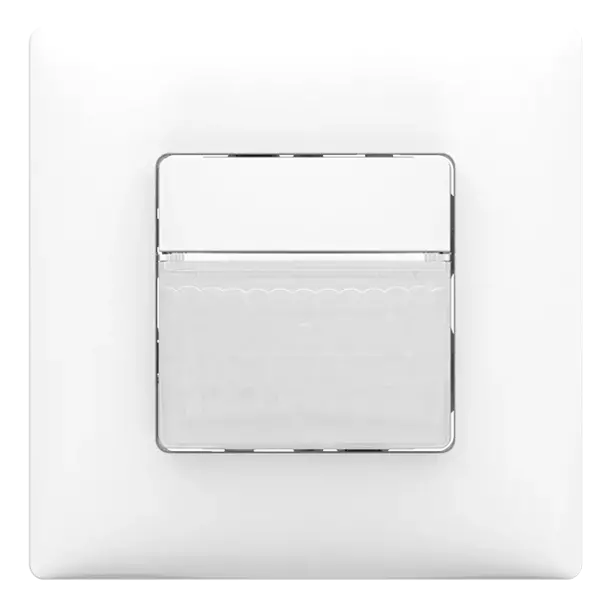

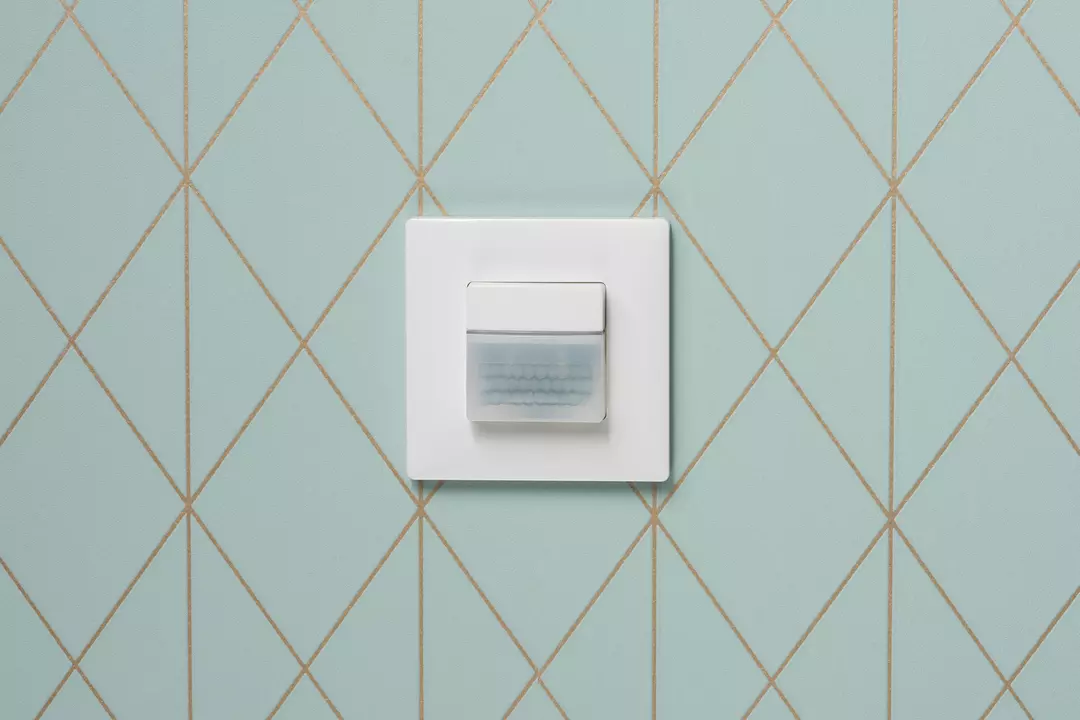

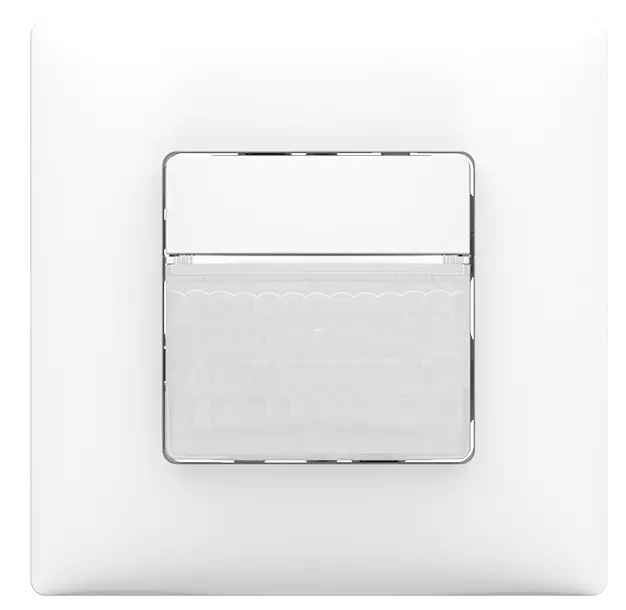

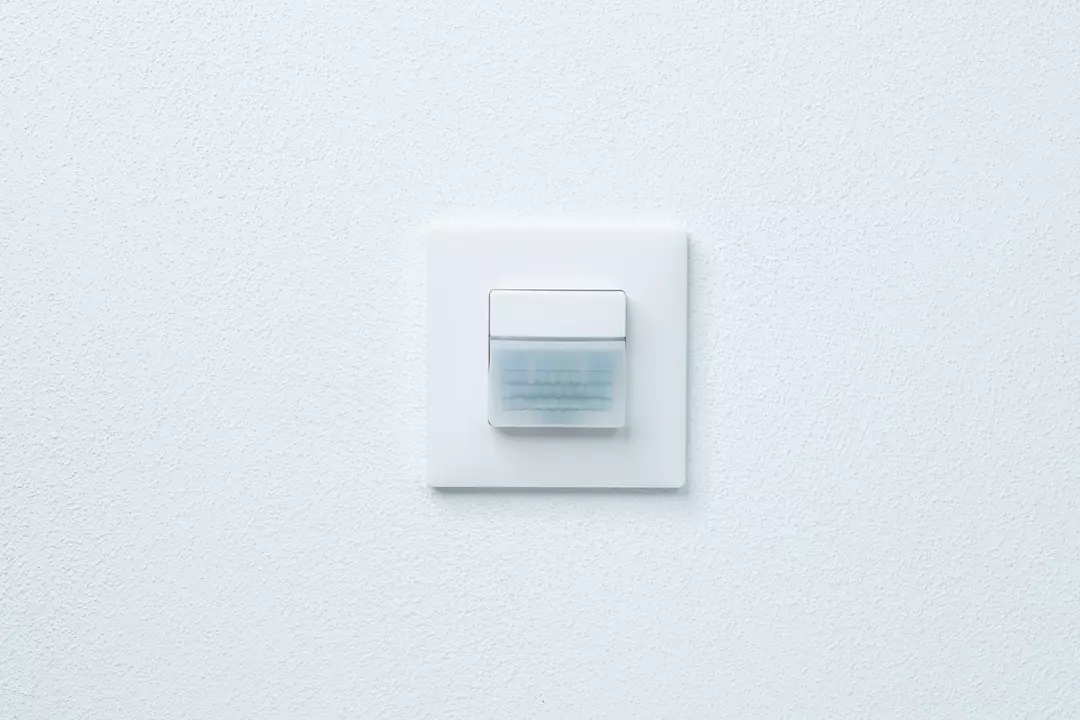

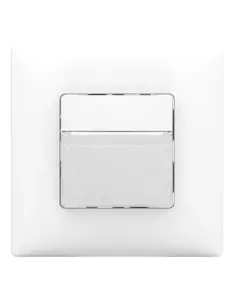

theMura S180 KNX UP WH – PIR motion detector, 1 light & 1 HVAC channel
€100,03 Incl. tax €173,96 Incl. tax. Out of stock, but available
Specifications
Information

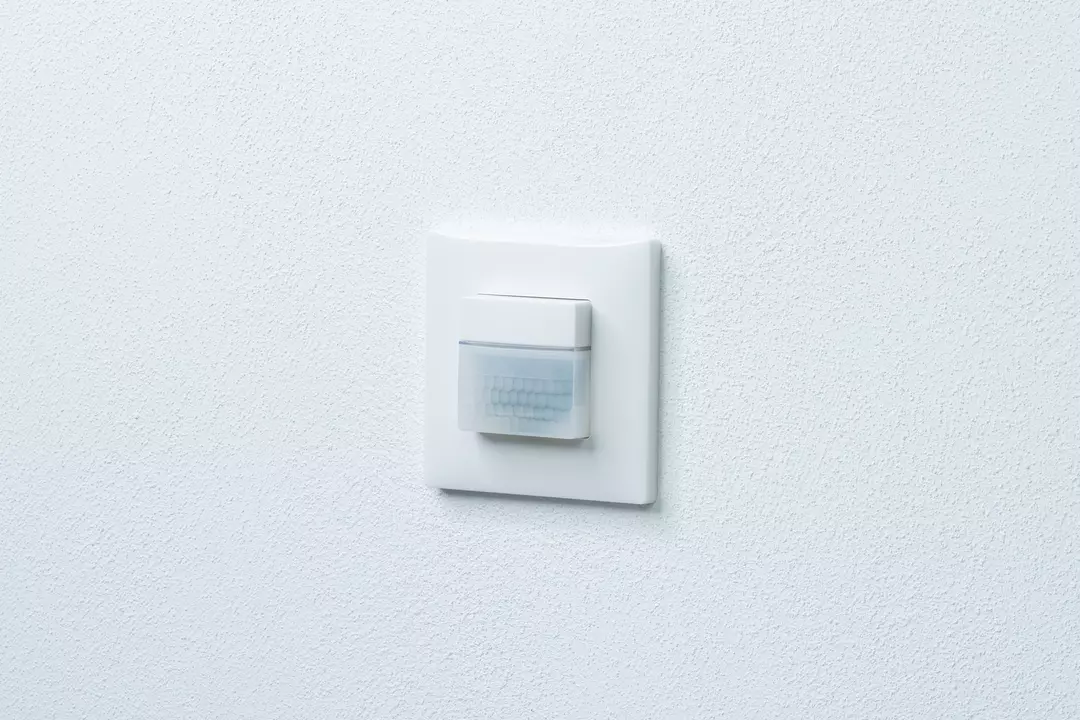

theMura S180 KNX UP WH
PIR motion detector for flush wall mounting KNX
Art. no.: 2069650
Application
The theMura S180 KNX UP WH is a passive infrared (PIR) motion detector for flush wall mounting, specially developed for KNX building automation. The device offers a wide rectangular detection area, intelligent lighting and HVAC control, and advanced functionalities for both residential and commercial projects.
Main features
- Passive infrared motion detector for flush wall mounting.
- Rectangular detection area of 170°, up to 14 x 17 m (238 m²) at 1.1 m mounting height.
- 1 channel for lighting control and 1 channel for HVAC (heating, cooling, ventilation).
- KNX Data Secure for secure communication within the KNX system.
- Switching function for lighting, dimmable with suitable actuators, with or without daylight influence.
- 3 logic channels (AND, OR, XOR) for flexible automation.
- Fully or semi-automatic operation possible via ETS setting.
- Integrated, freely programmable button (optionally deactivatable).
- Manual override possible via external KNX button.
- Targeted light measurement (mixed light measurement) for accurate light control.
- Teach-in function for automatic calibration of light threshold value.
- Blocking functions for temporary deactivation of the motion detector or HVAC channel.
- HVAC channel can operate independently of light threshold.
- Adjustable switch-on delay and follow-up time (light: 30 s – 60 min).
- Detection sensitivity is adjustable for optimal adaptation to the room.
- Extension of the detection area possible via Master/Slave or Master/Master parameter setting.
- Test mode available to check the detection area and function.
- Full functionality configurable via ETS software.
- Detection range masks are included as standard.
- Compatible with Theben cover frames and many common switch ranges (with accessories).
Technical specifications
| Detection area | 170°, 14 x 17 m (238 m²) at 1.1 m mounting height |
|---|---|
| Light measurement range | 5 – 3000 lx |
| Mounting type | Flush wall mounting |
| Light follow-up time | 30 s – 60 min (adjustable) |
| Type of light measurement | Mixed light measurement (suitable for various light sources) |
| Ambient temperature | -15°C ... 45°C |
| Colour | White |
| Protection class | IP 20 |
| Logic channels | 3 (AND, OR, XOR) |
| Teach-in function | Yes |
| Compatible with ETS | Yes, full functionality |
| Security | KNX Data Secure |
Important notes
- The device is suitable for indoor use and flush wall mounting only.
- The motion detector works optimally at a mounting height of approx. 1.1 m for maximum range.
- Programming via ETS is required for correct operation and full functionality.
- For more information and warranty conditions, see: www.theben.de/en/guarantee
