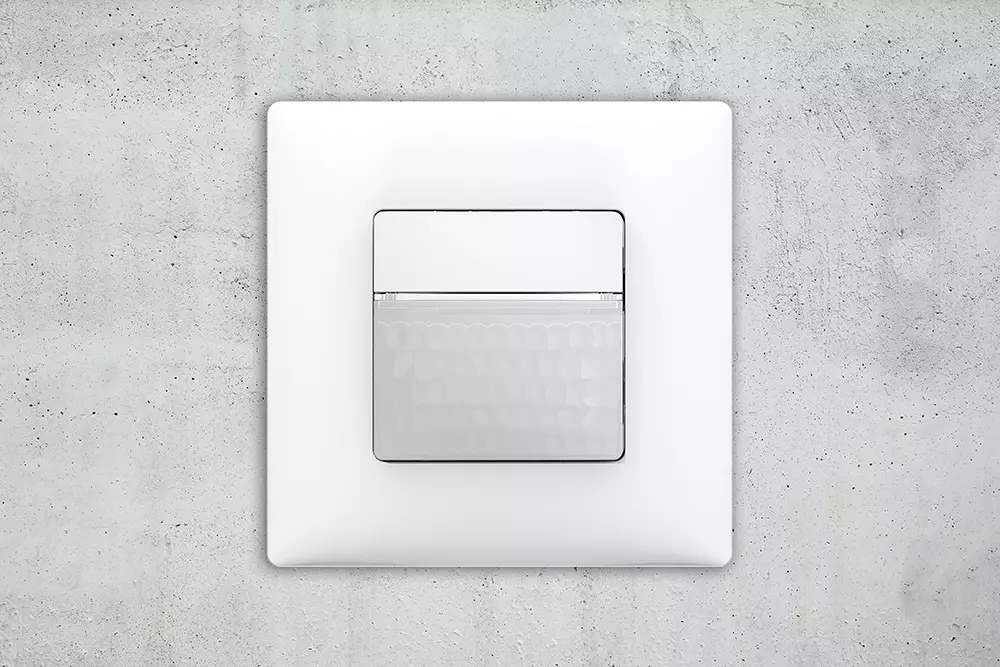

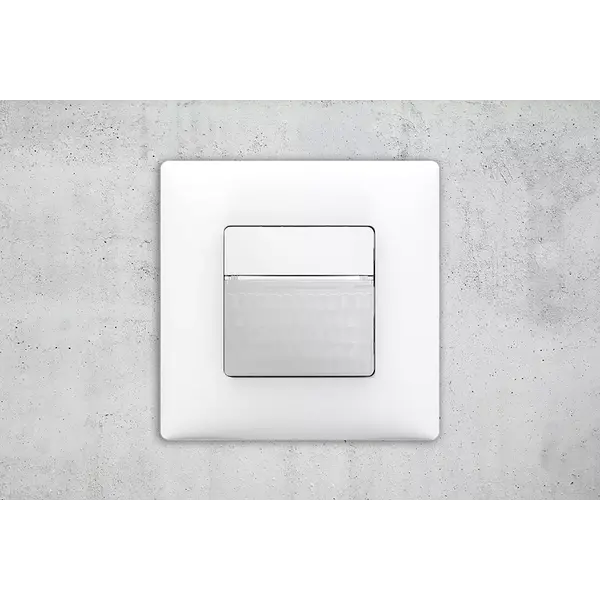

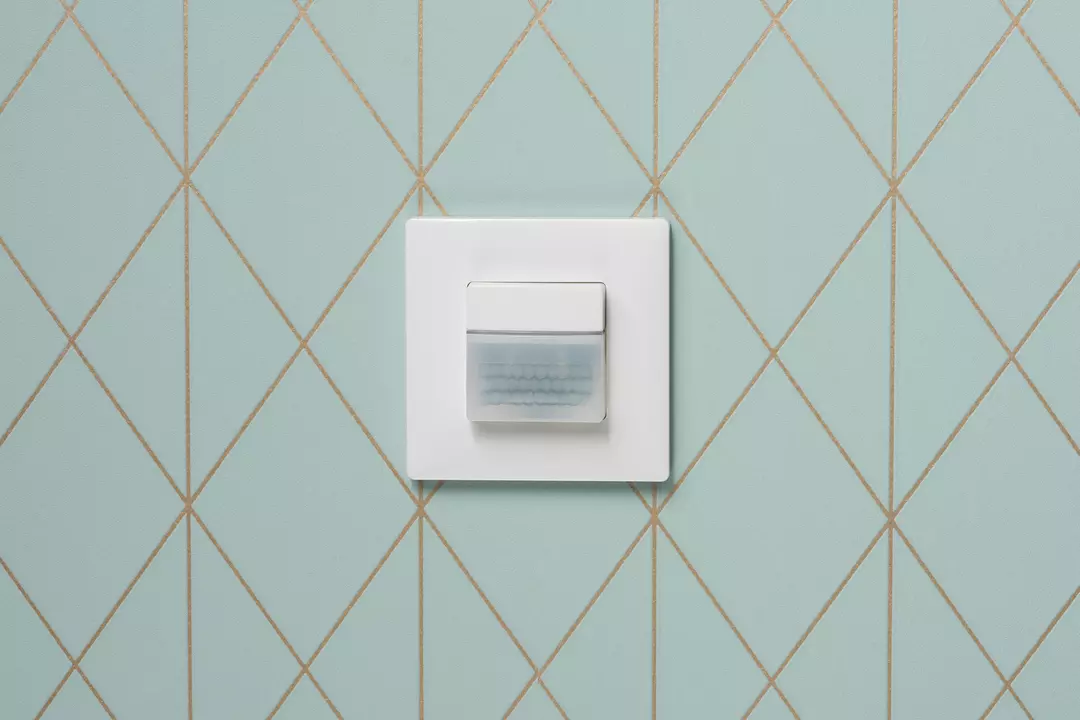

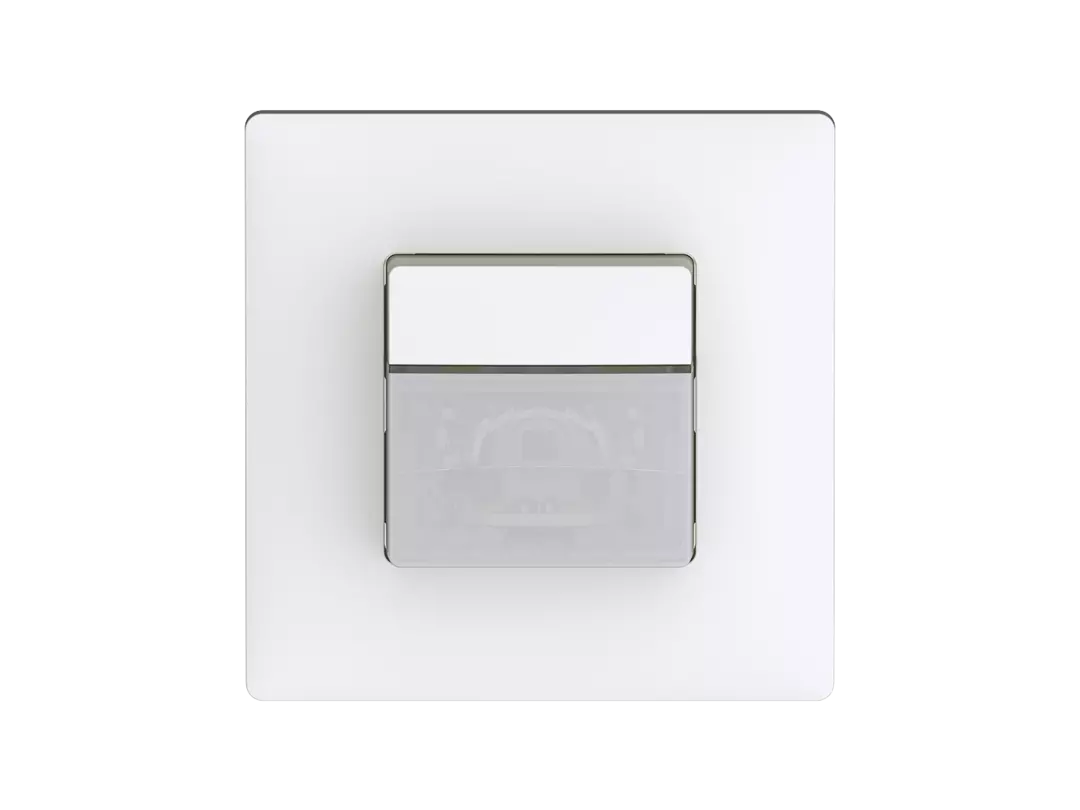

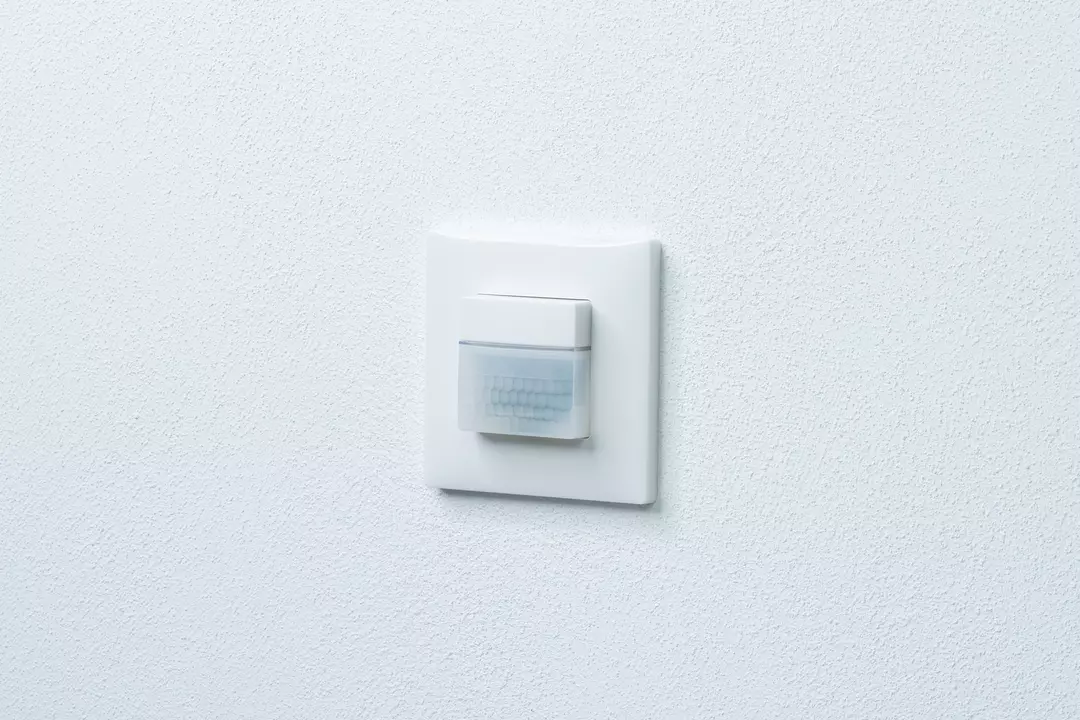

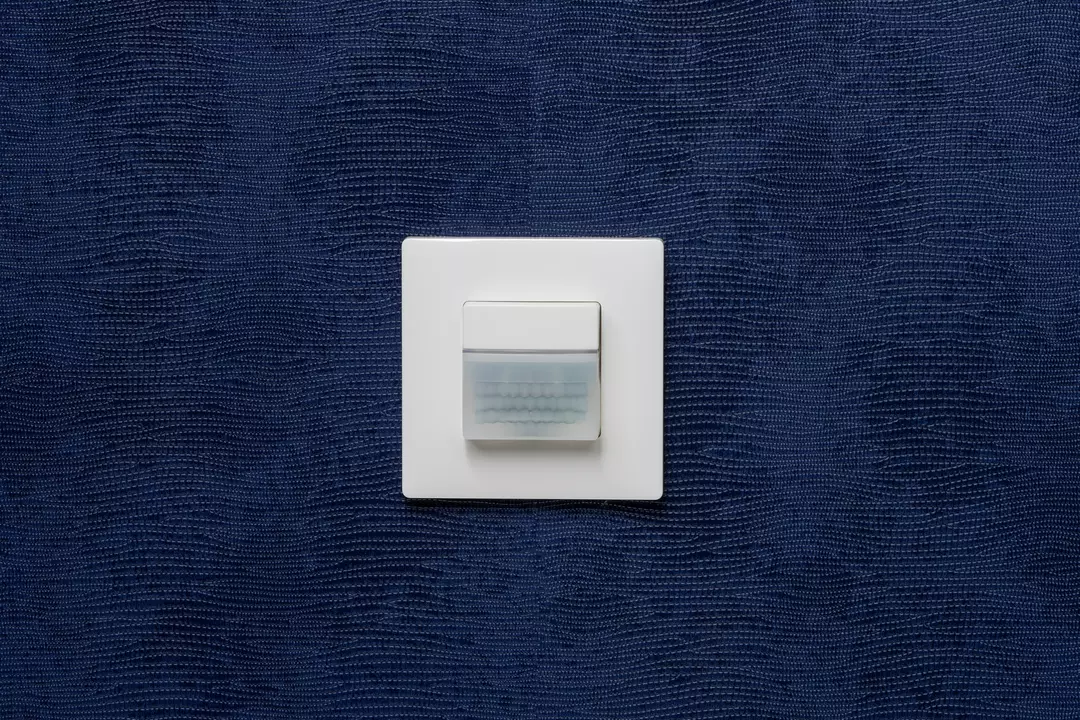

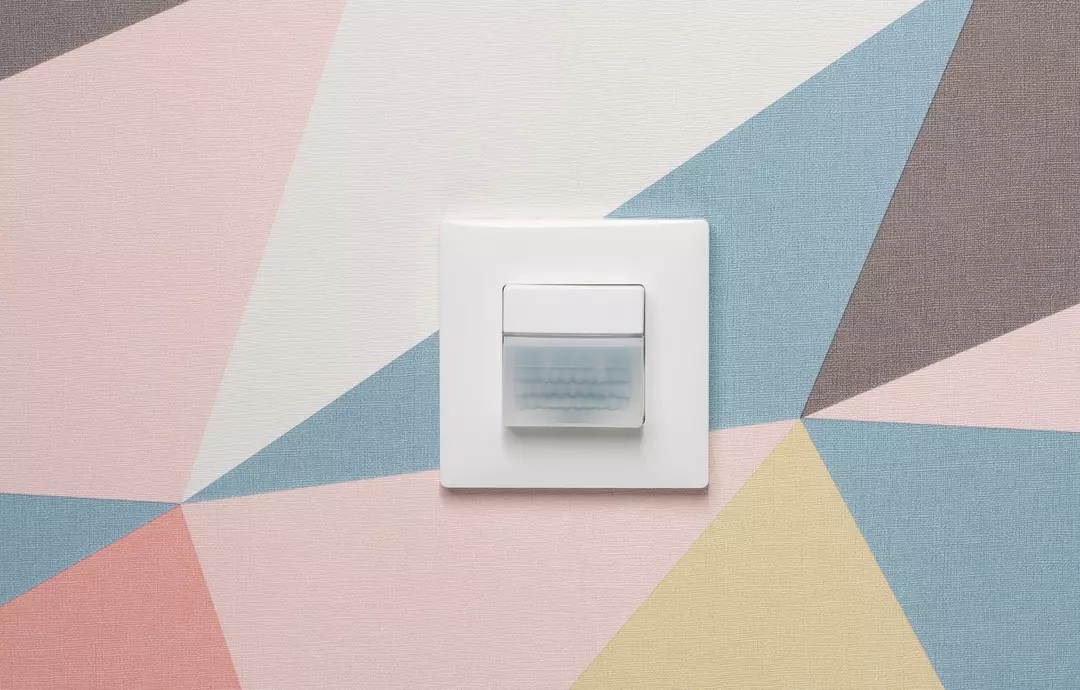

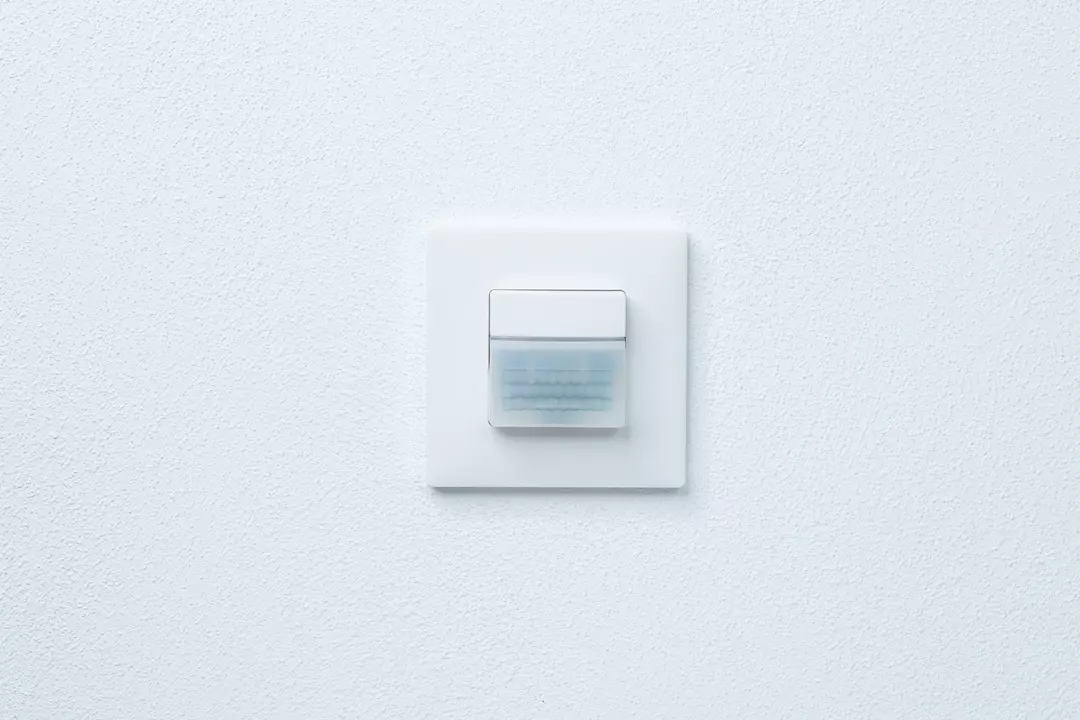

theMura P180 2.20 KNX UP WH – PIR sensor, 2 light & 2 HVAC channels

Name: Theben theMura P180 2.20 KNX UP WH – PIR sensor, 2 light & 2 HVAC channels
Brand: Theben
Price: 93.42 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€93,42 Excl. tax €162,48 Excl. tax
€113,04 Incl. tax €196,60 Incl. tax. Out of stock, but available

Unit price: €93,42 / Piece

Wall-mounted presence detector (2.2 m) with 170° coverage, 2 light and 2 HVAC channels, integrated sensors and KNX Data Secure. Flexible lighting and climate control. Read more

Specifications

Brand:

Theben

Article number:

2069658

EAN:

4003468200629

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Theben website

theMura P180 2.20 KNX UP WH

Presence detector with 2 light and 2 HVAC channels,

Art. no.: 2069658

Application

This passive infrared presence detector for flush wall mounting is designed for KNX building automation. The device offers a rectangular detection area of 170° and up to 16 x 10 m (160 m²) at a mounting height of 2.2 meters. It is ideal for reliable detection and automatic control of lighting and climate installations in offices, corridors, meeting rooms, and other commercial buildings.

Features

Rectangular detection area of 170°, 16 x 10 m (160 m²) at 2.2 m mounting height
2 light channels and 2 HVAC channels, suitable for the KNX bus system
KNX Data Secure for safe communication within the KNX network
Switching or constant light control possible, with standby function (orientation light)
Dimmable lighting when switching, with or without daylight influence
Easy correction of brightness measurement
Short presence and selectable control speed
Aura function and scene functions for flexible automation
Integrated orientation light (white)
Integrated temperature sensor
Acoustic function
2 binary inputs for external switches or sensors
6 logic channels (AND, OR, XOR) for complex logic
Limited settings via theSenda B (app/universal remote control) and theSenda P (service remote control)
Optional user remote control (theSenda S/B) for manual override
Fully or semi-automatic operation possible
Integrated freely configurable button (can be deactivated)
Manual override via external KNX button possible
Targeted brightness measurement (mixed light measurement)
Learning function and blocking functions
HVAC channel without brightness influence, switch-on delay and follow-up time adjustable
Detection area can be expanded via Master/Slave or Master/Master parameter settings
Adjustable detection sensitivity
Test mode for checking functions and detection area
Settings via ETS software (full functionality)
Detection area limitation strips included
Suitable for Theben cover frames and many common switch ranges (with accessories)

Technical Specifications

Brightness measurement range	5 - 3000 lx
Mounting type	Wall mounting (flush-mounted)
Detection area	Rectangular, 170°, 16 x 10 m (160 m²) at 2.2 m mounting height
Light follow-up time	30 seconds - 60 minutes
Type of light measurement	Mixed light measurement
Presence follow-up time	10 seconds - 120 minutes
Ambient temperature	-15°C to +45°C
Color	White
Protection class	IP 20
KNX Data Secure	Yes
Light channels	2
HVAC channels	2
Binary inputs	2
Logic channels	6 (AND, OR, XOR)
Orientation light	Integrated (white)
Temperature sensor	Integrated
Acoustic function	Yes
Mounting accessories	Compatible with various switch ranges (accessories)
Predecessor	2009050, PresenceLight 180B-KNX WH

Important Notes

Full functionality can only be configured via ETS software.
Limited local control via remote control theSenda B/P or user remote theSenda S/B.
For indoor use only (IP20), not suitable for damp environments.
Detection area limitation strips are included for adjustment.
Accessories may be required for integration into switch ranges.
Mounting height and positioning affect detection area and performance.
KNX Data Secure ensures secure communication within the KNX network.
Always check compatibility with previous models during renovation.
