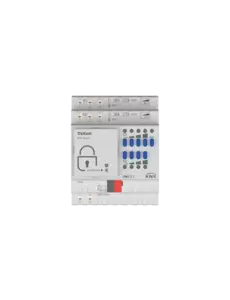

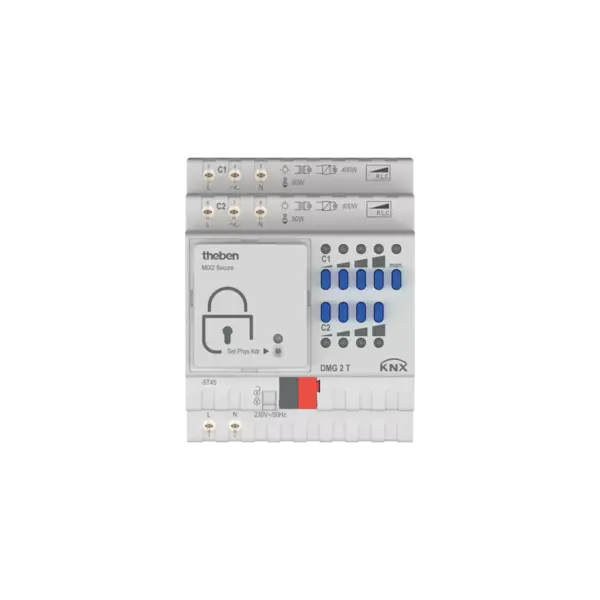

DMG 2 T KNX | 2-fold universal dim actuator MIX2 base module
€232,03 Excl. tax
€403,53 Excl. tax
€280,76 Incl. tax €488,27 Incl. tax. Out of stock, but available
€280,76 Incl. tax €488,27 Incl. tax. Out of stock, but available
MIX2 base module, universal dim actuator for 2 channels. For LED, incandescent, halogen, and CFL lamps. Expandable to 6 channels. Manual control, load detection, DIN rail mounting. Read more
Specifications
Brand:
Theben
Article number:
4930270
EAN:
4003468490006
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
DMG 2 T KNX | 2-channel universal dim actuator MIX2 base module
Part no.: 4930270
Application
The DMG 2 T KNX from Theben is a 2-channel universal dim actuator in the form of a MIX2 base module, designed for dimming a wide range of light sources including incandescent lamps, halogen lamps (low/high voltage), dimmable LEDs and compact fluorescent lamps. The device is also suitable for controlling fans. As a base module of the modular MIX2 system, it can be expanded to up to 6 channels using two additional MIX or MIX2 extension modules.
Features
- MIX2 base module with 2 dimming channels
- Suitable for incandescent, halogen (LV/HV), dimmable LED and CFL lamps
- Also suitable for fan control
- Parallel operation possible: up to 800 W/VA on a single channel
- Expandable up to 6 channels with 2 MIX/MIX2 extension modules
- Manual operation on device possible, even without KNX bus voltage
- LED status indicator for each channel
- Removable KNX bus module allows device replacement without reprogramming
- Automatic load detection (can be deactivated via ETS)
- Supports resistive, inductive, and capacitive loads (R, L, C)
- Compatible with DMB 1 T KNX dim booster (expandable up to 2000 W/VA with max. 4 boosters)
Technical data
| KNX operating voltage | Via KNX bus, ≤ 4 mA |
|---|---|
| Mains voltage | 230 V AC, 50 Hz |
| Frequency | 50 Hz |
| Standby power | Approx. 0.9 W |
| Max. power loss | 4.5 W |
| Dimming power per channel | 400 W/VA |
| Parallel operation power | 800 W/VA (1 active channel) |
| Minimum load | 5 W |
| CFL (phase cut) | 400 W (RC mode) |
| Number of channels | 2 |
| Max. cable length | 100 m |
| Extension possible | Max. 2 MIX or MIX2 modules (up to 6 channels) |
| Mounting type | DIN rail (4 TE) |
| Connection type | Screw terminals (mains/load), KNX bus terminal |
| Cable cross-section (solid) | 0.5 mm² (Ø 0.8 mm) to 6 mm² |
| Cable cross-section (ferrule) | 0.5 mm² to 4 mm² |
| Ambient temperature | -5 °C to +45 °C |
| Protection rating | IP 20 |
| Protection class | II according to EN 60669 |
Important notes
- This dim actuator is a base module of the MIX2 system.
- Device replacement is easy thanks to the removable KNX bus module, no reprogramming needed.
- Automatic load detection can be deactivated via ETS if required.
- For higher loads, the optional DMB 1 T KNX dim booster is recommended.
Important note: This module is a base module of the MIX2 system. To expand to 6 channels, up to two extension modules can be connected.
