DME 2 T KNX | 2-channel universal dim actuator MIX2 extension
€131,65 Excl. tax
€228,96 Excl. tax
€159,30 Incl. tax €277,04 Incl. tax. Out of stock, but available
€159,30 Incl. tax €277,04 Incl. tax. Out of stock, but available
Extension module for 2 channels, 400 W per channel or 800 W parallel. For LED, halogen, CFL. Only works with MIX2 base module. Read more
Specifications
Brand:
Theben
Article number:
4930275
EAN:
4003468490013
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

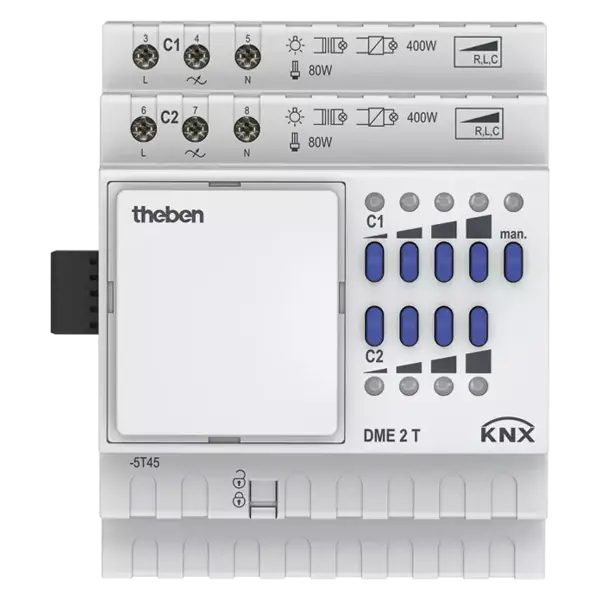

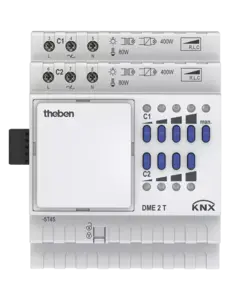

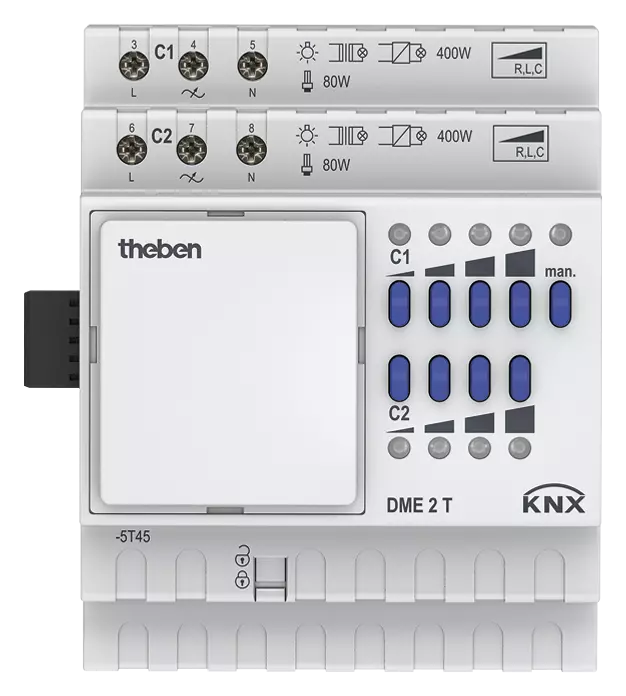

DME 2 T KNX | 2-channel universal dim actuator MIX2 extension module
Part no.: 4930275
Application
The DME 2 T KNX from Theben is a 2-channel universal dimming extension module for the MIX2 system. It is designed for dimming a variety of lighting types including incandescent lamps, low and high voltage halogen lamps, dimmable LEDs, and compact fluorescent lamps. It is also suitable for controlling fans. When combined with a MIX2 base module, the system can be expanded up to 6 channels.
Features
- Extension module for MIX2 base module (not standalone)
- 2 dim channels, 400 W/VA per channel or 800 W/VA in parallel mode
- Suitable for incandescent, halogen (LV/HV), dimmable LED and CFL lamps
- Also suitable for fan control
- Automatic load detection (can be deactivated via ETS)
- Supports resistive, inductive and capacitive loads (R, L, C)
- Manual operation and LED status indication per channel (also without bus voltage)
- Compatible with DMB 1 T KNX booster for up to 2000 W/VA (with max. 4 boosters)
Technical data
| Operating voltage | 230 V AC, 50 Hz |
|---|---|
| Frequency | 50 Hz |
| Standby consumption | ~0.6 W |

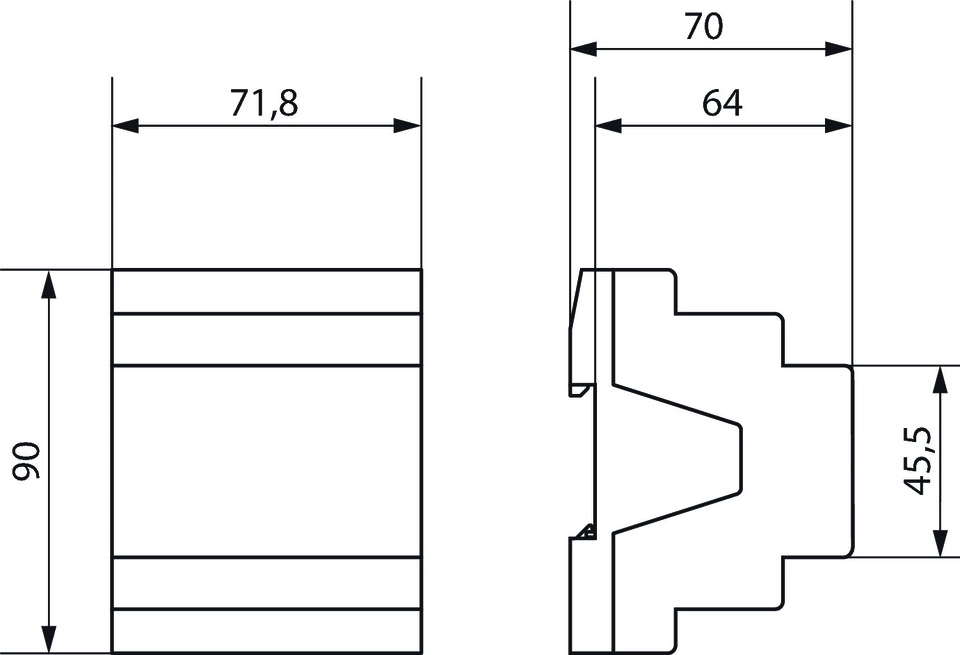

| Width | 4 modules (TE) |
| Mounting type | DIN rail |
| Connection type | Screw terminals |
| Cable cross-section solid | 0.5 mm² (Ø 0.8 mm) to 6 mm² |
| Cable with ferrule | 0.5 mm² to 4 mm² |
| Number of channels | 2 |
| Dimming power per channel | 400 W/VA |

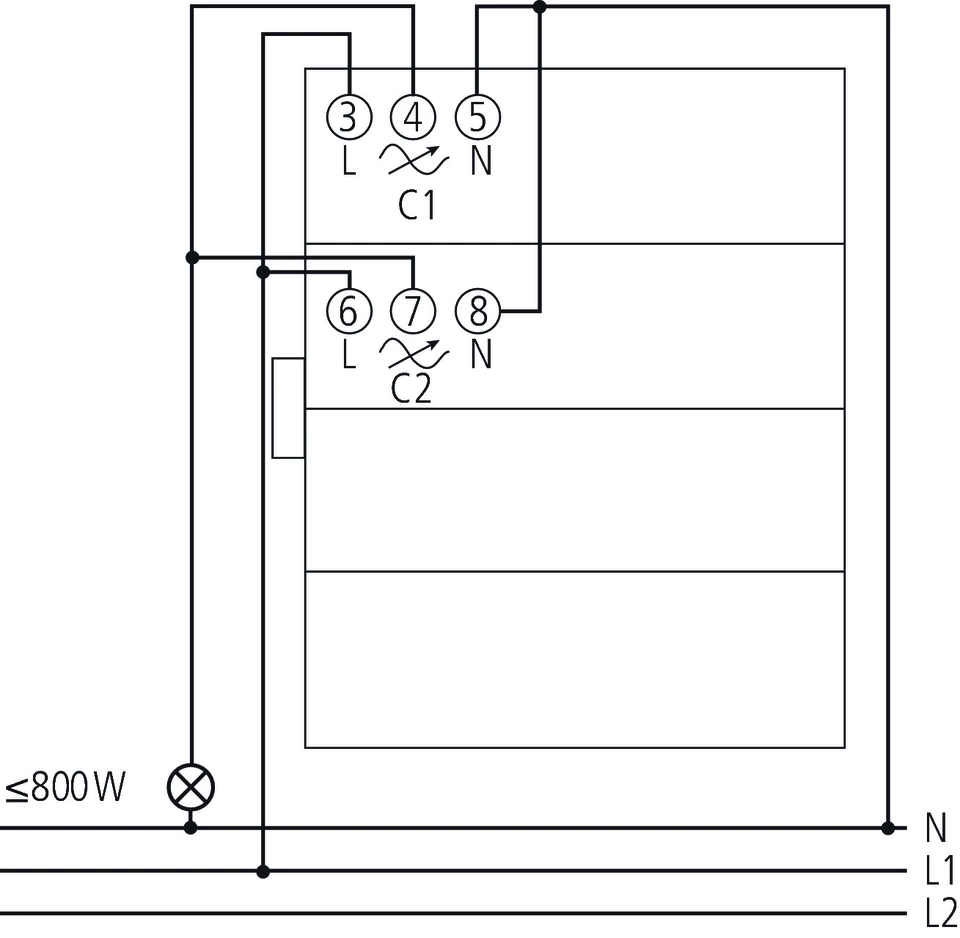

| Parallel mode power | 800 W/VA |
| Minimum load | 5 W |
| CFL (RC-mode) | 400 W |
| Maximum cable length | 100 m |
| Ambient temperature | -5 °C to +45 °C |
| Protection rating | IP 20 |
| Protection class | II according to EN 60669 |
Important notes
- This is a dedicated extension module and only operates with a MIX2 base module such as the DMG 2 T KNX.
- A maximum of two extension modules can be connected to one MIX2 base module.
- The KNX bus module is removable, allowing replacement without reprogramming.
- Manual operation is possible even without KNX bus voltage.
Important note: This module must be used in combination with a MIX2 base module. The DME 2 T KNX does not function as a standalone device.
