Winkel theLuxa – Montagewinkel für Eckmontage theLuxa P220-P300
€12,99 Excl. tax
€22,59 Excl. tax
€15,72 Incl. tax €27,33 Incl. tax. Out of stock, but available
€15,72 Incl. tax €27,33 Incl. tax. Out of stock, but available
For indoor and outdoor corner mounting of motion detectors. Suitable for white and black versions. Includes mounting material. For use indoors and outdoors. Read more
Specifications
Brand:
Theben
Article number:
9070904
EAN:
4003468900291
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Link to Theben website item no. 9070904
Link to Theben website item no. 9070905
Application

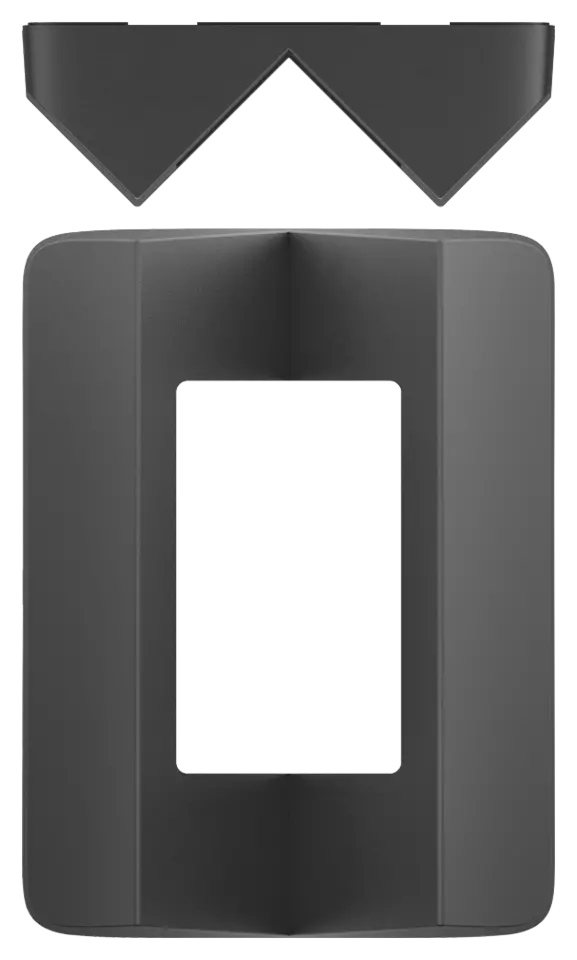

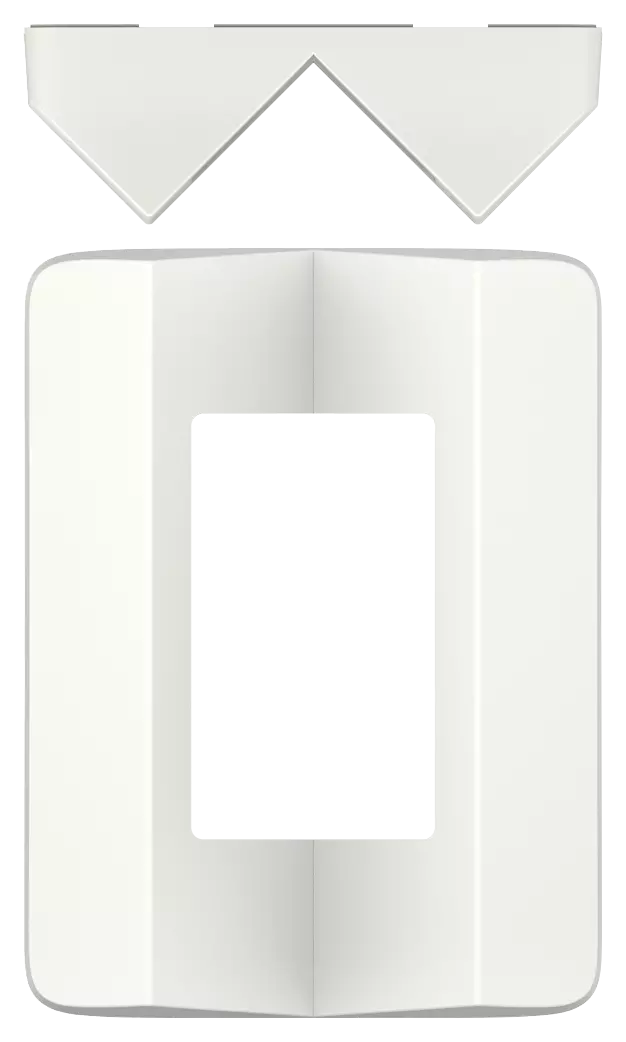

The theLuxa P WH/BK corner mounting bracket is designed for easy and stable corner installation of Theben motion detectors, suitable for both indoor and outdoor use. The bracket allows optimal placement in inside and outside corners, enhancing the detector’s coverage area.
Features
- Suitable for indoor and outdoor corner mounting of motion detectors
- Compatible with Theben theLuxa series (P220, P300, etc.)
- Available in white (WH) and black (BK)
- Robust and weatherproof construction for outdoor use
- Includes mounting materials for quick installation
- Easy installation on wall or ceiling
Technical Data
- Material: Plastic, UV-resistant
- Color: White (WH) or Black (BK)
- Dimensions (WxHxD): approx. 70 x 120 x 50 mm
- Mounting types: Inside corner (90°), outside corner
- Protection class: IP54 (when used with suitable detector)
- Temperature range: -25 °C to +50 °C
- Weight: approx. 60 g
- Suitable for: theLuxa P220, P300, and other models from the theLuxa P series
Important Notes
- Only suitable for use in combination with Theben theLuxa motion detectors.
- For optimal performance, the bracket must be installed correctly according to the manufacturer’s instructions.
Scope of Delivery
- 1x corner mounting bracket (white or black)
- Mounting materials (screws and wall plugs)
- Short installation manual
Available Versions
- theLuxa P WH corner bracket: White (item no. 9070904, EAN 4003468900291)
- theLuxa P BK corner bracket: Black (item no. 9070905, EAN 4003468900314)
