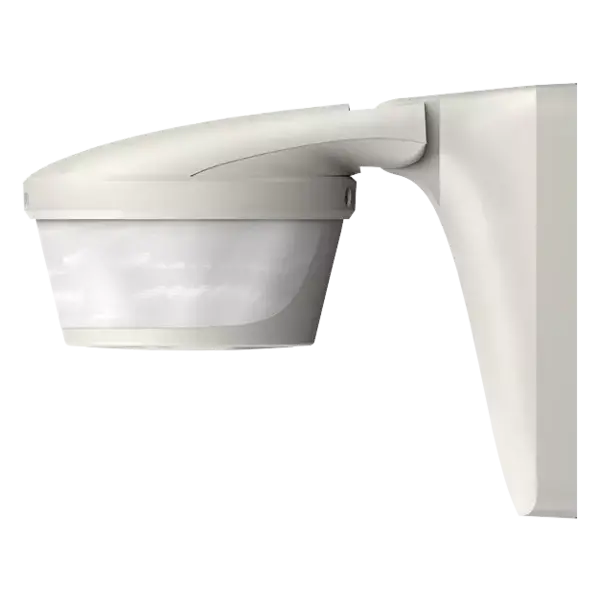

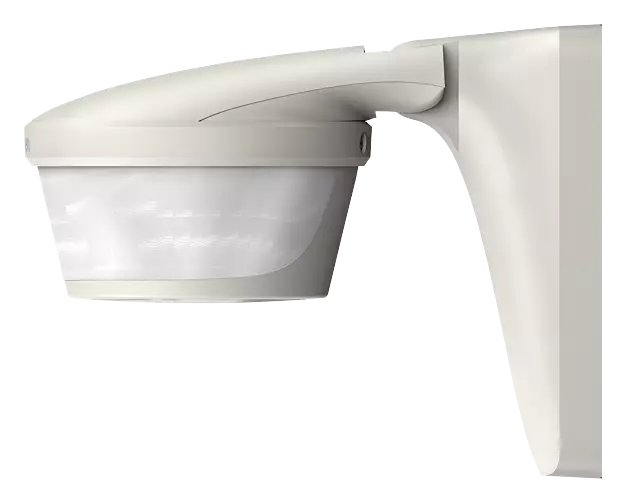

theLuxa P300 KNX – Motion detector, wall/ceiling, 300°, Ø16m
€109,98 Excl. tax
€191,27 Excl. tax
€133,08 Incl. tax €231,44 Incl. tax. Out of stock, but available
€133,08 Incl. tax €231,44 Incl. tax. Out of stock, but available
Outdoor PIR motion detector for wall or ceiling mounting. Automatic light control based on presence and brightness. Easy KNX integration via ETS. Read more
Specifications
Brand:
Theben
Article number:
1019610
EAN:
4003468100370
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
Link to Theben website item no. 1019610
Link to Theben website item no. 1019611
theLuxa P300 KNX Motion Detector (PIR)
| Variant | Article No. | Color | Detection Angle | Max. Range | Protection Class |
|---|---|---|---|---|---|

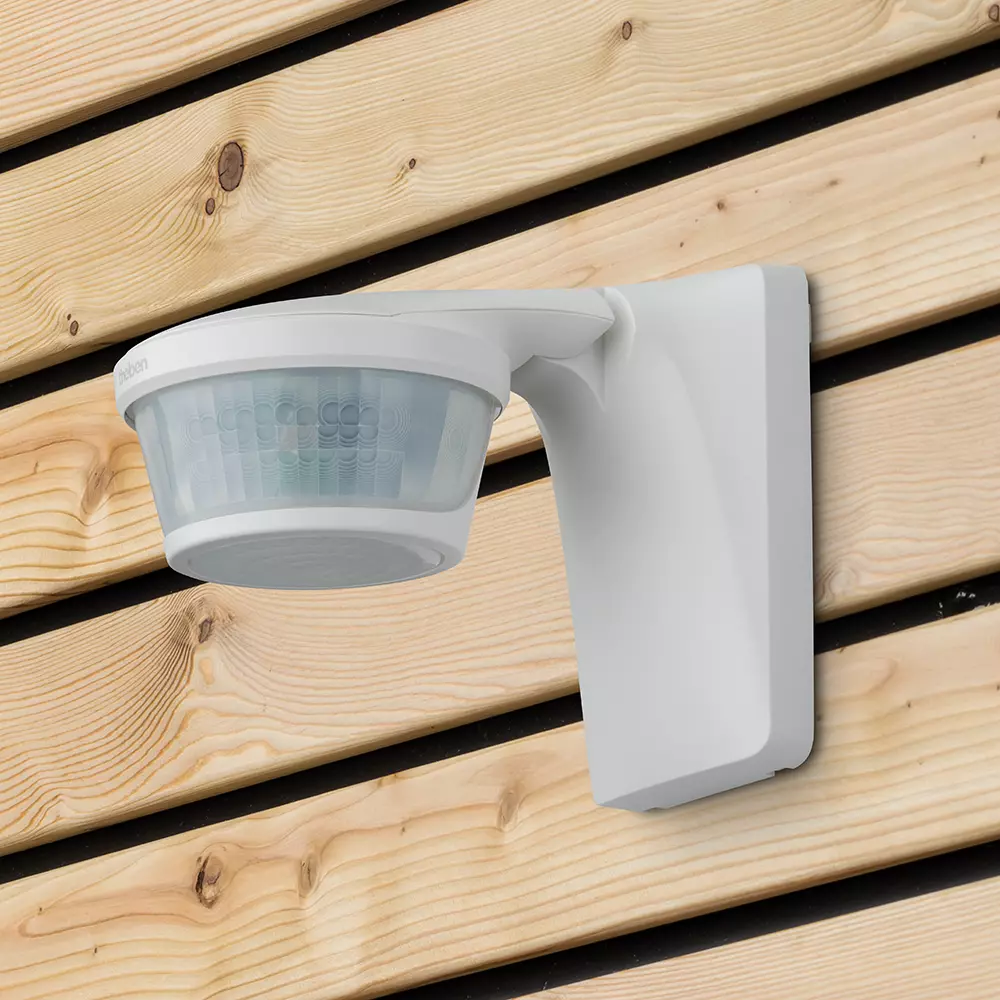

| theLuxa P300 KNX WH | 1019610 | White | 300° | 16 m | IP55 |

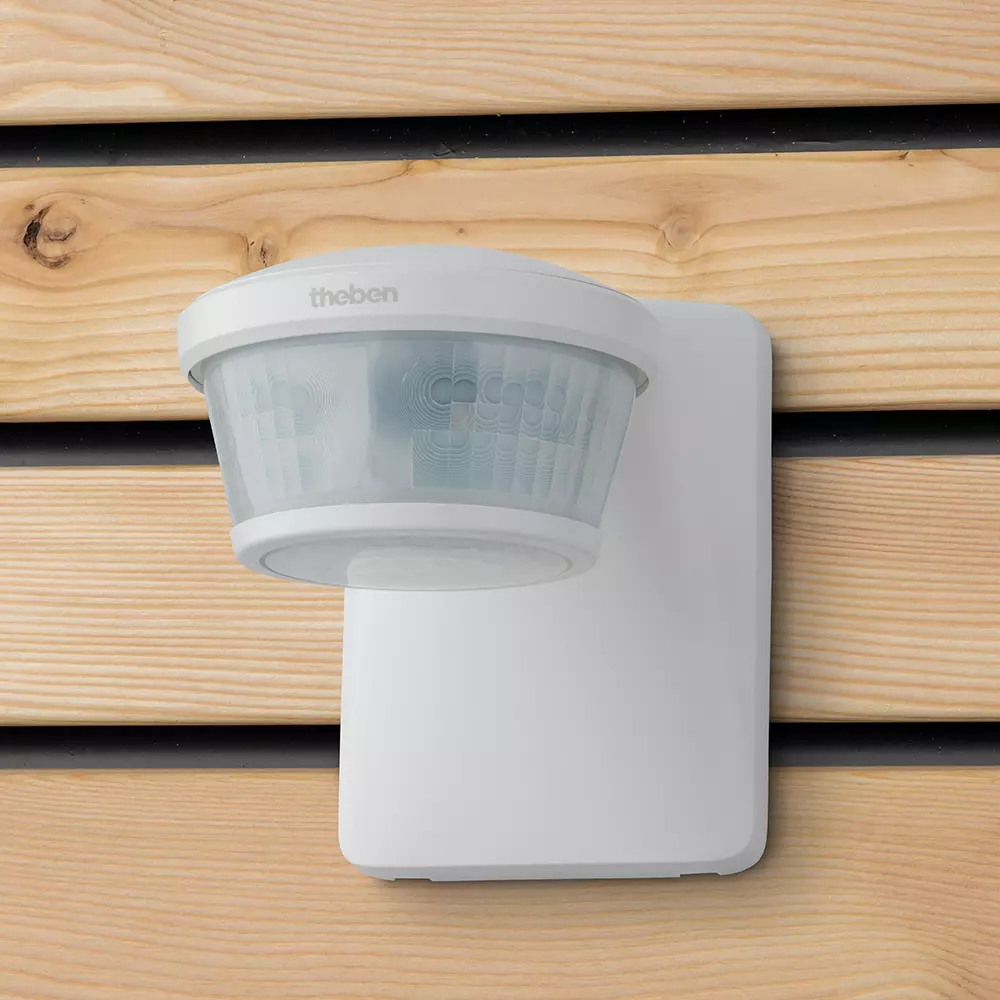

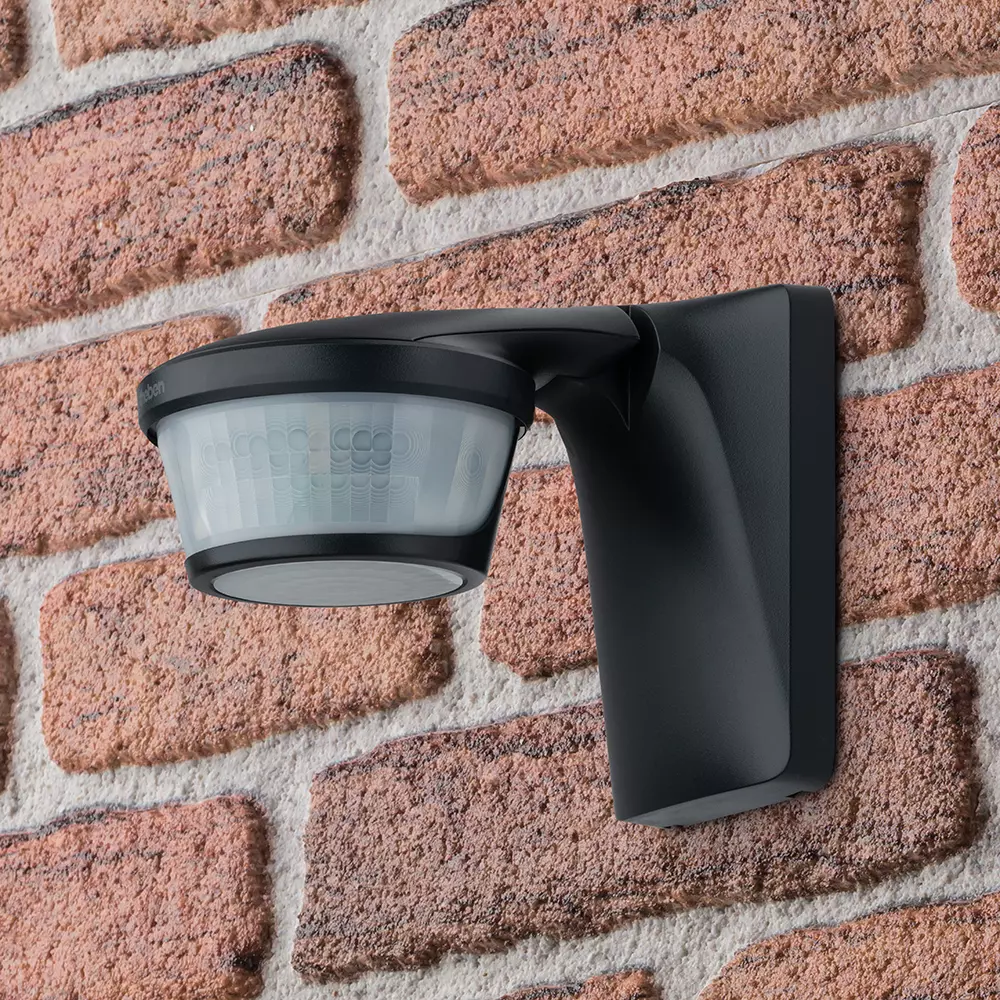

| theLuxa P300 KNX BK | 1019611 | Black | 300° | 16 m | IP55 |

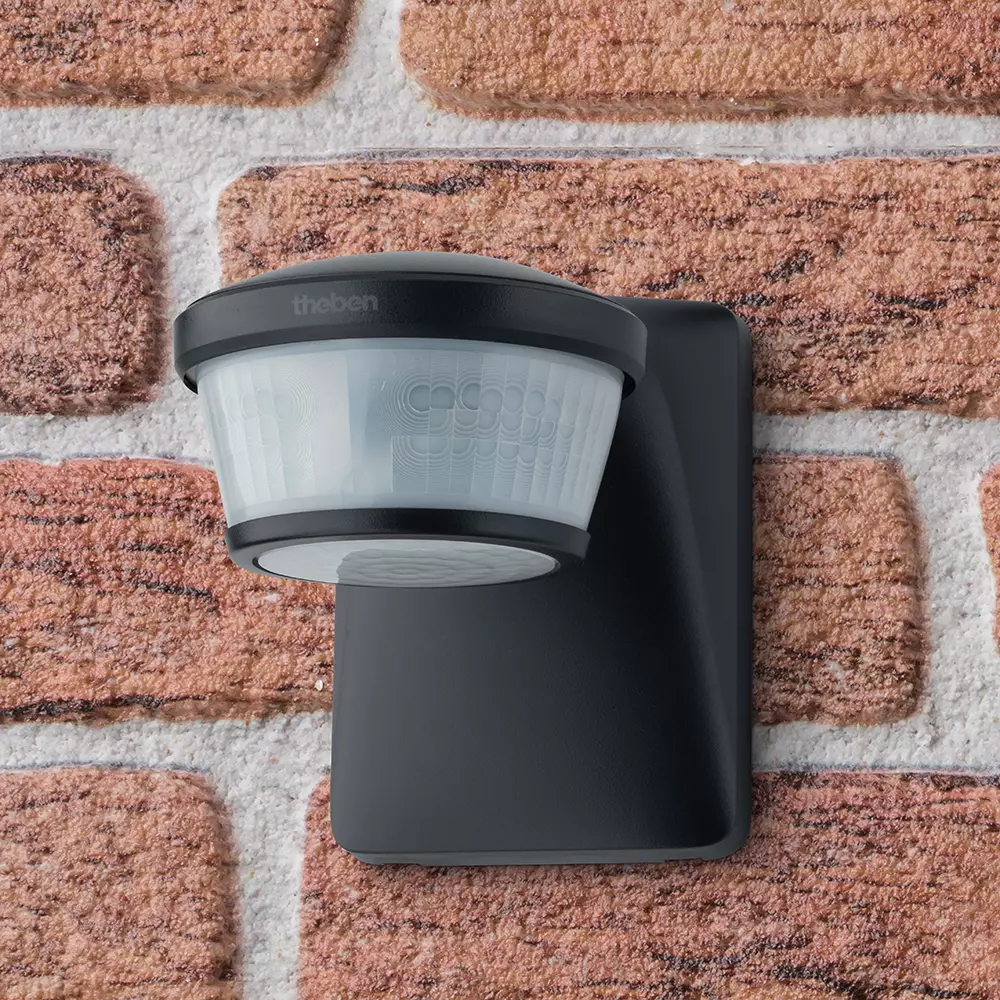

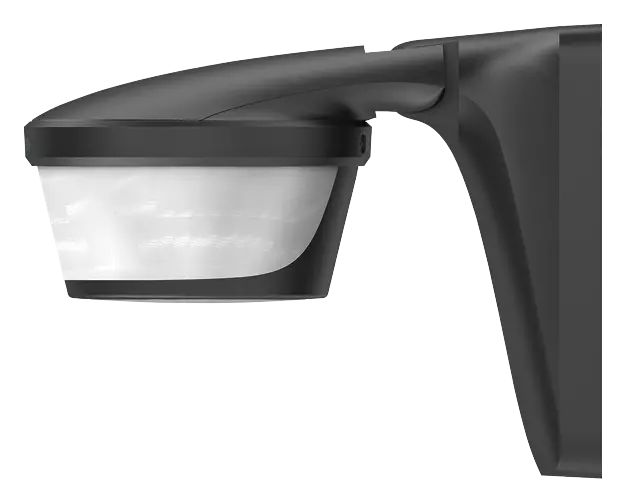

The theLuxa P300 KNX is an advanced outdoor PIR motion detector, suitable for wall and ceiling mounting. Automatic light control based on presence and brightness. Easy KNX integration via ETS, available in white and black.
Main Features
- PIR motion detector for outdoor use
- Automatic light control by presence/brightness
- Easy KNX integration via ETS

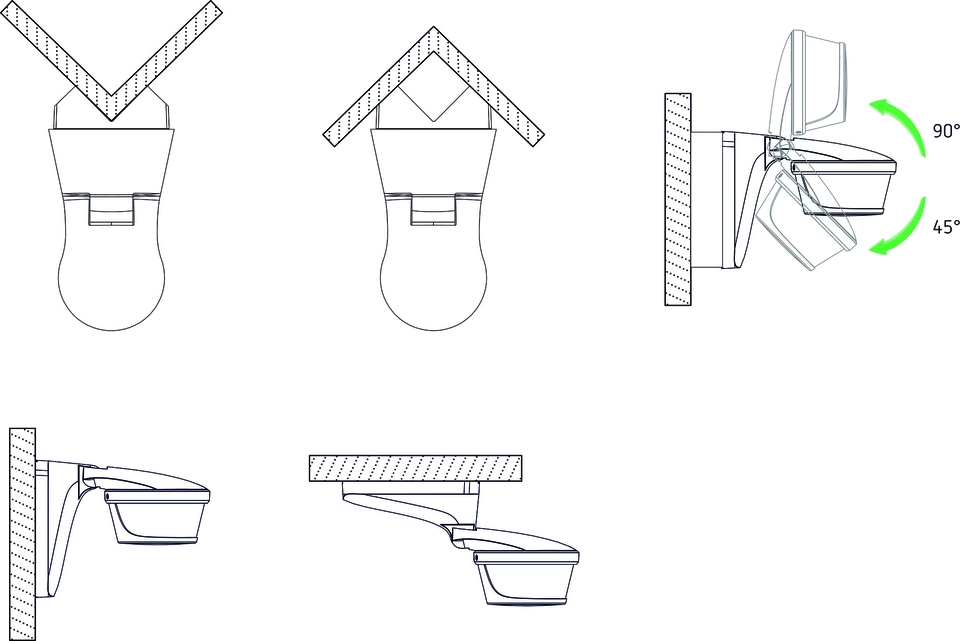

- Suitable for wall and ceiling mounting
- Integrated temperature sensor
- Adjustable brightness threshold & run-on time
- Sensitivity can be reduced
- Detection area can be limited with supplied segments
- Mixed light measurement
- Learning of current brightness possible
- Pulse & test function
- Can be mounted on flush-mounted box (60 mm)
- Mounting plate can be installed single-handedly
- Direct commissioning possible via presets
- Protected adjustment elements
- Spacer frame and angle included
Technical Specifications (Overview)
- Brightness measurement range: 1–3000 lx
- Detection angle: 300°
- Crawl-under protection: 6 m
- Light run-on time: 1 s–60 min
- Lamp types: Fluorescent, halogen, energy-saving, LED
- Light measurement: Mixed light
- Ambient temperature: -25°C to +45°C
- Protection class: III
- Protection rating: IP55
