KNX secure 6M230.16I AP pro | 6-ch blind actuator, runtime detection, KNX
€370,78 Incl. tax €729,87 Incl. tax. Out of stock, but available
Specifications
Information

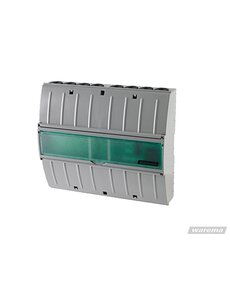

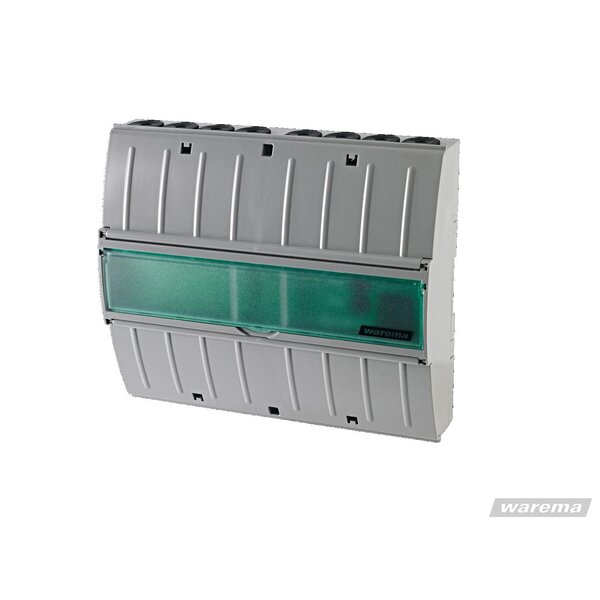

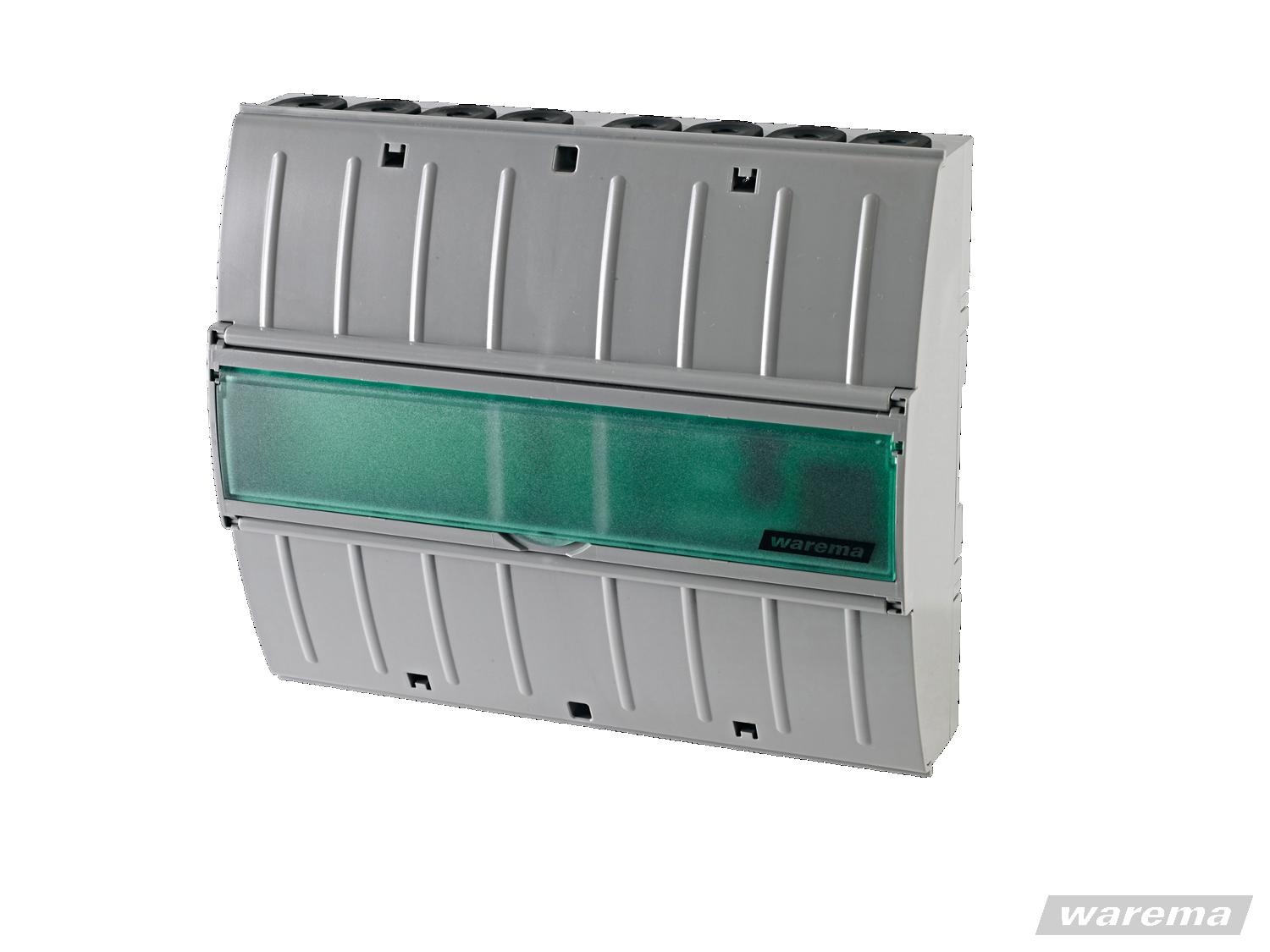

KNX Secure 6M230.16I AP pro
Surface-mounted actuator KNX Secure 6-channel, 16 binary inputs, runtime detection
KNX Secure
Art. No.: 2040761
The KNX Secure 6M230.16I AP pro is an advanced surface-mounted actuator for safe, flexible, and efficient control of shading, blinds, roller shutters, and other 230 V drives. Thanks to KNX Secure technology, all communication is fully encrypted and accessible only to authorized users. The pro version offers automatic runtime detection, intelligent firmware updates, and simple manual operation via Bluetooth app. The device features six independent 230 V outputs, sixteen binary inputs, and extensive automation functions. Operation is possible via KNX, binary inputs, or manually.
Main features
- KNX Secure certified for maximum digital security
- Individual control and parameterization of 6 output channels (230 V AC)
- Up to 16 binary inputs for switching, dimming, blinds, scenes, and edge/state analysis
- Manual operation via Bluetooth (smartphone app)
- Automatic runtime detection and integrated runtime adjustment
- Extensive automation functions such as sun position calculation, slat angle, heating support, presence and safety functions
- Replaceable glass fuse for circuit protection
- Reversal of direction programmable via ETS
- Prioritization of individual functions freely programmable (scenes, safety, presence)
- Comprehensive status objects, logic and timer functions
- Preset output type for various shading products with preprogrammed basic parameters
- Special settings for awnings with ZIP guidance and reactive obstacle detection
- Firmware update possible via KNX bus
- Fast and reliable commissioning thanks to automatic runtime detection
- Monitoring of motor current and runtime with error message via fault object
- Limitation of manual operation possible (e.g., cut-off limitation)
- Limit and measured values adjustable via ETS parameters and group objects
- Easy integration of other Warema KNX devices via additional 3-byte object
- KNX programming button and status LED for easy installation
- Bluetooth code easily changeable or deactivatable via ETS
Technical specifications
| Operating voltage | 230 V AC, 50/60 Hz |
|---|---|
| Power consumption | approx. 8 W (operation) |
| Connection type | Plug-in terminal (screwless) |
| Outputs | 6 x 230 V AC, independently switchable |
| Switching capacity per output | max. 500 VA at 230 V AC, cos φ = 0.6 |
| Maximum total load | 3000 VA |
| Binary inputs | 16 x binary input (freely configurable via ETS, potential-free) |
| Protection class | IP30, Class I (grounding required) |
| Radio interface | Bluetooth Low Energy (LE), range approx. 10 m |
| Mounting type | Surface-mounted (wall mounting) |
| Ambient temperature (operation) | -5 °C to +45 °C |
| Relative humidity | 5% to 93% (non-condensing) |
| Dimensions (W x H x D) | 210 mm x 180 mm x 60 mm |
| Weight | approx. 1200 g |
| KNX certification | KNX Secure, certified |
| Firmware update | Via KNX bus (ETS or KNX/USB interface) |
| Fuse | Glass fuse (replaceable) |
| Minimum switching pause | Adjustable (for inrush current protection, active by default) |
| Additional functions | Sun position calculation, ZIP guidance, motor management, scenes, logic, timers, alarm and safety functions |
Important note
Note: This is a surface-mounted device (wall mounting) with KNX Secure encryption and Bluetooth operation. Only authorized users have access to the device. Commissioning requires a compatible KNX installation and ETS software.
