KNX secure 8M230.16I AP pro | 8-ch blind actuator, runtime detection, KNX
€451,43 Incl. tax €888,62 Incl. tax. Out of stock, but available
Specifications
Information

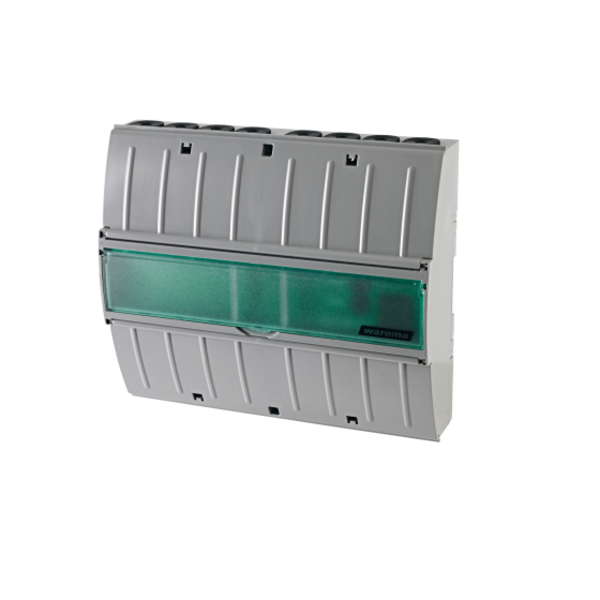

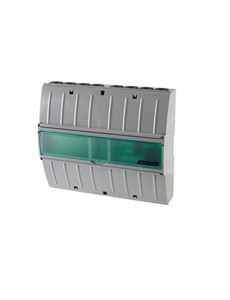

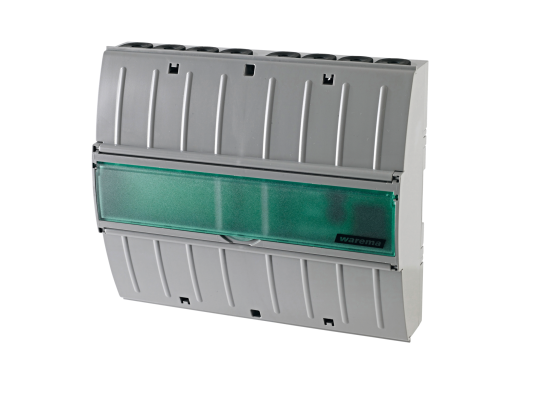

KNX Secure 8M230.16I AP pro
Surface-mounted actuator 8-channel, 16 binary inputs, runtime detection
KNX Secure
Art. No.: 2040763
The KNX Secure 8M230.16I AP pro is an advanced surface-mounted actuator for reliable, flexible, and secure control of shading, blinds, roller shutters, and other 230 V drives in buildings. Featuring state-of-the-art KNX Secure encryption, all communication is fully protected and accessible only to authorized users. The pro variant offers automatic runtime detection, intelligent firmware updates, and easy manual operation via the Bluetooth LE app. The device provides eight independent 230 V outputs, sixteen configurable binary inputs, and comprehensive automation capabilities.
Main features
- KNX Secure certified for maximum digital security
- Individual control and parameterization of 8 output channels (230 V AC)
- Up to 16 binary inputs for switching, dimming, blinds, scene buttons, status/edge analysis
- Manual operation via Bluetooth (smartphone app)
- Automatic runtime detection and integrated runtime adjustment
- Advanced automation functions, such as integrated sun position calculation, slat angle control, heating support, presence and safety features
- Replaceable glass fuse for line protection
- Direction reversal programmable via ETS
- Freely programmable function priorities (scenes, safety, presence)
- Comprehensive status objects, logic and timer functions
- Preselection of output type for various shading products with preset base parameters
- Special settings for awnings with ZIP guidance and responsive obstacle detection
- Firmware update possible via KNX bus
- Fast and reliable commissioning thanks to automatic runtime detection
- Monitoring of motor current and runtime with error message via fault object
- Limitation of manual control possible (e.g. cut-off limitation)
- Limit and measured values adjustable via ETS parameters and group objects
- Easy integration with other Warema KNX devices via additional 3-byte object
- KNX programming button and status LED for easy installation
- Bluetooth code easily modifiable or deactivatable via ETS
Technical specifications
| Operating voltage | 230 V AC, 50/60 Hz |
|---|---|
| Power consumption | approx. 10 W (operation) |
| Connection type | Plug-in terminal (screwless) |
| Outputs | 8 x 230 V AC, independently switchable |
| Switching capacity per output | max. 500 VA at 230 V AC, cos φ = 0.6 |
| Total maximum load | 4000 VA |
| Binary inputs | 16 x binary input (freely configurable via ETS, potential-free) |
| Protection class | IP30, Class I (grounding required) |
| Radio interface | Bluetooth Low Energy (LE), range approx. 10 m |
| Mounting method | Surface-mounted (wall mounting) |
| Ambient temperature (operation) | -5 °C to +45 °C |
| Relative humidity | 5% to 93% (non-condensing) |
| Dimensions (W x H x D) | 210 mm x 180 mm x 60 mm |
| Weight | approx. 1400 g |
| KNX certification | KNX Secure, certified |
| Firmware update | Via KNX bus (ETS or KNX/USB interface) |
| Fuse | Glass fuse (replaceable) |
| Minimum switching pause | Adjustable (for inrush current protection, active by default) |
| Additional functions | Sun position calculation, ZIP guidance, motor management, scenes, logic, timers, alarm and safety functions |
Important note
Note: This is a surface-mounted device (wall mounting) with KNX Secure encryption and Bluetooth operation. Only authorized users have access to the device. Commissioning requires a compatible KNX installation and ETS software.
