5380 KNX RF Blue IO dimmer actuator CC | 4x 12–48 V, 500 mA, 96 W
€111,99 Excl. tax
€162,30 Excl. tax
€135,51 Incl. tax €196,38 Incl. tax. Out of stock, but available
€135,51 Incl. tax €196,38 Incl. tax. Out of stock, but available
KNX RF dimmer with 4 constant current outputs (12–48 V⎓, 500 mA) for RGB, RGBW or Tunable White LEDs. Includes scenes, timers, KNX Data Secure. Max. 96 W. Read more
Specifications
Brand:
Weinzierl
Article number:
5380
EAN:
4260262773807
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

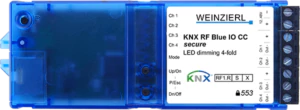

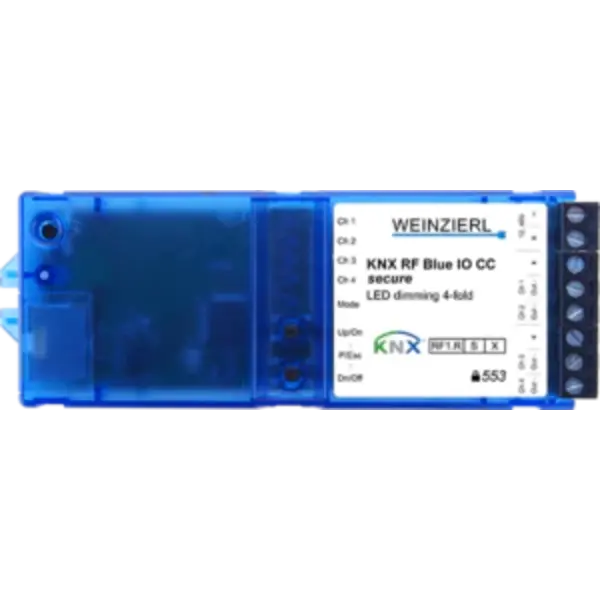

Product Description – KNX RF Blue IO 553 CC secure
Item No. 5380
Application
The KNX RF Blue IO 553 CC secure is a compact dimming actuator with 4 constant current outputs. Suitable for controlling RGB, RGBW, or Tunable White LED panels or strips, or as 4 independent dimming channels. Each channel supports switching, relative dimming, and fixed values.
Features
- 4 constant current outputs (500 mA per channel)
- Supports RGB, RGBW, Tunable White or 4 single channels
- Supply voltage: 12–48 V⎓ external
- Max total output power: 96 W (output voltage < supply voltage)
- Supports KNX Data Secure for encrypted communication
- Operates using KNX RF S Mode (868.3 MHz)
- Comfort functions: scenes, slumber fade, staircase light, sequencer
- 16 logic/timer functions available
- 2 push buttons and 5 multicolor LEDs for local operation
- Integrated antenna for wireless RF
Technical Specifications
- Protection rating: IP20 (EN 60529)
- Short-circuit & overtemp protection: electronic, non-reversible
- Power supply: 48 V⎓, approx. 9 mA at no load
- Dimensions: 132 × 46 × 20 mm
- Weight: approx. 75 g
- Housing: transparent plastic
- Operating temperature: -5 °C to +45 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 5–93 % (non-condensing)
- KNX RF interface: 868.3 MHz, FSK, 14 dBm
- Output:
- Constant current 500 mA per channel (configurable, linkable)
- Output voltage < input voltage
- Total output power up to 96 W
- Connections:
- 2-pole pluggable terminal for power
- 2× 3-pole terminals for dimming channels 1/2 and 3/4
- Wire cross-section: 1.5–2.5 mm²
Important Note
Note: This device operates exclusively via KNX RF S Mode. Designed for fixed indoor installations in dry environments. Requires external 12–48 V⎓ power supply. Observe maximum current and heat limits.
