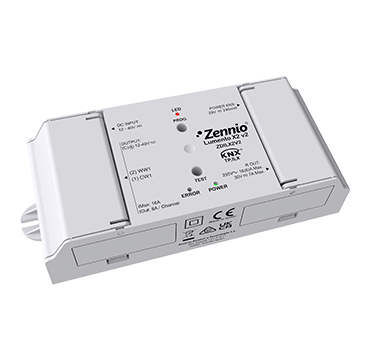

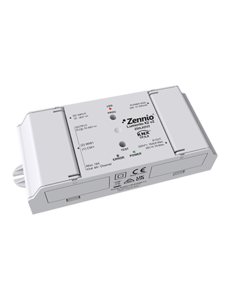

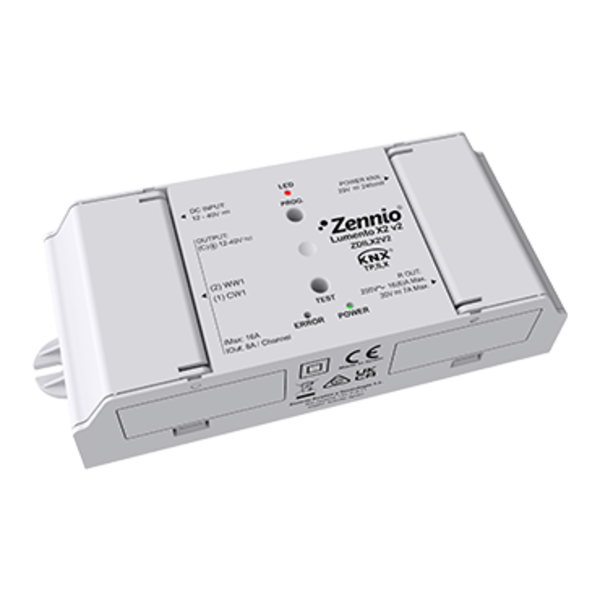

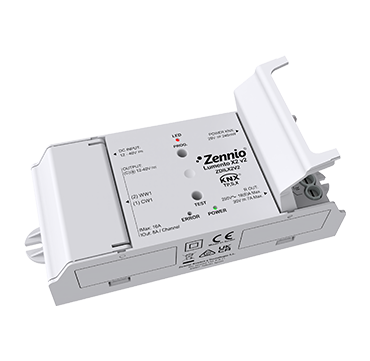

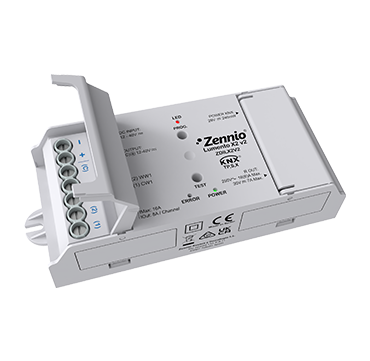

Lumento X2 v2 PWM CV Dimmer 2 channels for LED loads
€133,22 Incl. tax €179,06 Incl. tax. Out of stock, but available
Specifications
Information
Product Description Lumento X2 v2 art.nr.; ZDILX2V2
The Lumento X2 v2 is a 2-channel Constant Voltage PWM LED dimmer designed for DC LED loads with a power supply range of 12-40 V. This device offers advanced features such as Human Centric Lighting (HCL) and color temperature control. With compatibility to KNX Secure, it ensures safe and reliable communication. Each channel supports a maximum load of 8 A, with a total maximum load of 16 A per device.
Main Features:
- Constant Voltage regulation through 2 PWM channels with a frequency of 1000 Hz
- Channels configurable as independent or TW channel
- Relay output (16 A) for controlling LED power supplies or other applications
- Manual operation via test button with LED status indicator
- Full data retention in case of KNX bus failure
- Compatible with KNX Data Secure
- Compact size: 137.4 x 55 x 30.5 mm, suitable for installation in distribution boxes or false ceilings
- Protection against short circuit and overheating
Technical Specifications:
- Number of channels: 2 (Constant Voltage PWM)
- Maximum load per channel: 8 A
- Total maximum load: 16 A
- Relay output: 16 A, potential-free
- Power supply: 12-40 V DC
- KNX voltage: 29 V DC, consumption: max. 10 mA
- Operating temperature: 0°C to +55°C
- Storage temperature: -20°C to +55°C
- Humidity: 5% to 95% (non-condensing)
- Protection level: IP20
- Installation: Surface mounting in electrical panels or boxes, also suitable for false ceilings
- Cable cross-section: 1.5-4 mm²
Notes:
The Lumento X2 v2 offers flexible configuration options and is ideal for modern lighting systems utilizing KNX technology. Built-in safety features such as short-circuit and overheating protection ensure safe and reliable operation. This device supports various types of LED lighting, including monochrome, RGB, RGBW, and TW.
