Tecla RGB 55 X4 Touch sensor push button 4-fold KNX Secure
€118,27 Incl. tax €151,63 Incl. tax. In stock (2)
Specifications
Information
The new generation is the Tecla RGB 55 X4 series, featuring RGB backlighting and full KNX Secure support.

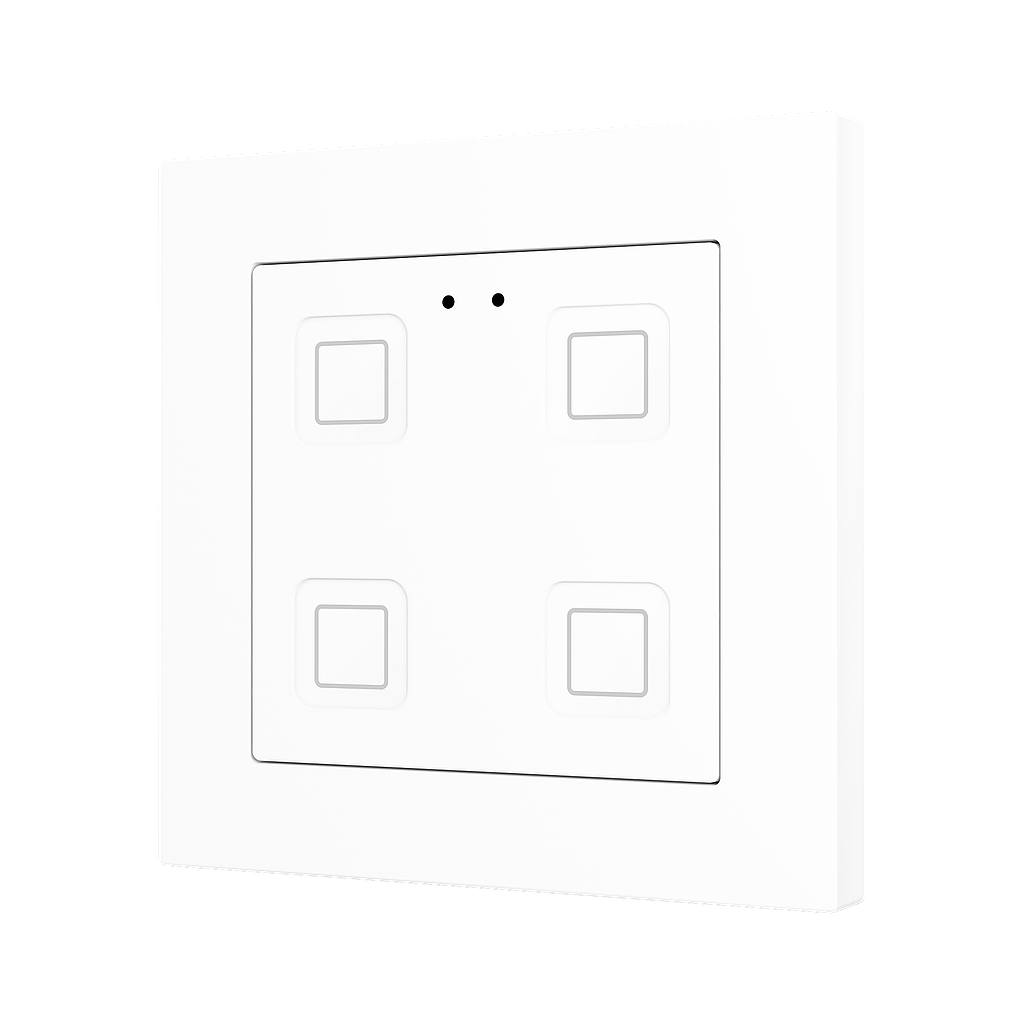

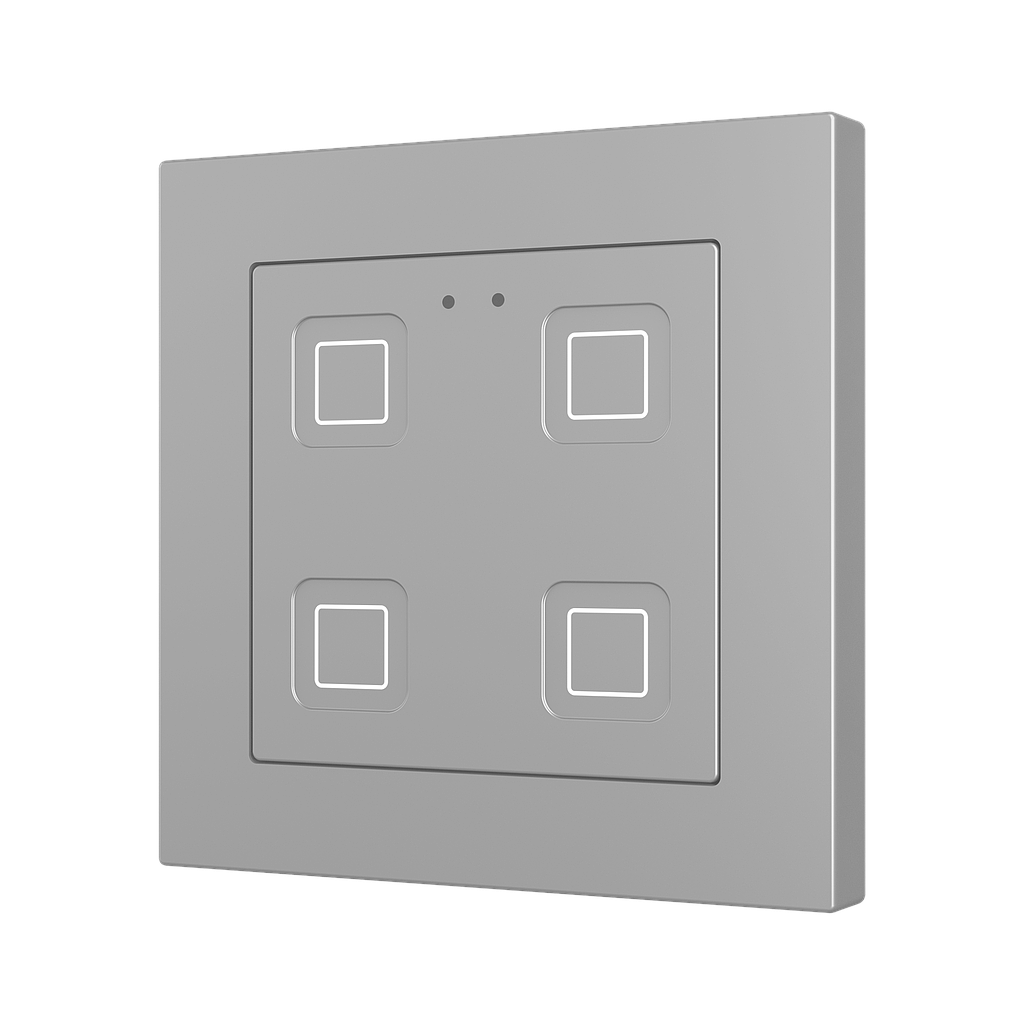

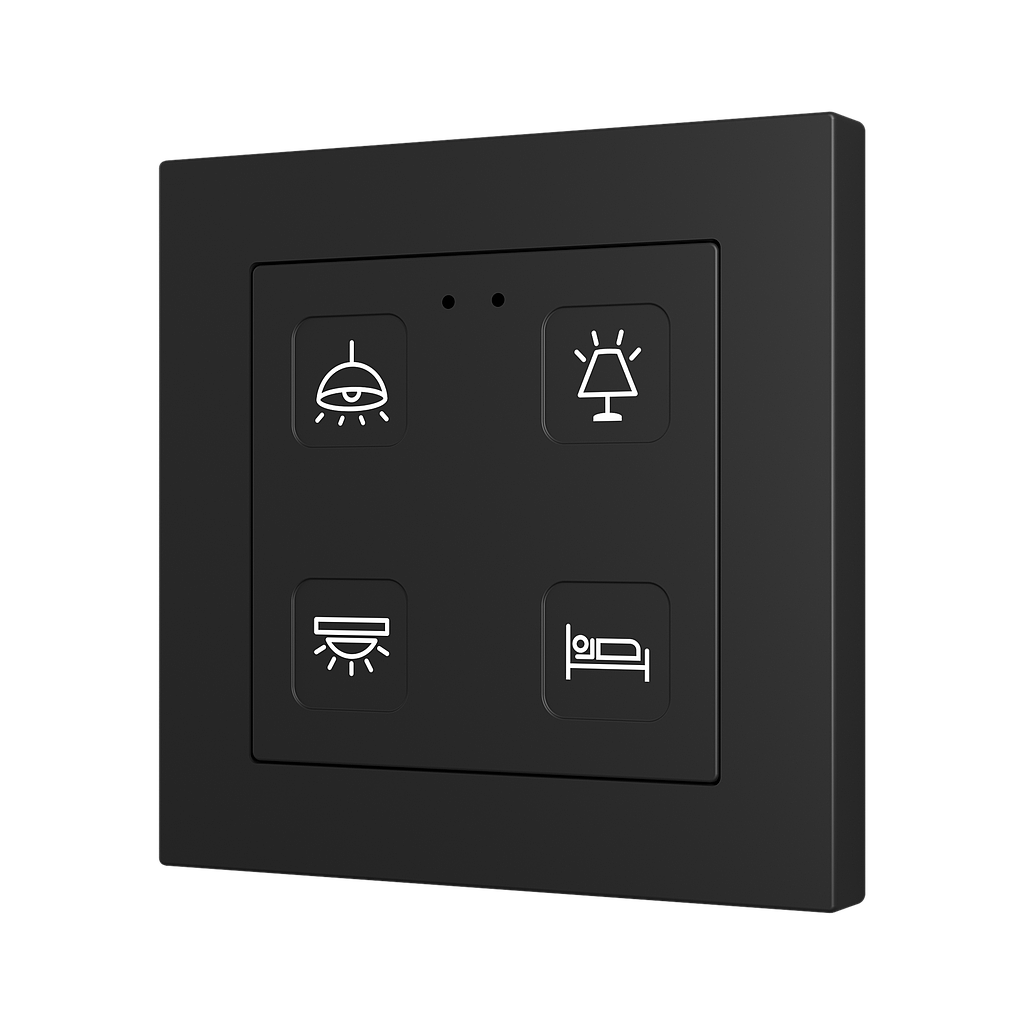

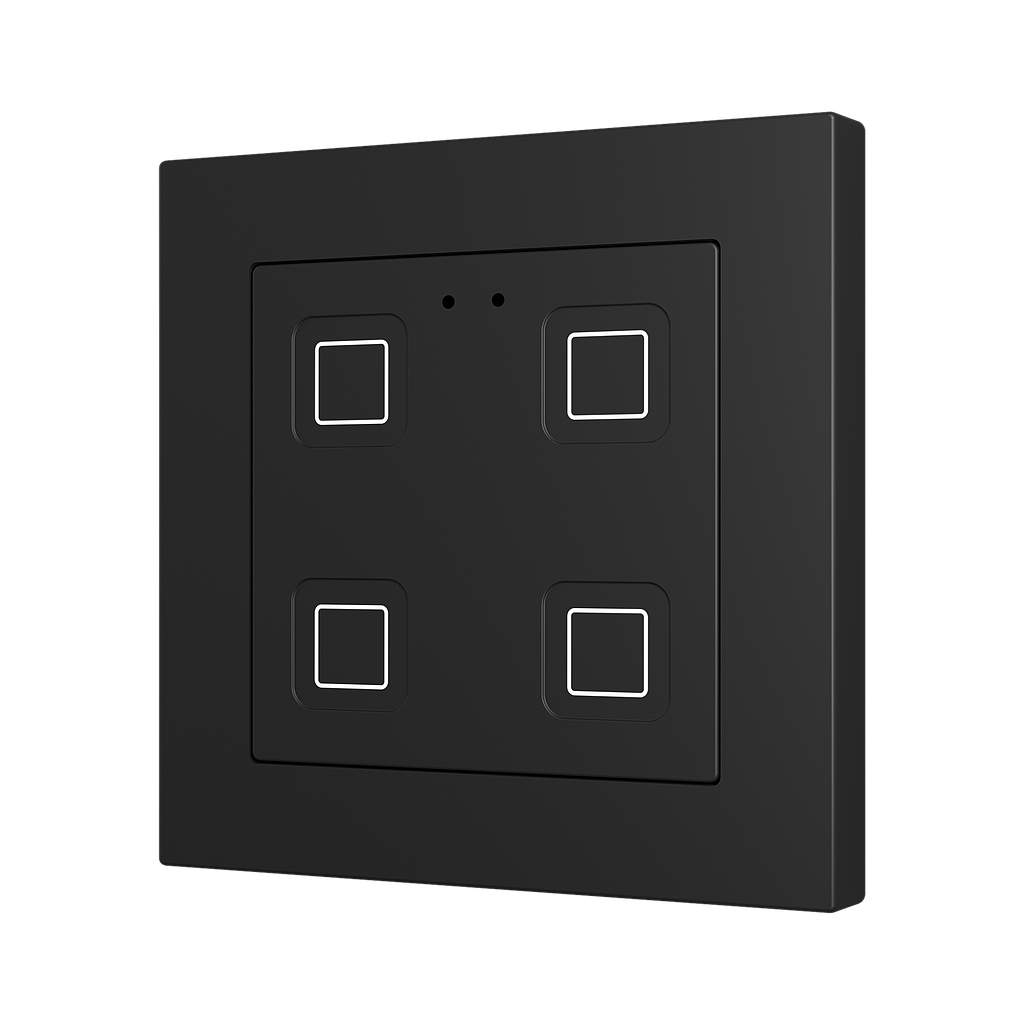

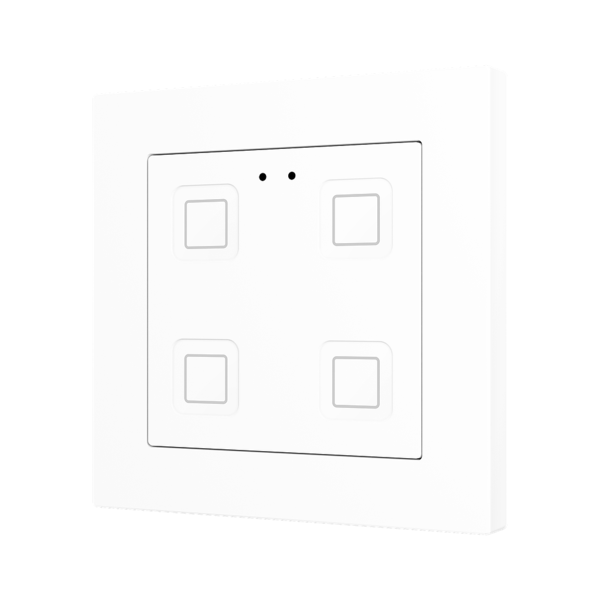

KNX Touch Sensor Tecla RGB 55 X4
The Tecla RGB 55 X4 is a high-end capacitive KNX touch sensor featuring four independent touch zones, RGB backlighting and full KNX Secure compatibility. Its touch surface is fully customisable, while the lighting adapts automatically thanks to the built-in proximity and ambient light sensors. The device also includes an integrated thermostat, internal temperature sensor and two configurable analogue/digital inputs. A powerful and versatile solution for modern KNX automation in residential and commercial buildings.
Main Features
- 4 capacitive touch zones with RGB backlighting and fully configurable icons.
- Full support for KNX Data Secure.
- Integrated thermostat and internal temperature sensor.
- 2 analogue/digital configurable inputs for sensors, switches or external temperature probes.
- Proximity sensor for automatic backlight activation.
- Ambient light sensor for intelligent brightness control.
- Acoustic feedback confirming user interaction.
- Full data retention in case of KNX bus failure with automatic recovery.
- Compatible with 55×55 mm frames and Zennio ZS55 switches and sockets.
- Suitable for installation in European, Italian, American and Australian mounting boxes.

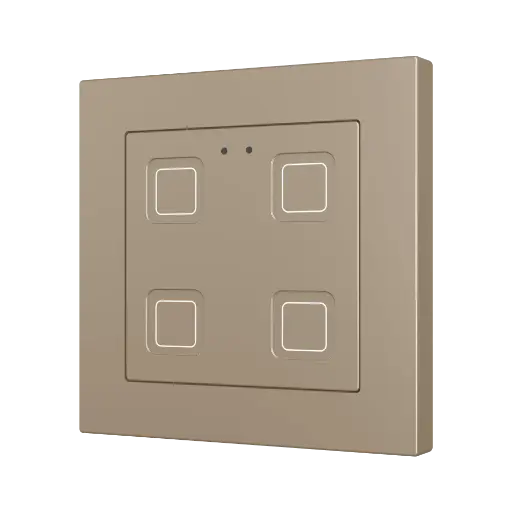

- Available in white, silver, anthracite, champagne and custom-design finishes.
Technical Specifications
| Model | Tecla RGB 55 X4 (ZVITR55X4) |
|---|---|
| Dimensions | 55.5 × 55.5 × 37.3 mm |
| Power Supply | 21–31 VDC (typical 29 VDC) |
| Maximum Consumption |
|
| Internal Temperature Sensor |
|
| Number of Inputs |
|
| Protection Rating | IP20 (indoor use) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Housing Material | PC (front) / PC+ABS (rear), halogen-free |
| Weight | 62 g |
| KNX Interface | Integrated KNX BCU (TP1-256), KNX Data Secure |
| Certifications | CE, RCM |
Note
Continuous RGB backlighting may slightly influence the accuracy of the internal temperature sensor. For optimal performance, ensure the device parameters match the installation environment.
