Tecla RGB 55 X2 Touch sensor push button 2-fold KNX Secure
€107,52 Incl. tax €137,85 Incl. tax. Out of stock, but available
Specifications
Information

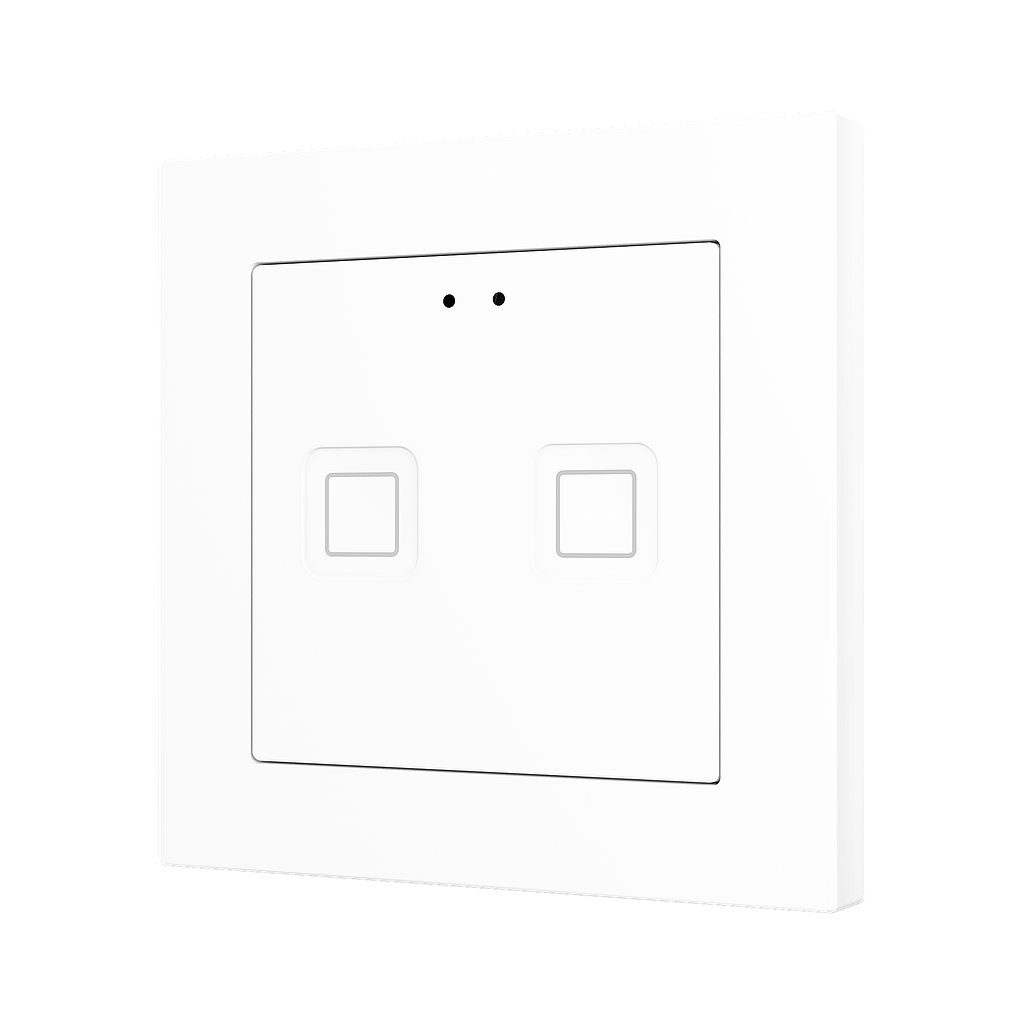

KNX Touch Sensor Tecla RGB 55 X2
The Tecla RGB 55 X2 is a high-end capacitive KNX touch sensor featuring two independent touch zones, RGB backlighting, KNX Data Secure support and a fully customisable touch interface. It integrates seamlessly with 55×55 mm frames and includes acoustic feedback, an integrated thermostat, internal temperature sensor, proximity sensor and two analogue/digital inputs. A modern and versatile solution for residential and commercial KNX automation.
Main Features
- 2 capacitive touch zones with RGB backlighting and customisable icons.
- Full support for KNX Data Secure.
- Integrated thermostat and internal temperature sensor.
- 2 analogue/digital inputs for sensors, switches, detectors or external temperature probes.
- Proximity sensor for automatic activation of the backlight.
- Ambient light sensor for intelligent brightness control.
- Acoustic feedback confirming user interactions.
- Complete data retention in case of KNX bus failure with automatic recovery.
- Compatible with 55×55 mm frames and Zennio ZS55 switches and sockets.
- Suitable for installation in standard European, Italian, American and Australian back boxes.

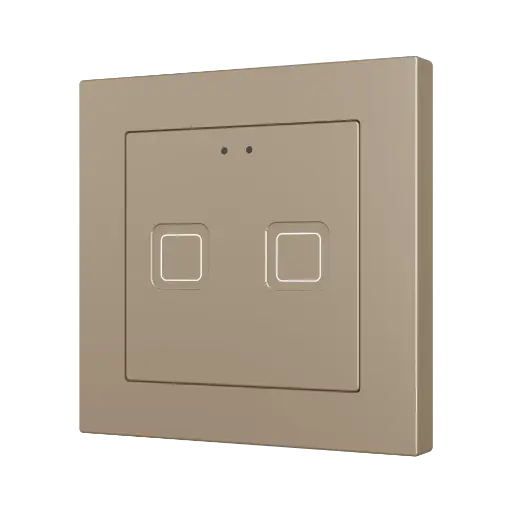

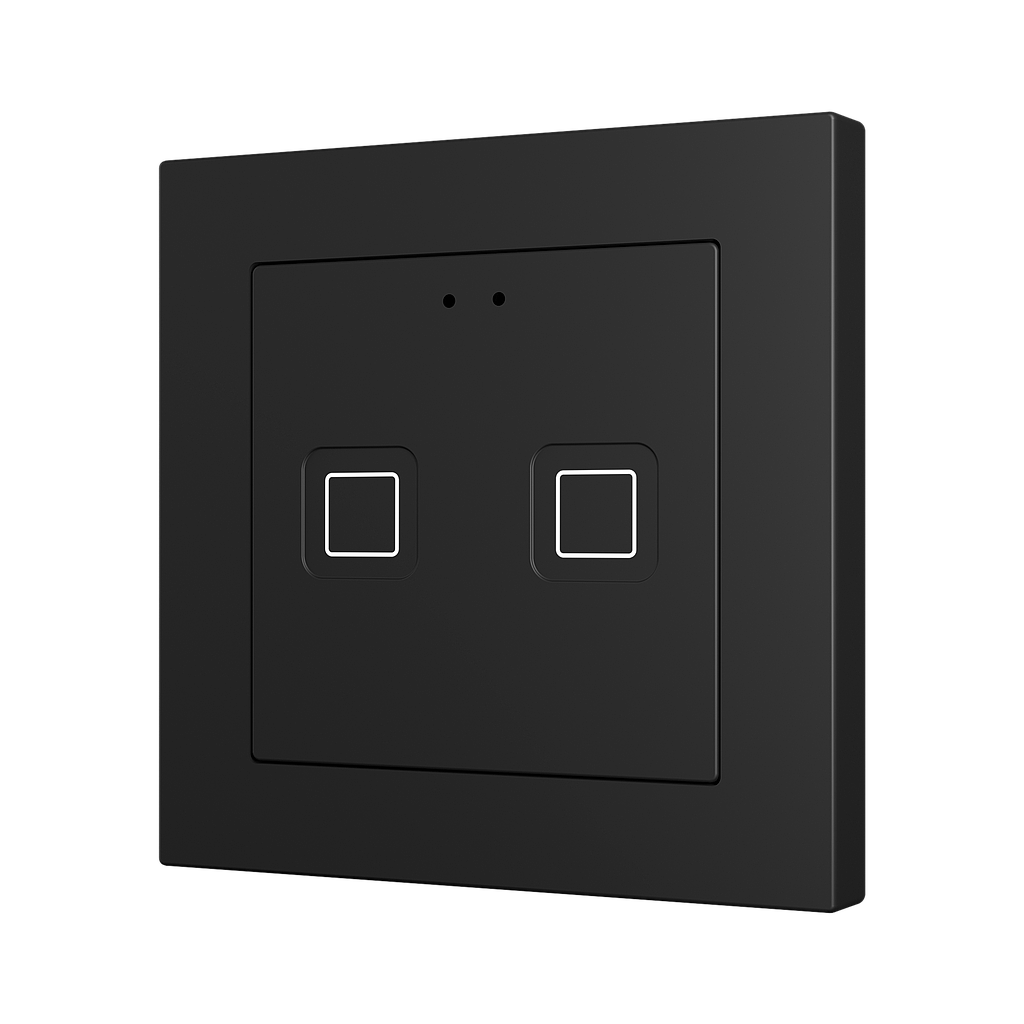

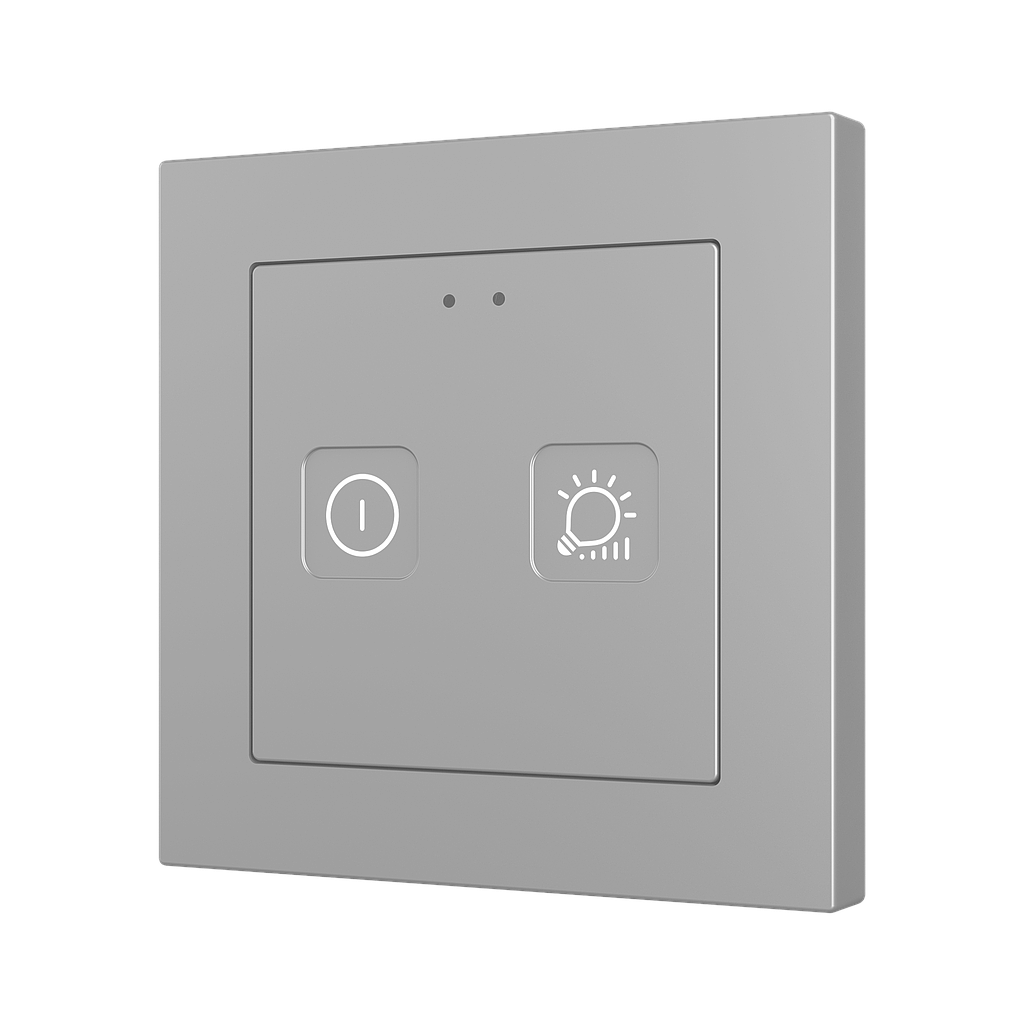

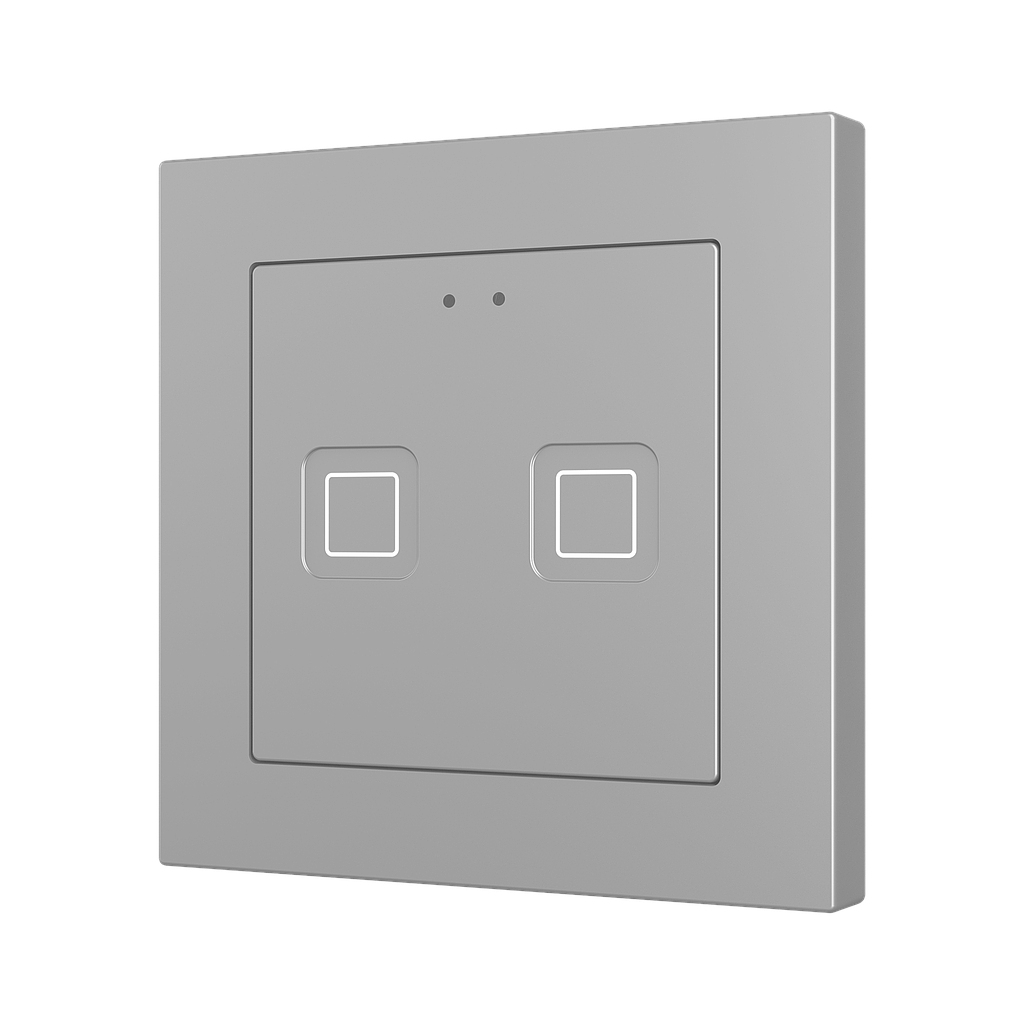

- Available colours: white, silver, anthracite and custom design.
Technical Specifications
| Model | Tecla RGB 55 X2 (ZVITR55X2) |
|---|---|
| Dimensions | 55.5 × 55.5 × 37.3 mm |
| Power Supply | 21–31 VDC (typical 29 VDC) |
| Maximum Consumption |
|
| Internal Temperature Sensor |
|
| Number of Inputs |
|
| Protection Class | IP20 (indoor use) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Relative Humidity | 5%–95% (non-condensing) |
| Housing Material | PC (front) / PC+ABS (rear), halogen-free |
| Weight | 62 g |
| KNX Interface | Integrated KNX BCU (TP1-256), KNX Data Secure |
| Certifications | CE, RCM |
Note
Continuous RGB backlighting may slightly affect the accuracy of the internal temperature sensor. For optimal performance, parameter settings should match the installation environment.
