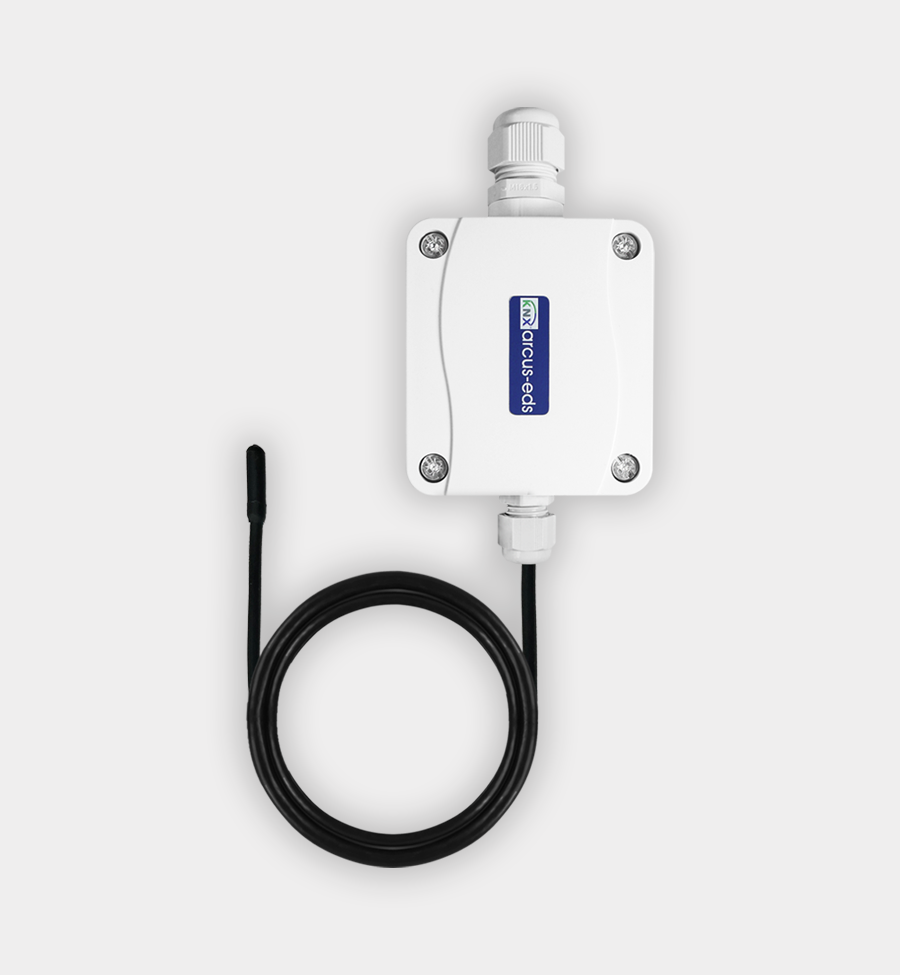

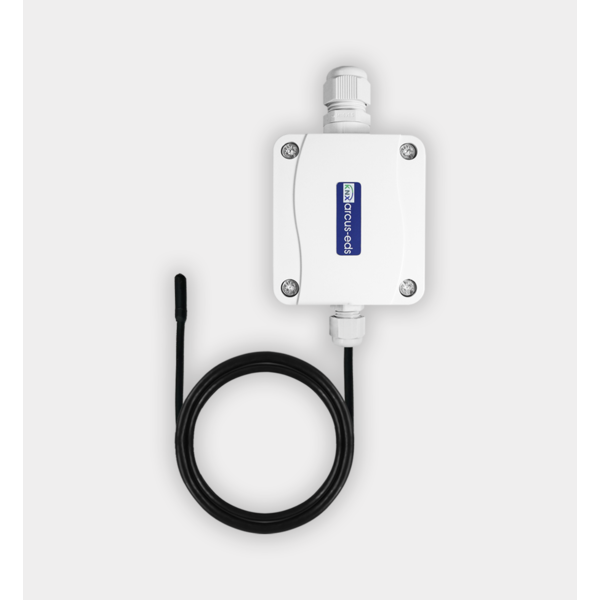

SK10-TC-GTF-TPE KNX temperature sensor, IP68 probe / IP65 housing
€200,23 Incl. tax €267,87 Incl. tax. Not in stock in our warehouse, but available to order.
Specifications
Information
KNX Water Temperature Sensor – SK10-TC-GTF-TPE
Art. No. 30511057
The SK10-TC-GTF-TPE from Arcus-EDS is a high-quality KNX sensor designed for accurate measurement and control of water temperature. It features a durable rubber temperature probe (IP68 rated) and a weather-resistant plastic housing (IP65). The sensor is ideal for heating and cooling applications and integration into building automation systems.
Applications
- Control of supply and return water temperature in HVAC systems
- Overheat and frost protection in piping systems
- Integration into KNX building automation solutions
- Monitoring of water temperatures in technical systems
Functions
- Accurate water temperature measurement via IP68 rubber probe
- Optional weighted measurement with external mixed temperature input
- Control for heating, cooling, or combined operation
- Selectable setpoints: Comfort, Standby, Economy, Protection
- Setpoint changes via KNX HVAC objects
- Minimum and maximum temperature logging
- Configurable heat and frost alarms
- Adjustable temperature limits
- Fan control via external inputs
- Control output: 0–100% or PWM for thermal actuators
- Valve flush function for maintenance or anti-calc
- Second controller available as auxiliary
- Four logic blocks for linking internal and external signals
Technical Specifications
| Article Number | 30511057 |
| Measured Quantity | Temperature |
| Application | Water temperature regulation |
| Sensor | Rubber temperature probe (IP68) |
| Temperature Range | -40 to +105 °C |
| Resolution | 0.02 °C |
| Accuracy | Class B, ±(0.3 °C + 0.005*T) |
| Control | Integrated |
| Power Supply | KNX Bus 21–32 VDC |
| Power Consumption | Approx. 240 mW (at 24 VDC) |
| Ambient Temperature | -25 to +80 °C (operation & storage) |
| Humidity | 0–100% RH, non-condensing |
| Bus Coupler | Integrated |
| Auxiliary Power | Not required |
| Commissioning | From ETS version 4 (HLK305) |
| Connections | KNX 2-pole clamps (red/black) |
| Sensor Protection | IP68 (saltwater resistant) |
| Housing Protection | IP65 |
| Housing Material | Plastic |
| Dimensions | 72 x 64 x 40 mm |
Important Note
Note: The SK10-TC-GTF-TPE is intended for measuring contact water temperature in piping systems. Its IP68-rated probe is suitable for wet and submerged conditions. Correct installation on thermally conductive surfaces is essential for accurate readings.
