Weinzierl

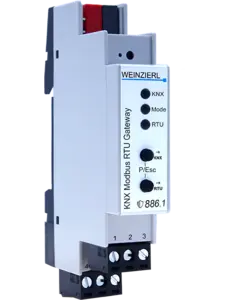

Compact gateway between KNX TP and Modbus RTU. Operates as master or slave, with up to 250 configurable channels, KNX Secure, bus-powered, direct ETS testing.

Compact KNX USB interface between PC and KNX bus, ETS ready, supports KNX long frames, galvanic isolation, BAOS V2, HID/cEMI, DIN rail mount.

The KNX IP Router 752 secure connects KNX networks over IP, offering secure AES-128 encrypted communication. Supports up to 8 connections with an advanced filter table.

The KNX IP Interface 740.1 wireless provides wireless access to the KNX bus via WIFI. It serves as a programming interface for ETS®, with WPA2 security, working as an access point or client. Power supplied via KNX bus.

Compact KNX-Modbus gateway for Modbus TCP. Up to 250 data points, master/slave, KNX Security, local control, tunneling interface, powered via KNX bus.

The Weinzierl KNX BAOS Module 838 kBerry for Raspberry Pi provides KNX connectivity via a serial port. It supports up to 1000 data points and is configured via ETS software.

The Weinzierl KNX DMX Gateway 544 connects KNX and DMX512, a protocol for lighting control in stage technology, with 64 configurable channels. Supports master and slave mode.

Universal KNX input-output module with 48 digital channels, configurable as input or output. Suitable for lighting, blinds, energy measurement, and more. OLED display for local operation.

Compact KNX RF/TP coupler for seamless integration of KNX RF devices with KNX Bus Twisted Pair. Supports long frames, KNX Data Security, Security Proxy, and segment coupling. Compatible with ETS 5 and above.

KNX IP Interface 732 secure provides secure KNX-to-IP communication, supports ETS® programming, and allows secure access from any LAN point. Powered via KNX bus.

Compact KNX IP Interface for reliable LAN/Ethernet to KNX Bus connection. Powered by KNX bus, diagnostic LEDs and buttons, suitable for fixed installation.

KNX USB Interface Stick 332 provides a fast and reliable connection between PC and KNX bus, supports long telegrams for more efficient downloads, and is ETS-compatible.

KNX IP Multi IO 580 provides 48 flexible I/Os for building automation. Each input can serve as a pulse or binary counter, and each output can control lights and relays.

Serial RS-232 interface for seamless integration of non-KNX devices into KNX networks, supports FT1.2 and BAOS protocol. Easy installation, powered by KNX bus.

Efficient KNX bus power supply with 640 mA, integrated USB interface, and OLED display. Equipped with choke and diagnostics, ideal for compact setups.

The Weinzierl KNX IP BAOS 777 provides visualization, control, email notifications, and time synchronization for KNX installations. Includes web server and easy configuration via ETS software.

Compact KNX IP router (1 TE) for line coupling via LAN and ETS interface. Bus powered, with filter table, telegram buffer, and diagnostic LEDs.

Compact RGB, RGBW, and Tunable White dimming actuator with 4 PWM outputs. Ideal for LED panels, strips, or 4 dim channels. Offers scenes, staircase light, and logic functions.

Compact KNX switch actuator with 1 bi-stable relay (230 V/16 A) and 2 binary inputs (12-230 V). Supports scenes, staircase lighting, heating, and zero-crossing detection.

KNX push-button interface with 4 potential-free inputs for switches/contacts, 2 LED outputs, test buttons, status LEDs and KNX Data Security support.

This Multi IO Extension Shutter allows precise control of blinds and shutters via KNX Multi IO devices. Integrated fuse and LED for optimal security.

KNX-RF dimming actuator with 4 PWM outputs (12–24 V⎓, 6 A total, 144 W) for RGB(W), Tunable White or 4 channels. Includes scenes, timers and KNX Data Secure.

This compact shutter actuator with two binary inputs controls blinds, shutters, and drives. Easy operation via KNX and conventional switches from 12 to 230 V.

KNX RF USB Interface Stick 340 enables bidirectional communication between PC/laptop and KNX RF network. Compatible with ETS 5+, supports KNX Secure programming and cEMI protocol. SDK available.
