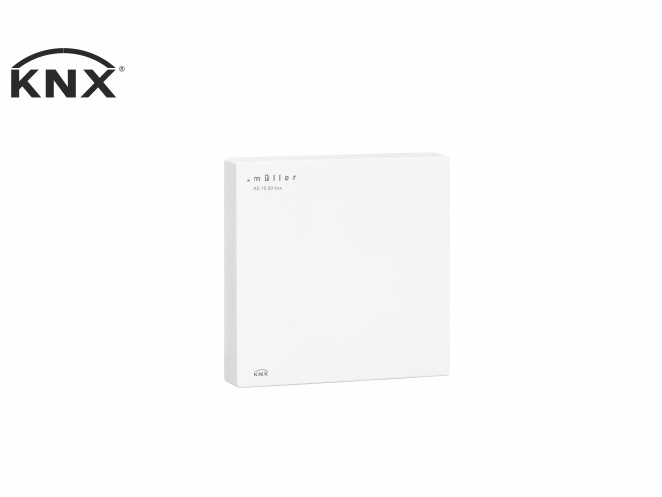

MÜLLER AS10.00knx KNX-Buzzer | Standard

84,94 Excl. tax €111,39 Excl. tax
€102,78 Incl. tax 134,78 Incl. tax.
In stock (5)
Unit price: €84,94 / Piece
This KNX buzzer offers versatile configuration options with adjustable volume levels and tone sequences. Easy installation and handling with ETS support. Compact design in studio white, suitable for wall mounting. Read more

Specifications

Brand:
Hugo Müller
Article number:
AS 10.00 knx
EAN:
4022709240743
Availability:
In stock (5)
Delivery time:
Will be shipped within 1 to 2 working days.

Information

Manuel

KNX Buzzer | Standard

This KNX buzzer offers versatile configuration options for various building automation applications. The buzzer can be configured with up to three input objects and features adjustable volume levels (low, medium, loud) and tone sequences (continuous or custom sequence). The clear ETS structure makes configuration and use very simple.

Technical Specifications:

  • Operating voltage: via KNX bus voltage
  • Bus current: < 12 mA
  • Bus system: KNX
  • Volume levels: low (approx. 40 dB), medium (approx. 55 dB), loud (approx. 70 dB)
  • Tone sequence: continuous or custom sequence
  • Permissible ambient temperature: -10 to +45 °C
  • Housing: self-extinguishing thermoplastic
  • Dimensions: 55 x 55 x 12 mm
  • Housing color: Studio white (similar to RAL 9016)
  • Mounting: surface-mounted, wall mounting or with a flush-mount plate
  • Protection rating: IPX1 (IPX4 when using a mounting bracket)
  • Protection class: III with proper installation

Note: The buzzer is available in other colors upon request. An optional flush-mount plate is also available for seamless integration into switch systems.
