KNX Presence Detector | MultiSensor | Light, Temp., Humidity, Sound
€176,66 Incl. tax €271,04 Incl. tax. Out of stock, but available
Specifications
Information
Link zur Website von eelectron (Englisch)

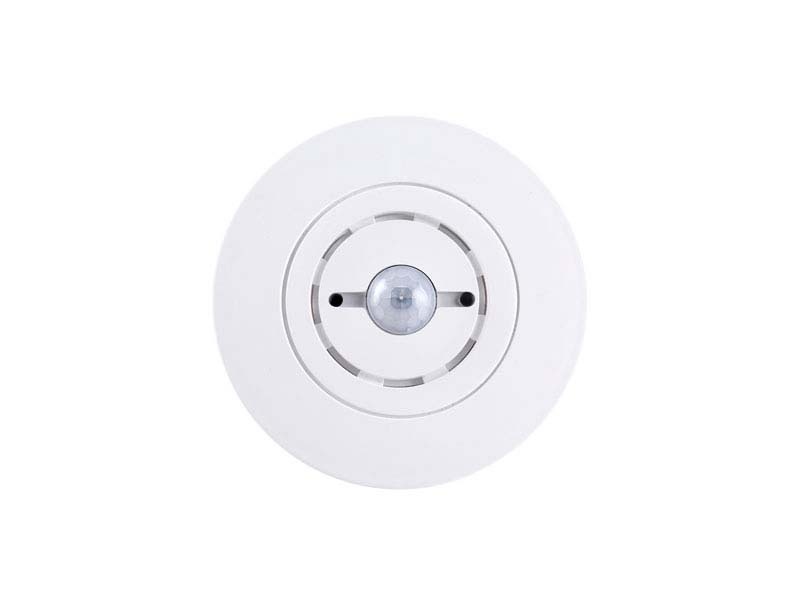

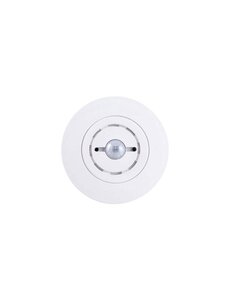

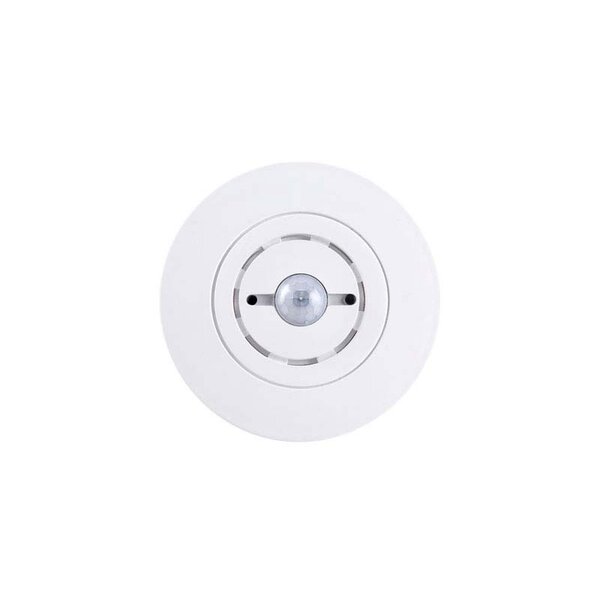

Eelectron KNX MultiSensor Presence Detector
Art. No.: PD00E02KNX (white)

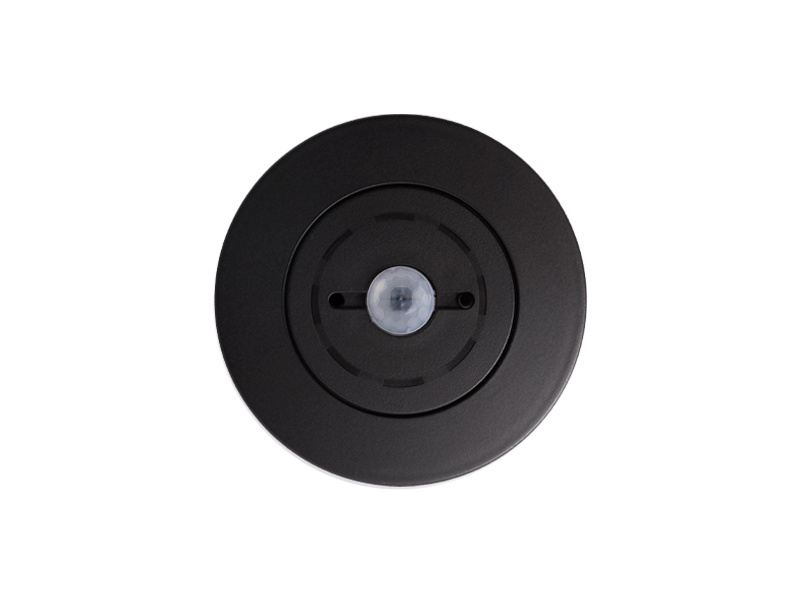

Art. No.: PD00E02KNX-3 (black)
Advanced KNX MultiSensor for ceiling mounting with presence, light, temperature, humidity and sound detection. Designed for energy-efficient climate and lighting control in residential, office and hotel environments.
Main features
- 5 independently configurable detection channels for presence and brightness control
- Integrated sensors for light (50–20,000 lx), temperature (–5 °C … +45 °C), humidity (0–100 % RH) and sound
- 3 digital inputs, one configurable as analog for NTC temperature probe
- Integrated thermostat with PI controller for heating/cooling, 2- or 4-pipe fan coils
- “Virtual Holder Logic” for accurate presence detection in hotel applications
- Support for “Circadian Rhythm” control of brightness and color temperature
Technical data
- Power supply: via KNX bus (21 – 32 V DC)
- Current consumption: ≤ 10 mA
- Mounting: ceiling mounting, recommended height up to 4 m
- Detection range: at 2.5 m height approx. Ø 6 m, at 4 m height approx. Ø 8 m (depending on sensitivity and environment)
- Connections: 6-pin connector, 3 digital/analog inputs
- Protection class: IP20 (EN 60529)
- Dimensions: Ø 81 × 37 mm
- Operating temperature: –5 °C … +45 °C
- Storage temperature: –20 °C … +55 °C
- Weight: approx. 120 g
Important note
Avoid direct sunlight or artificial light on the sensor to prevent incorrect readings. Mount the device on a stable surface, free from heat sources or moving objects within the detection area. Calibrate light measurement via ETS for accurate lux readings.
Also explore other Eelectron KNX motion and presence detectors in our webshop, such as the Basic, Multi and Space versions, for extended functions and application options.
