KNX presence detector | Basic
€136,73 Incl. tax €210,54 Incl. tax. Out of stock, but available
Specifications
Information
Link zur Website von eelectron (Englisch)
KNX Presence Detector | Basic Model

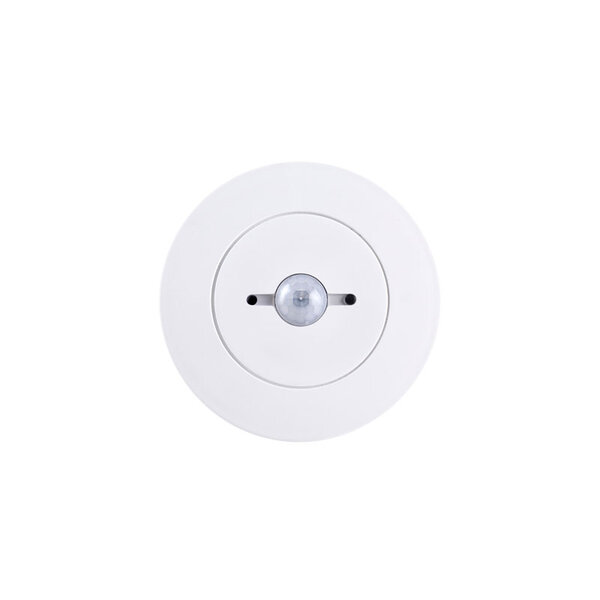

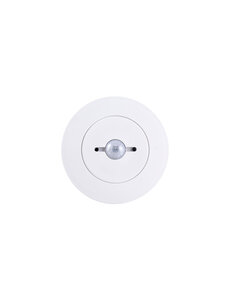

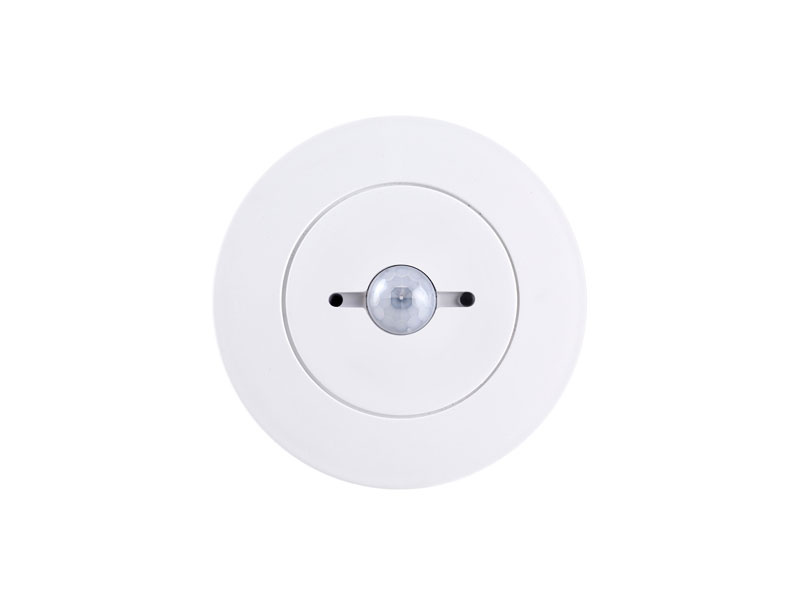

Part No.: PD00E00KNX – White

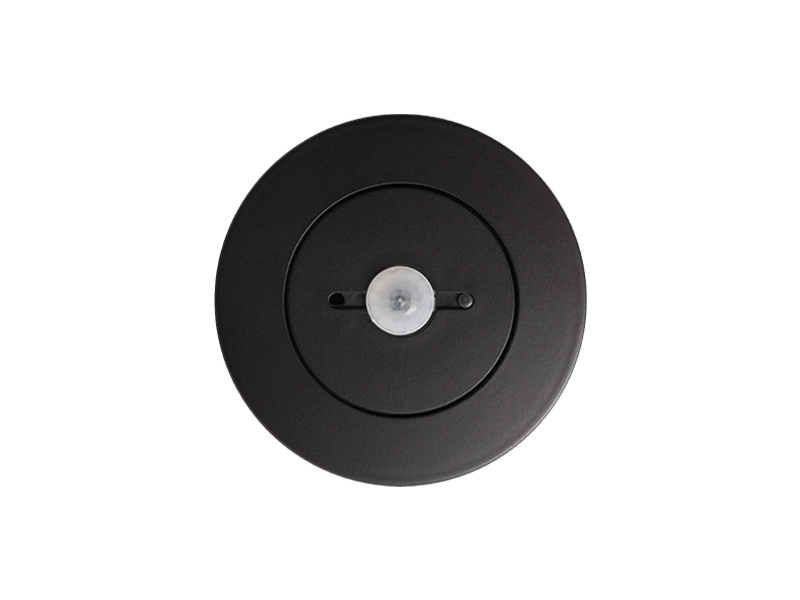

Part No.: PD00E00KNX-3 – Black
The Eelectron KNX Presence Detector Basic is designed for ceiling mounting and available in white and black versions. The sensor detects presence through a passive infrared sensor (PIR) and includes 3 digital inputs for buttons or switches, which can be used for on/off control, dimming, shutters, or scene functions. Ideal for residential, hotel, and commercial building applications.
- Power supply: via KNX bus 21–32 V DC (SELV)
- Current consumption: ≤ 10 mA
- 3 digital inputs (potential-free)
- Input cable length: ≤ 30 m (twisted pair)
- Mounting height: recommended 2.5 – 4 m (ceiling installation)
- Detection range: up to approx. 6 m radius (depending on height and environment)
- Passive infrared sensor (PIR) with 5 configurable channels
- 12 logic blocks for logical, threshold, and conditional operations
- Supports “Virtual Holder Logic” for hotel room applications
- Extended functionality via ETS configuration
- Housing: PC-ABS plastic
- Dimensions: Ø 81 x 37 mm
- Weight: approx. 120 g
- Protection rating: IP20 (according to EN 60529)
- Mounting: ceiling (flush or surface with accessory)
- Operating temperature: -5 °C … +45 °C
- Storage temperature: -20 °C … +55 °C
- Relative humidity: max. 90% (non-condensing)
- Certifications: KNX, CE, RoHS, EMC Directive 2014/30/EU
Important note
The KNX Presence Detector Basic is intended for fixed indoor installations in dry environments only. Avoid direct sunlight or heat sources within the detection area. When separation between SELV and 230 V wiring is not possible, a minimum distance of 4 mm must be maintained between cables. Installation and commissioning must be carried out by a qualified electrician.
Related products
In addition to the Basic model, other variants of the same series are available, including Standard, Multi, and Space versions. These models offer additional functions such as light, temperature, humidity, and sound detection. See related products for the complete range.
