KNX Presence Sensor Space BLE | Light, Temp, Humidity & Multisensor
€214,17 Incl. tax €329,12 Incl. tax. Out of stock, but available
Specifications
Information
Link zur Website von eelectron (Englisch)

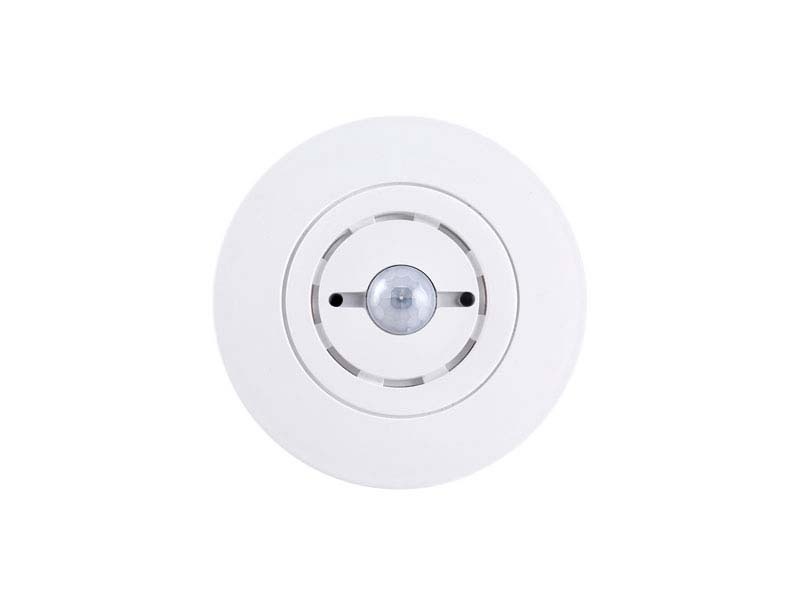

KNX Space BLE Presence Sensor Multisensor

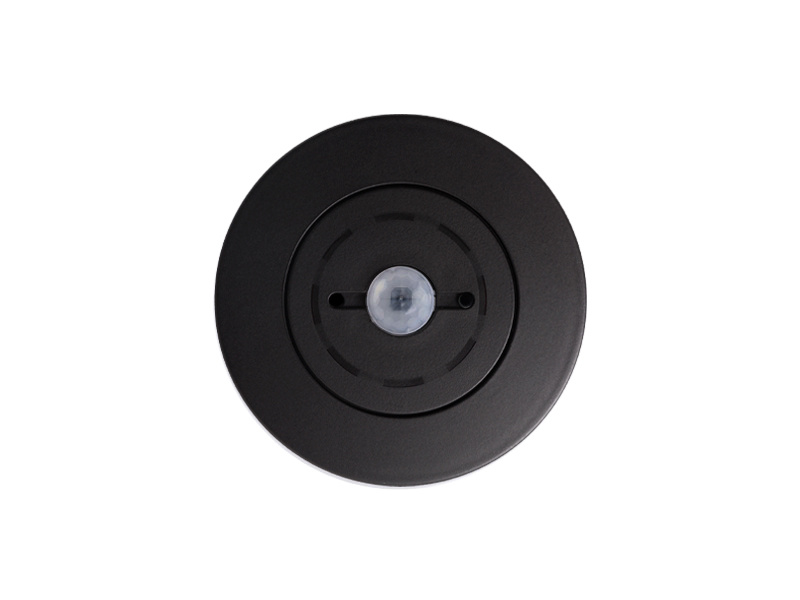

Art. no.: PD00E13KNX (white) | PD00E13KNX-3 (black)
What is BLE?
This version includes an integrated BLE beacon (Bluetooth Low Energy) that transmits at configurable intervals and signal strength. Compatible with iBeacon® and Eddystone®. Via a mobile app, smartphones/tablets can use the beacon signal for notifications, access and location logic, and room/zone management. BLE complements KNX and enables context-aware functions in applications such as hospitality and office environments.
Multifunctional KNX presence sensor for ceiling installation with integrated light, temperature, humidity and sound detection. Detects presence, space usage and activity (occupancy) and supports BLE beacon functionality for location-based and app-driven automation.
Main features
- Passive infrared sensor with 5 configurable detection channels
- Constant light control (automatic/semi-automatic)
- Temperature and humidity measurement (PI controller support)
- Sound detection for areas outside PIR field of view
- Occupancy & space usage monitoring (activity/usage analysis)
- Integrated BLE beacon (compatible with iBeacon® and Eddystone®)
- 3 digital inputs for switching, dimming, blinds or scenarios
- 1 input configurable for NTC temperature probe
- Integrated 2-stage PI thermostat function
- “Virtual Holder Logic” for hotel room management
- Compatible with E-Lock wireless door lock interface (IC01H10DLS, up to 8 doors)
- 12 logic blocks with threshold, algebraic or conditional operations
- Circadian Rhythm function for dynamic colour temperature and brightness
Technical specifications (summary)
- Power supply via KNX bus: 21–32 V DC
- Current consumption: ≤ 10 mA (≤ 15 mA with IC01H10DLS)
- Light measurement range: 50–20,000 lux
- Temperature range: -5 °C to +45 °C, resolution 0.1 °C
- Humidity range: 0–100 %RH, resolution 0.1 %RH
- Inputs: 3 digital (potential-free), 1 optional analog (NTC)
- Protection rating: IP20 (indoor)
- Housing: PC-ABS
- Dimensions (Ø x H): 81 × 37 mm
- Weight: approx. 120 g
- Operating temperature: -5 °C to +45 °C
- Storage temperature: -20 °C to +55 °C
Installation & detection
- Ceiling installation
- Maximum installation height: up to 4 metres
- Detection depends on temperature difference between ambient air and moving persons/objects
Important note
Light measurement is indirect due to ceiling position; calibration using a lux meter is recommended. Avoid direct exposure to sunlight or artificial light on the sensor.
Also explore other Eelectron KNX motion and presence sensors in our webshop, such as the Basic, Multi and Space models, for additional features and application possibilities.
