KNX Presence Detector | Standard | With Lighting Control
€143,99 Incl. tax €221,43 Incl. tax. Out of stock, but available
Specifications
Information
Link zur Website von eelectron (Englisch)
KNX Presence Detector | Standard | With Lighting Control

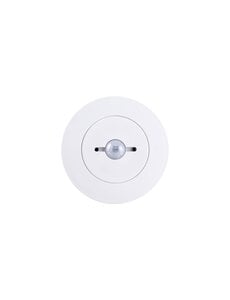

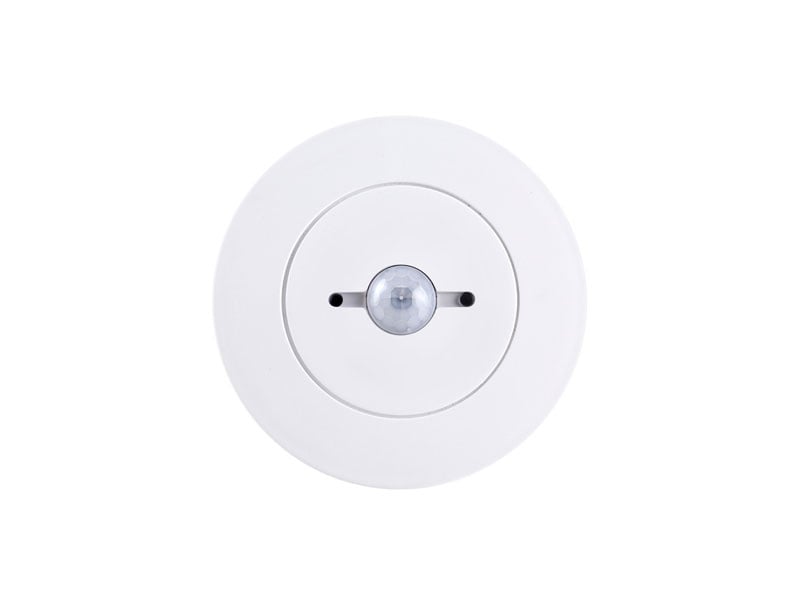

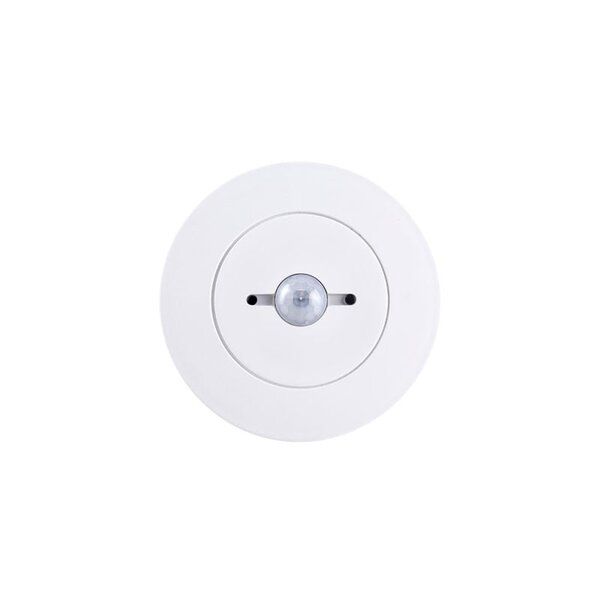

Art. No.: PD00E01KNX (white)

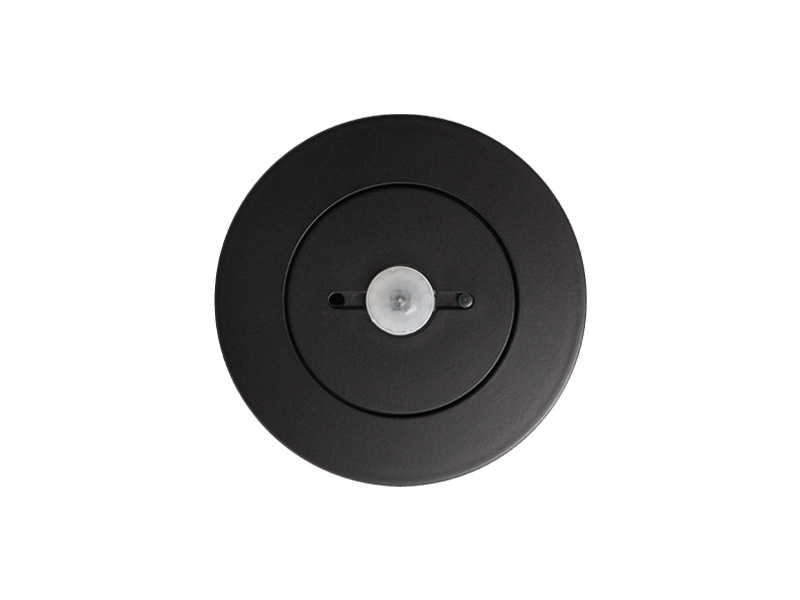

Art. No.: PD00E01KNX-3 (black)
The Eelectron KNX Presence Detector Standard is a ceiling-mounted PIR sensor for precise presence detection and automatic lighting control. The integrated illuminance sensor regulates lighting based on the measured lux value (50–20,000 lx), delivering optimal comfort and energy savings in residential, office, and hotel applications.
Key Features
- PIR presence detection with 5 configurable detection channels
- Constant light control with automatic or semi-automatic operation
- Support for Circadian Rhythm logic for time-of-day lighting
- 3 digital inputs for switching, dimming, blinds, and scenes
- 1 input configurable as an analog NTC temperature input (external probe optional)
- 12 logic blocks for conditional, threshold, and algebraic logic
- Virtual Holder Logic for hotel rooms (door/window contact integration)
- Support for 2-stage heating/cooling control with PI controller (when NTC input is used)
Technical Data
- Power supply: via KNX bus 21–32 V DC, consumption ≤ 10 mA
- Connections: 6-pole cable connector (KNX bus, AWG24)
- Digital inputs: 3× dry contact, max. cable length 30 m
- Analog input: suitable for NTC probes (TS01A01ACC, TS01B01ACC, TS01D01ACC)
- Illuminance sensor: 50–20,000 lx (indirect measurement; ETS calibration recommended)
- PIR detection: 5 independent channels; dependent on temperature differential and movement
- Detection area: up to ~6 m diameter at 2.5 m mounting height (environment/setting dependent)
- Mounting height: recommended 2.5–4 m (ceiling, vibration-free)
- Dimensions: Ø 81 × 37 mm
- Ingress protection: IP20 (EN 60529)
- Operating temperature: -5 °C … +45 °C
- Storage temperature: -20 °C … +55 °C
- Relative humidity: max. 90%, non-condensing
- Housing: PC-ABS (white or black)
- Weight: approx. 120 g
- Standards & certification: KNX, CE, EN 50491-3, EN 50491-5-1/-5-2, EMC 2014/30/EU, LVD 2014/35/EU
Important Note
The Standard version has no integrated temperature or humidity sensor. For ambient measurements (temperature, humidity) and sound detection, choose the KNX MULTI or KNX SPACE versions.
