KNX Presence Detector | Space | Light, Temp, Humidity & Sound

Name: eelectron KNX Presence Detector | Space | Light, Temp, Humidity & Sound
Brand: eelectron
Price: 157.00 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€157,00 Excl. tax €242,00 Excl. tax
€189,97 Incl. tax €292,82 Incl. tax. Out of stock, but available

Unit price: €157,00 / Piece

Advanced KNX ceiling sensor with light, temperature, humidity and sound detection, featuring presence and utilization functions for smart, energy-efficient lighting and climate control. Read more

Specifications

Brand:

eelectron

Article number:

PD00E03KNX

EAN:

8054144521558

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link zur Website von eelectron (Englisch)

Eelectron SPACE.SENSOR KNX – Presence Detector (Multisensor)

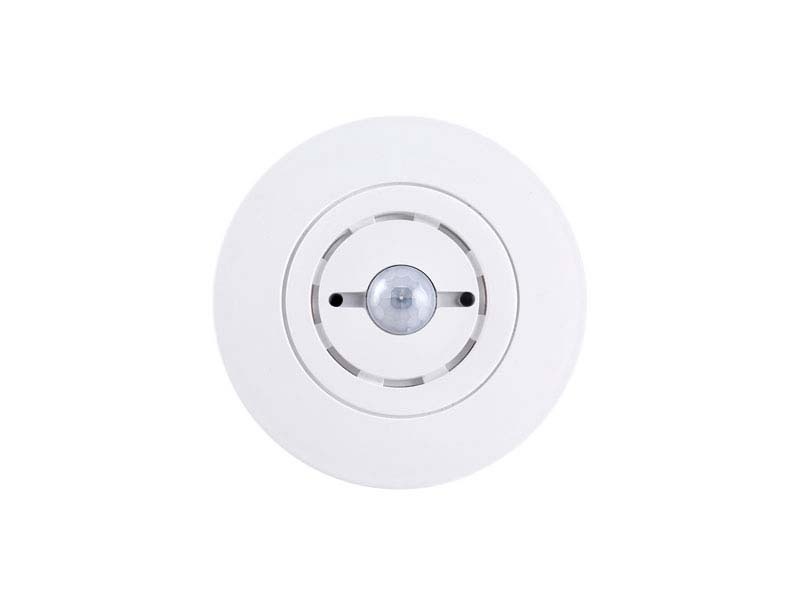

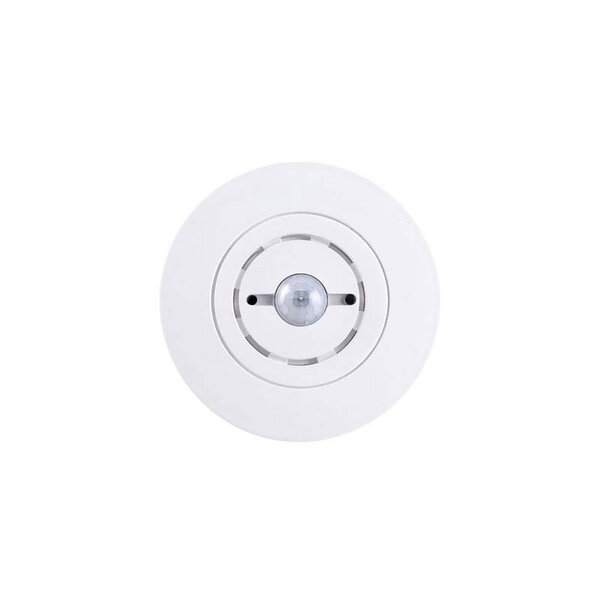

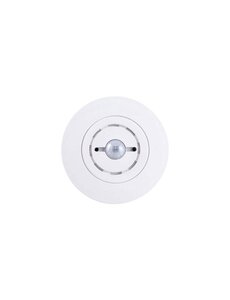

Art. No.: PD00E03KNX (White)

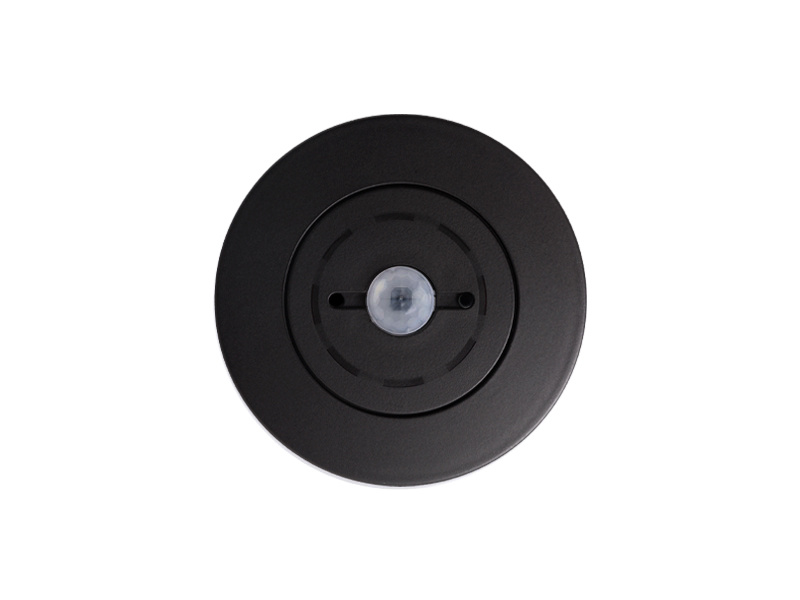

Art. No.: PD00E03KNX-3 (Black)

Ceiling-mounted sensor for installation heights up to 4 m, featuring detection of light, temperature, humidity and sound, combined with presence, utilization (usage mapping) and occupancy (activity intensity) functions. Ideal for energy-efficient lighting and climate control in offices, hotels and commercial buildings.

Main Features

5 independently configurable presence channels (PIR) with/without light control; automatic or semi-automatic operation.
Virtual Holder Logic for accurate room recognition in hotel applications.
Circadian Rhythm: adjusts light level and color temperature according to predefined curves or real sun position.
Utilization: usage and status mapping (utilization index, % usage) for dashboards and analytics.
Occupancy: activity level detection for zone/room heatmap generation.
3 digital inputs (potential-free); 1 input configurable as analog for NTC temperature sensor.
Integrated 2-stage thermostat with PI controller for heating/cooling, 2-/4-pipe fan coils and valves.
12 logic blocks for threshold, logical and conditional/algebraic expressions; dew point and proportional control algorithms.

Detection Range & Installation

Installation: ceiling-mounted, recommended height ≤ 4 m.
PIR detection area: approx. Ø 6 m at 2.5 m height; approx. Ø 8 m at 4 m height (depending on sensitivity and environment).

Technical Data

Power supply: via KNX bus 21–32 V DC (SELV); current consumption: ≤ 10 mA.
Connections: 6-pin wired connector (AWG24, 100 mm); KNX terminal; 3× digital / 1× analog input.
NTC compatibility: TS01A01ACC (–20…+100 °C), TS01B01ACC (–50…+60 °C), TS01D01ACC (–5…+45 °C); max. cable length 30 m (twisted).
Light sensor: 50–20,000 lx (indirect measurement; calibration via ETS recommended).
Temperature sensor: –5…+45 °C; resolution 0.1 °C; typical/max tolerance ±0.2 °C.
Humidity sensor: 0–100 % RH; resolution 0.1 %RH; typical/max tolerance ±2 %RH (±3 %RH).
Sound sensor: additional detection for areas beyond direct PIR coverage.
Housing: PC-ABS; dimensions: Ø 81 × 37 mm; weight: approx. 120 g.
Protection rating: IP20 (EN 60529); environment: indoor.
Operating temperature: –5…+45 °C; storage temperature: –20…+55 °C; RH (non-condensing): max. 90%.
Standards/EMC: EN 50491-3 / -5-1 / -5-2 / -2; compliant with LVD 2014/35/EU and EMC 2014/30/EU.

Important Note

Avoid direct sunlight or artificial light exposure on the sensor. Install on a stable surface, away from heat sources or moving objects within the detection field. Calibrate light measurement via ETS (indirect ceiling measurement). Consider obstacles such as walls, glass or furniture, as well as airflow that may cause false motion or blind areas. Sensitivity depends on the temperature difference between the environment and moving objects.
