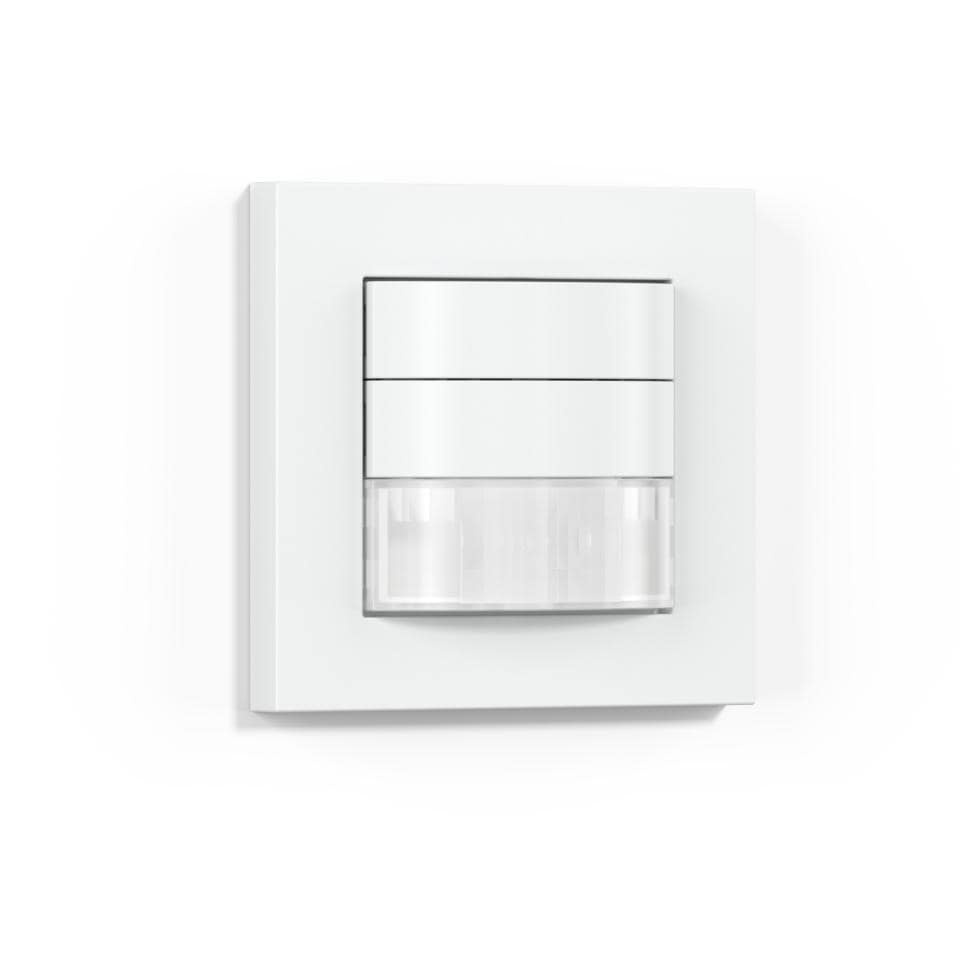

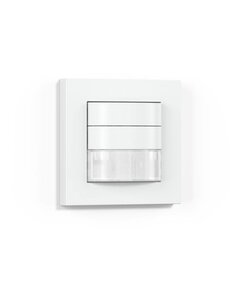

IR 180 KNX white infrared presence detector IP20
€103,50 Excl. tax
€185,40 Excl. tax
€125,24 Incl. tax €224,33 Incl. tax. Out of stock, but available
€125,24 Incl. tax €224,33 Incl. tax. Out of stock, but available
Infrared presence detector with 180° detection angle, up to 12 m range, wall-mounted. Also measures temperature and humidity. KNX control, adjustable via ETS or remote control. Read more
Specifications
Brand:
STEINEL
Article number:
058463
EAN:
4007841058463
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
IR 180 KNX Wall-Mounted Presence Detector
Part No.: 058463
The STEINEL IR 180 KNX is a high-quality infrared presence detector for indoor use with a detection angle of 180° and a tangential range of up to 12 m. In addition to presence detection, this KNX version also measures temperature and humidity. Suitable for wall mounting at a height of 1.0–1.2 m, ideal for new builds or renovations with 3-wire cabling. Configurable via ETS software, bus, remote control, or the integrated manual button.
Applications
- Small offices
- Hallways and corridors
- Storage or technical rooms
- Pantries
- Staircases
- WC and washrooms
Main Features
- Detection angle: 180° with undercrawl protection, 96 switching zones
- Range: tangential 12 m (226 m²), radial 4 m (25 m²), presence 4 m
- Sensor technology: passive infrared, light sensor, temperature and humidity sensor
- Twilight setting: 2–1000 lux, with teach-in function
- Time setting: 60 s – 255 min, basic light function, main light adjustable from 0–100%
- KNX functions: twilight switch, basic light function, brightness value, HVAC output, constant light control, 4× light output, air pressure*, humidity output, presence output, day/night function, dew point, temperature output, logic gate
- Network: master/master and master/slave coupling via KNX bus
- Energy-efficient, low-maintenance design
Technical Data
| Part number | 058463 |
|---|---|
| EAN | 4007841058463 |
| Product category | Presence detector (wall) |
| Dimensions (L × W × H) | 50 × 80 × 80 mm |
| Colour | White (RAL 9010) |
| Mounting | In-wall / wall mount |
| Mounting height | 1.0–1.2 m (optimal 1.2 m) |
| Protection class | IP20 |
| Ambient temperature | 0…+40 °C |
| Supply voltage | 21–30 V (KNX TP) |
| Rated current | approx. 12.5 mA |
| KNX medium | TP 256 |
| KNX Secure | No |
| Settings | ETS software, remote control, bus |
| Corner wall bracket included | No |
| Package contents | 1 piece |
| Warranty | 5 years |
Important Notes
- For indoor use only (IP20). Do not use in damp environments or outdoors.
- For optimal detection, mount at 1.2 m height with an unobstructed view.
- Range may vary depending on mounting height, ambient temperature, and movement type.
- Requires a KNX bus installation (TP) and configuration via ETS.
- Not KNX Secure-enabled; ensure appropriate network security.
- * Availability of functions such as air pressure may depend on the application version used.
