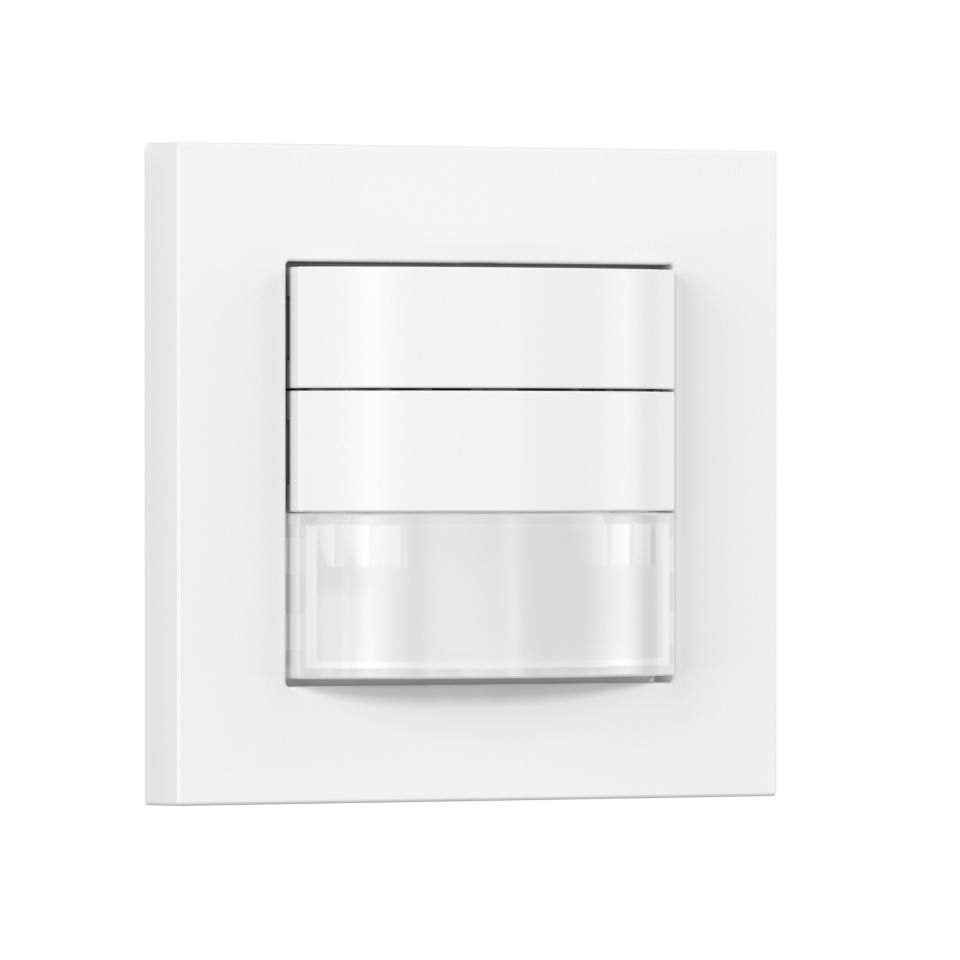

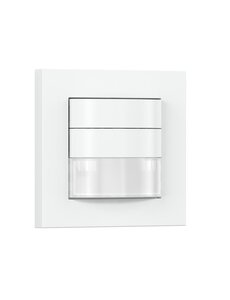

HF 180 KNX | HF wall presence detector, temp., humidity | white
€128,59 Excl. tax
€230,30 Excl. tax
€155,59 Incl. tax €278,66 Incl. tax. Out of stock, but available
€155,59 Incl. tax €278,66 Incl. tax. Out of stock, but available
Presence detector with HF technology for wall mounting. Detects through partitions, 180° angle, 8 m range. Measures light, temperature and humidity. Read more
Specifications
Brand:
STEINEL
Article number:
059460
EAN:
4007841059460
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
HF 180 KNX
Presence detector white
Art. No.: 059460
Description
The HF 180 KNX is a high-frequency (5.8 GHz) wall-mounted presence detector for indoor use. Thanks to HF technology it detects quickly and independent of temperature, even through glass, wood and lightweight partitions. With a 180° detection angle and a range of up to r = 8 m (≈ 101 m²), it is the ideal solution for small offices, waiting rooms, corridors, staircases and sanitary areas. The KNX version also measures brightness, temperature and humidity and supports constant light control.
Applications
- Small office, corridor/hallway, storage/utility room, pantry, staircase, WC/washroom

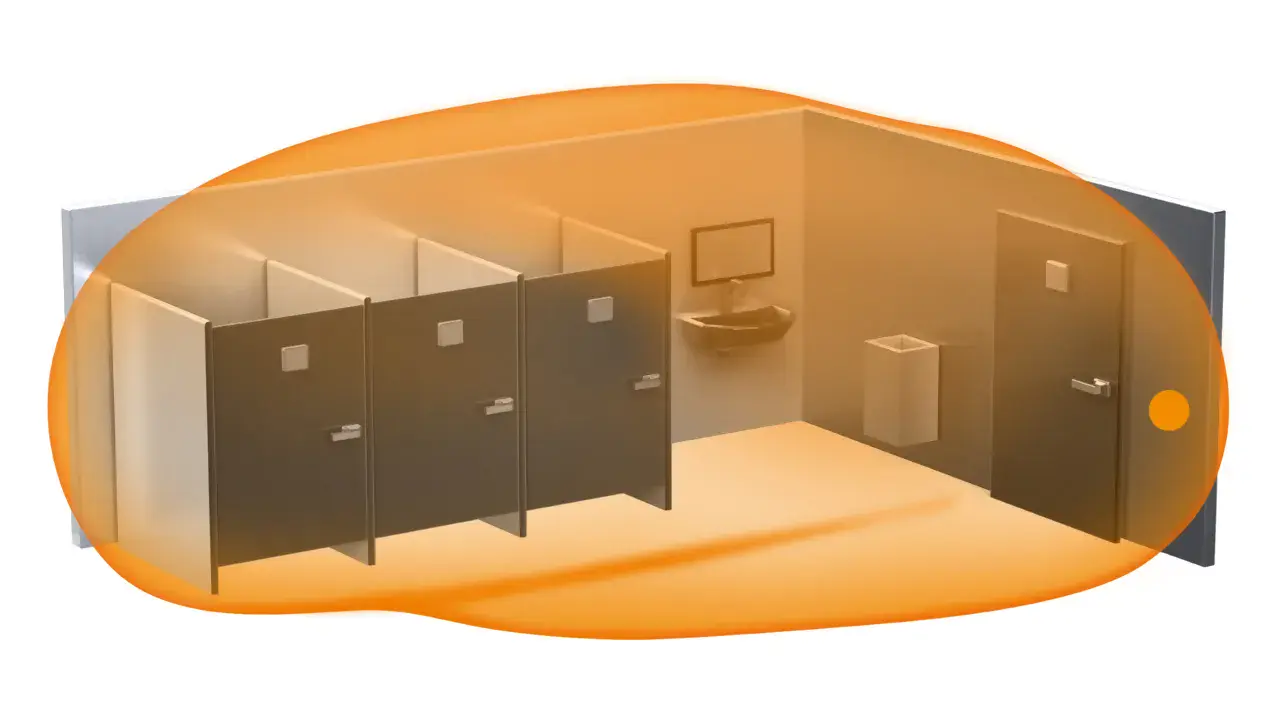

- Detection through thin partitions desirable (e.g. multiple cubicles/rooms)
Main functions
- HF presence detection, 180° coverage, r = 8 m (radial/tangential)
- Detection through glass, wood and lightweight walls; creep protection
- Measurement: light (lux), temperature, humidity
- Constant light control, twilight switch (2–1000 lx), day/night function
- Basic light function: Permanent-ON, 1–255 min or all night; main light 0–100 %
- Teach-in of twilight setting
- KNX communication objects for presence, HVAC output and 4× lighting output; logic gate
- Networking: master/master and master/slave
- Configuration via ETS; operation/parameterization via bus and optional Smart Remote
Technical data
| Mounting | In-wall, wall mounting (corner wall bracket not included) |
|---|---|
| Mounting height | 1.20–2.20 m (optimal 1.2 m; max. 2.20 m) |
| Detection angle | 180° (opening angle 140°) |
| Range | r = 8 m (radial and tangential; ≈ 101 m²) |
| Sensor technology | HF 5.8 GHz, transmitting power < 1 mW |
| Adjustment ranges | Time 60 s–255 min; twilight 2–1000 lx |
| Power supply | Via KNX bus (TP 256), nominal current approx. 12.5 mA |
| KNX | Medium TP 256; KNX Secure: no |
| Protection | IP20, protection class II |
| Ambient temperature | 0…40 °C |
| Material / colour | Plastic, white (RAL 9010) |
| Dimensions (L×W×H) | 50 × 80 × 80 mm |
| Settings | ETS software, via bus, Smart Remote |
| Indicators | Electronic setting (no mechanical segments) |
| Certificates | CE; energy-saving control via KNX actuators |
| Warranty | 5 years (manufacturer) |
Important notes
- Indoor use only (IP20). Not suitable for damp or outdoor areas.
- HF detection also works through thin walls; be aware of possible detection of movement in adjacent rooms. Place the device to minimize unwanted detection.
- The device communicates via KNX telegrams; switching/dimming functions require suitable KNX actuators. No mains or relay outputs on the device itself.
- Bus current (≈ 12.5 mA) must be considered in KNX power supply planning.
- Optimal mounting height 1.2 m for reliable presence detection and creep protection.
- Not to be used as a safety component (e.g. personal safety or burglary detection).
