5379 KNX RF Blue IO CV dimming actuator | 4x 12–24 V, 6 A total
€110,26 Excl. tax
€159,80 Excl. tax
€133,41 Incl. tax €193,36 Incl. tax. Out of stock, but available
€133,41 Incl. tax €193,36 Incl. tax. Out of stock, but available
KNX-RF dimming actuator with 4 PWM outputs (12–24 V⎓, 6 A total, 144 W) for RGB(W), Tunable White or 4 channels. Includes scenes, timers and KNX Data Secure. Read more
Specifications
Brand:
Weinzierl
Article number:
5379
EAN:
4260262773791
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Due to the holidays, orders may be delayed and pickup is not possible.
Information

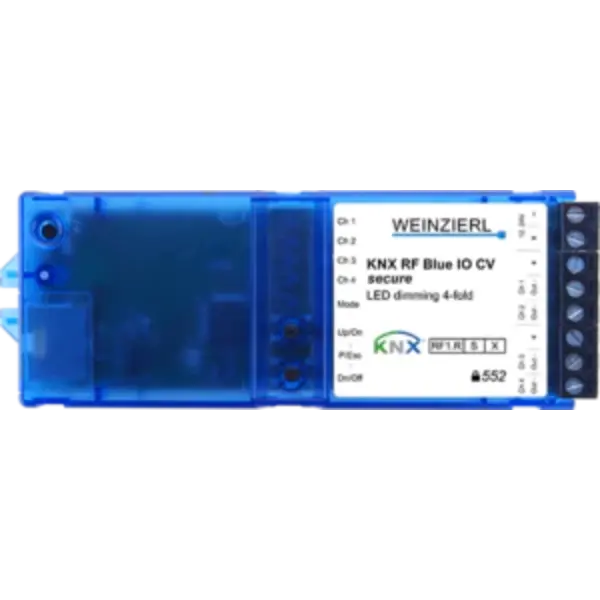

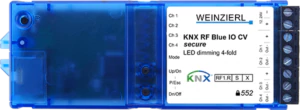

Product Description – KNX RF Blue IO 552 CV secure
Art. No. 5379
Application
The KNX RF Blue IO 552 CV secure is a compact dimming actuator for RGB, RGBW, and Tunable White LEDs with 4 PWM outputs for constant voltage. The device supports only KNX RF S-Mode and offers KNX Data Security. Ideal for wireless lighting control in KNX installations.
Functions
- 4 PWM outputs for constant voltage (CV) 12–24 V⎓
- Maximum total current: 6 A
- Maximum output power: 144 W
- Supports RGB, RGBW and Tunable White configurations
- Individually configurable dimmer channels
- Integrated comfort functions: scenes, slumber fading, staircase lighting and sequencer
- 16 independent logic or timer functions
- Local operation via 2 push buttons and status display with 5 multicolor LEDs
- Fully supports KNX Data Security
- Operates only via KNX RF S-Mode (ISM band 868.3 MHz, FSK)
Technical Specifications
- Power supply: 24 V⎓, approx. 10 mA (no load)
- Output voltage: 12–24 V⎓ (constant voltage)
- Output current: max. 6 A total (freely distributable)
- Output power: max. 144 W
- PWM frequency: 480 / 600 Hz
- KNX interface: KNX RF S-Mode, integrated antenna
- Housing: Transparent plastic
- Dimensions: 132 × 46 × 20 mm
- Weight: approx. 75 g
- Connections:
- 2-pole screw terminal for power supply
- 3-pole screw terminals for dimmer channels 1/2 and 3/4
- Wire cross-section: 1.5–2.5 mm²
- Ambient temperature (operation): -5 … +45 °C
- Relative humidity: 5 … 93 % (non-condensing)
- Protection class: IP20
- Electronic short-circuit and thermal protection (non-resettable)
Important Note
Note: This device operates exclusively via KNX RF S-Mode. Secure communication must be enabled via KNX Data Security in ETS.
