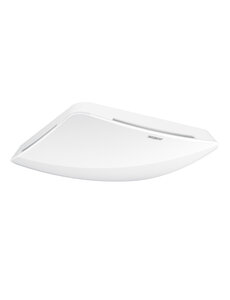

Multisensor True Presence KNX HF flush – pres. detector
€391,58 Excl. tax
€750,50 Excl. tax
€473,81 Incl. tax €908,11 Incl. tax. Out of stock, but available
€473,81 Incl. tax €908,11 Incl. tax. Out of stock, but available
KNX multisensor for presence, light, temperature, humidity, air pressure, VOC and CO₂. Flush-mounted, 360° detection, up to 64 m². Available in white and black. Read more
Specifications
Brand:
STEINEL
Article number:
056353
EAN:
4007841056353
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information

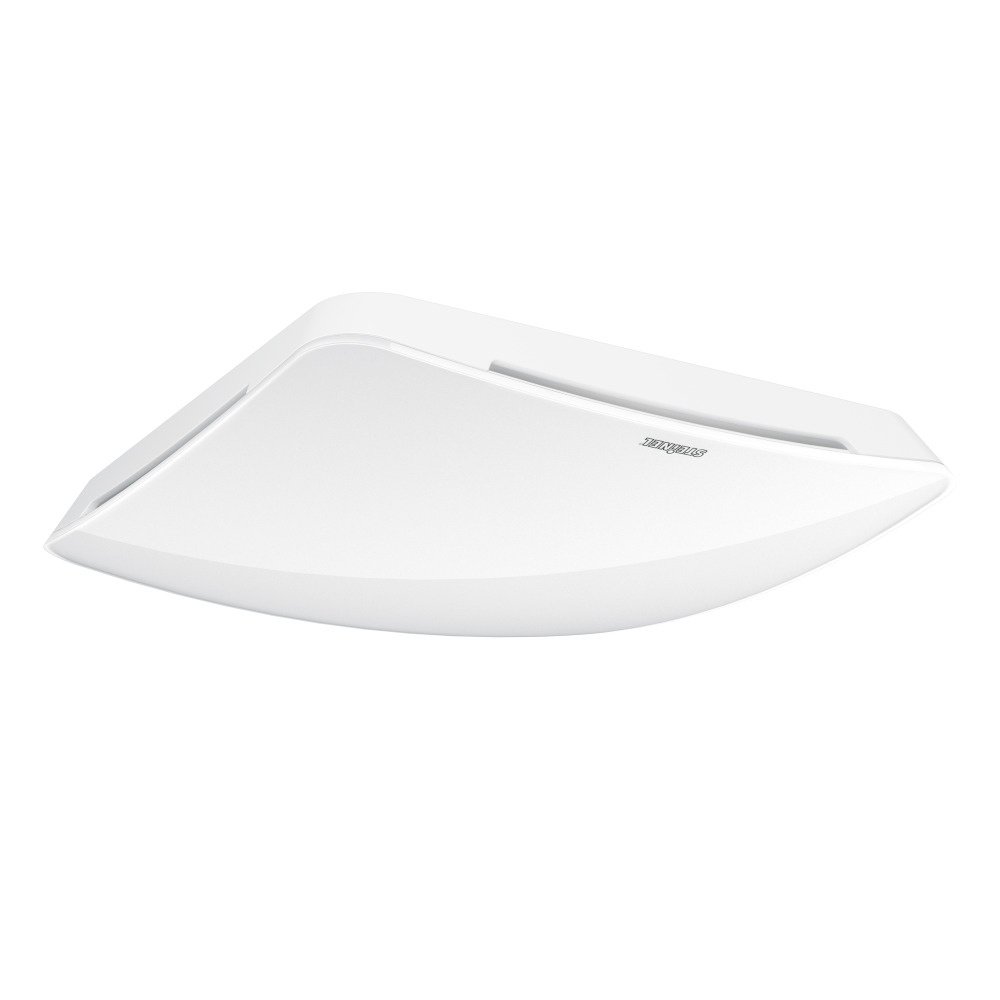

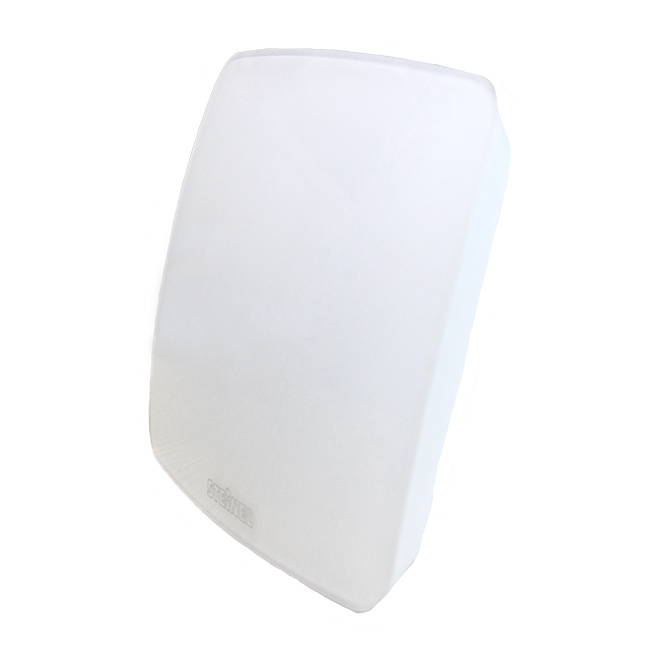

Multisensor True Presence KNX HF – Flush Mount (Ceiling)

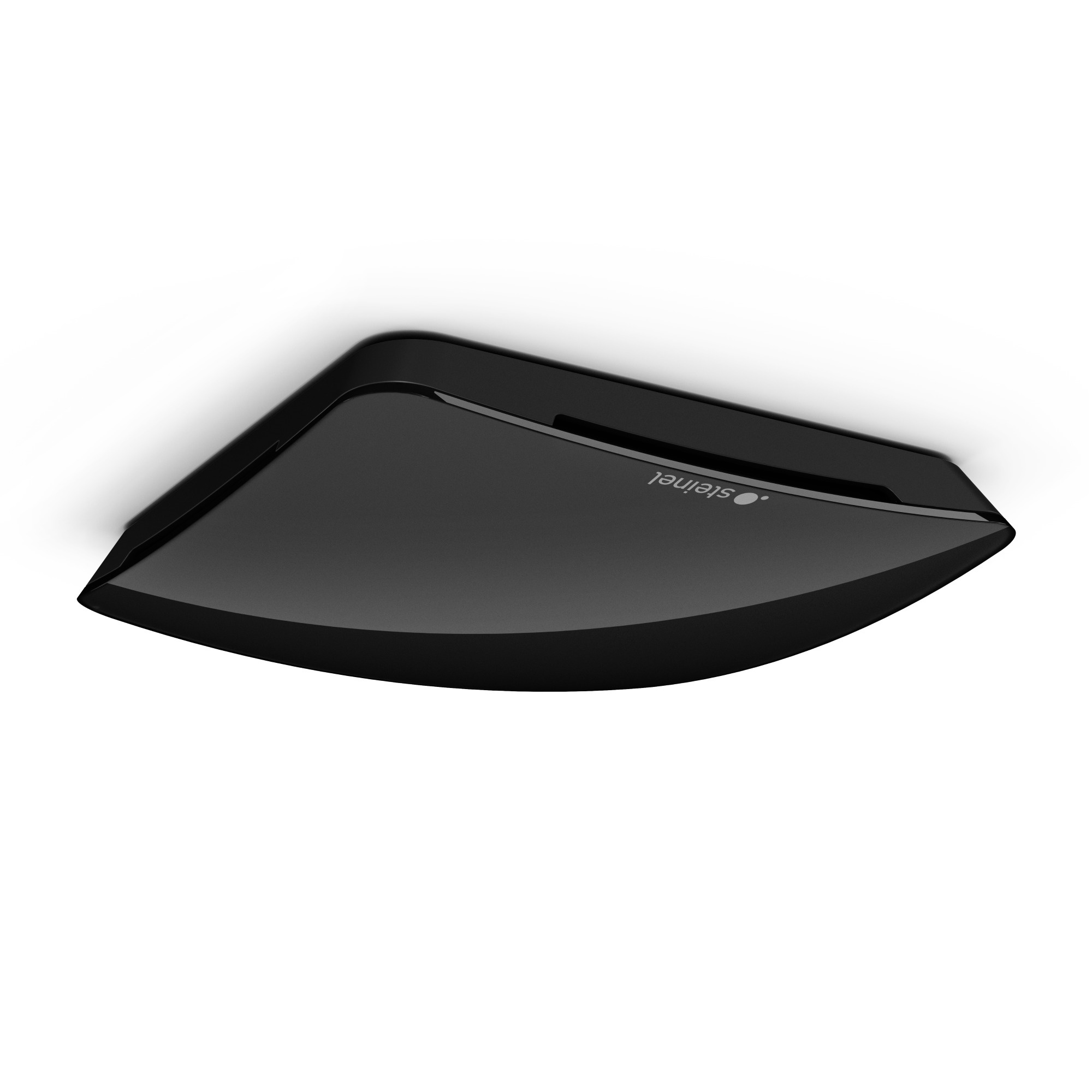

Item Nos.: 056353 (white), 086060 (black)
The Multisensor True Presence KNX HF is the sensory and controlling core of smart buildings. Beyond true presence detection (micro-movements linked to vital functions), it measures and controls based on illuminance, temperature, humidity, air pressure, VOC and CO₂. The HF sensor (7.2 GHz) provides 360° coverage with a Ø 15 m detection area (movement/presence) and a True Presence zone Ø 9 m (64 m²). Flush version available in white and black.
Control functions (KNX)
- VOC/CO₂-driven ventilation control: switch or modulate fans/air handling based on indoor air quality.
- Constant light control: automatic dimming/switching by lux level and presence (efficiency & comfort).
- HVAC output: heating/cooling/ventilation control via KNX using temperature & RH with day/night logic.
- Logic & scenes: thresholds, hysteresis, base light, main light 0–100%, 4× light outputs.
Applications
- Classrooms, lecture halls, small/large offices, meeting/conference rooms
- Hotel rooms, patient/staff rooms, lounges, sports halls, lobbies/receptions
- Any indoor space prioritising comfort & air quality (VOC/CO₂)
Main features
- True Presence®: reliable presence and absence without run-on times
- HF technology 7.2 GHz with 360° coverage and undercrawl protection
- Range: movement/presence Ø 15 m (≈ 177 m²), True Presence Ø 9 m (64 m²)
- Multisensing: light, temperature, RH, air pressure, VOC, CO₂
- Lighting functions: twilight 2–1000 lx (Teach-in), base light, constant light, main light 0–100%
- KNX functions: twilight switch, HVAC output, 4× light output, outputs for presence/RH/temp/VOC/CO₂, day/night, dew point, logic gate
- Detection possible through glass, wood and lightweight walls
Technical data

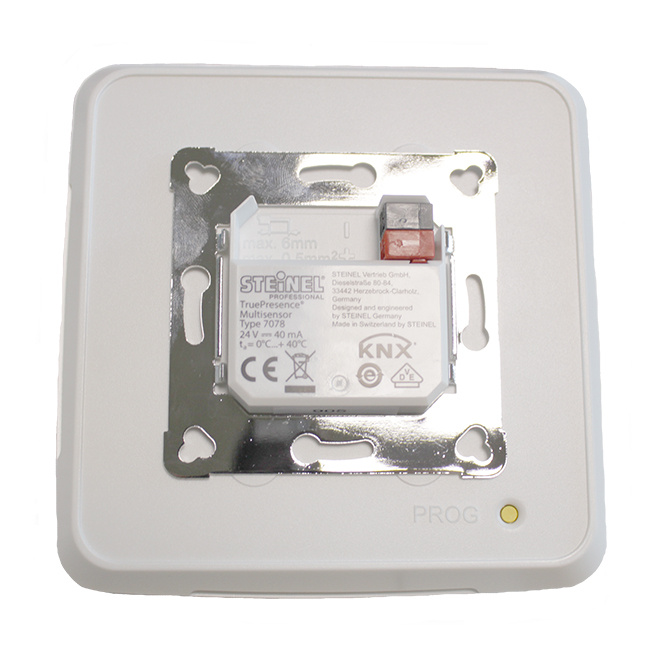

| Type | Flush mount (ceiling), indoor |
|---|---|
| Colour options | White (RAL 9003) / Black |
| Dimensions (H × W × D) | 33 × 123 × 123 mm |
| IP rating | IP20 |
| Ambient temperature | 0…+40 °C |
| Mounting height | 2.0–12.0 m (optimum 2.8 m); True Presence up to 4.0 m |
| Detection angle | 360° (opening angle 160°) |
| Detection range | Ø 15 m (movement/presence), Ø 9 m True Presence |
| HF transmission power | < 1 mW |
| Power supply | KNX bus (TP) 21–30 V; self-consumption ≈ 1 W; Inom ≈ 40 mA |
| KNX medium | TP 256 |
| KNX Secure | No |
| Configuration | ETS software, Bluetooth, bus (no IR remote) |
| Time setting | 30 s – 1092 min; base/main light 0–100% |
| Sensing | HF, light, temperature, RH, air pressure, VOC, CO₂ |
| Housing | Plastic |
| Package contents | 1 piece |
| Warranty | 5 years |
| Item / EAN (white) | 056353 / 4007841056353 |
| Item / EAN (black) | 086060 / 4007841086060 |
Important notes
- Indoor use only (IP20); not suitable for damp or outdoor areas.
- For reliable True Presence, mount at ≤ 4.0 m; general presence up to 12.0 m.
- Set VOC/CO₂ thresholds and hysteresis in ETS for stable control and comfort.
- Range depends on mounting height/environment/obstacles; ensure clear line of sight.
- Requires KNX installation and configuration via ETS; KNX Secure not supported.
