IS 3360 KNX | detector round/square | white/black | IP54
€103,50 Excl. tax
€185,40 Excl. tax
€125,24 Incl. tax €224,33 Incl. tax. Out of stock, but available
€125,24 Incl. tax €224,33 Incl. tax. Out of stock, but available
The IS 3360 KNX IP54 is a robust motion and presence detector with 360° coverage and 20 m range. Suitable for indoor and outdoor use, ideal for car parks, halls and entrances. Available in round or square design, white or black. Read more
Specifications
Brand:
STEINEL
Article number:
058166
EAN:
4007841058166
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
IS 3360 KNX – Presence & Motion Detector Surface-Mount (IP54)
Robust KNX detector for indoor and outdoor use with 360° detection and range up to 20 m (tangential, Ø 40 m). Ideal for large areas such as car parks, halls, and warehouses. Large connection chamber for easy installation. Available in four variants: round or square, white or black (IP54).
Available Variants

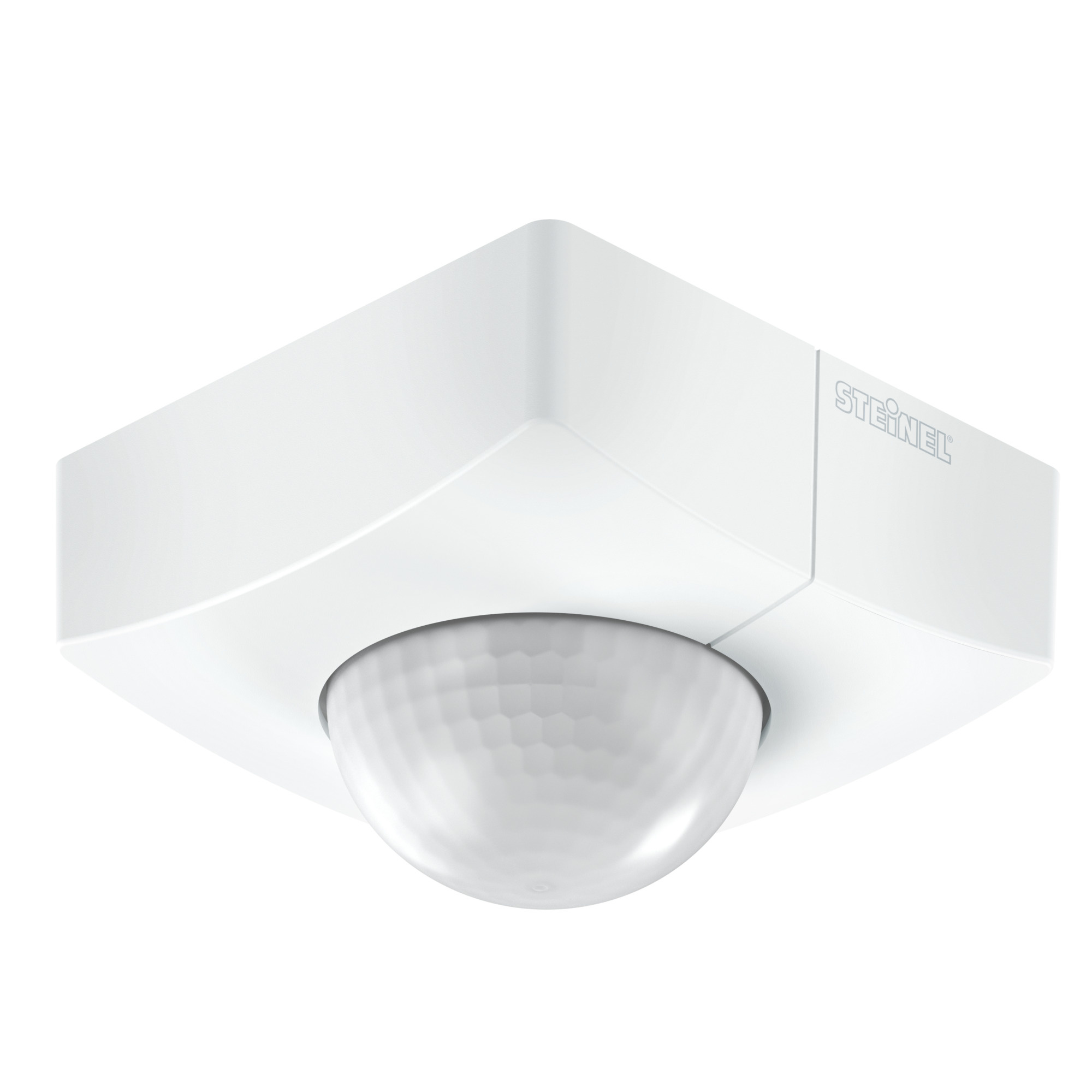

- Art.-No. 058166 – IS 3360 KNX | square, white (RAL 9003), IP54

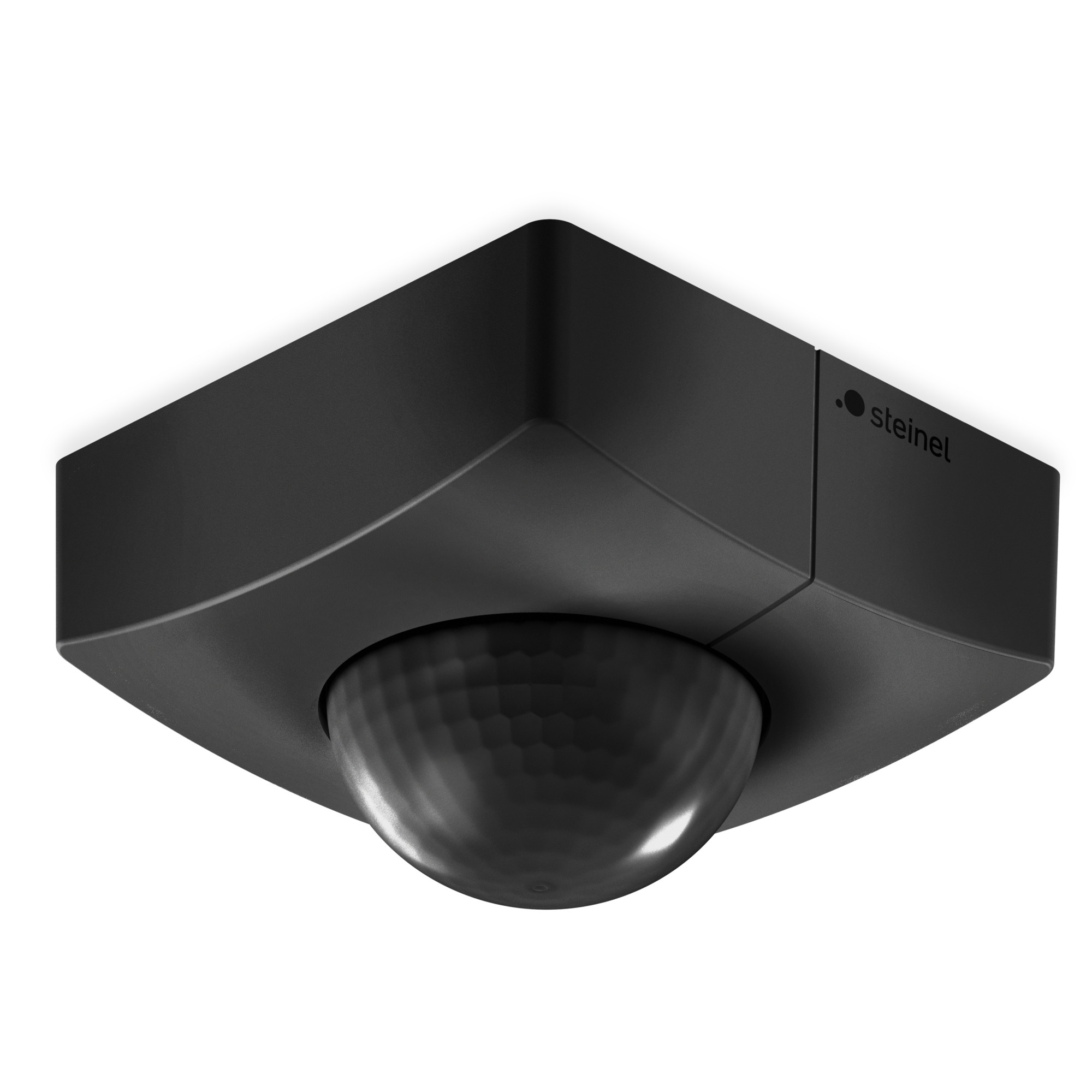

- Art.-No. 068561 – IS 3360 KNX | square, black (RAL 9005), IP54

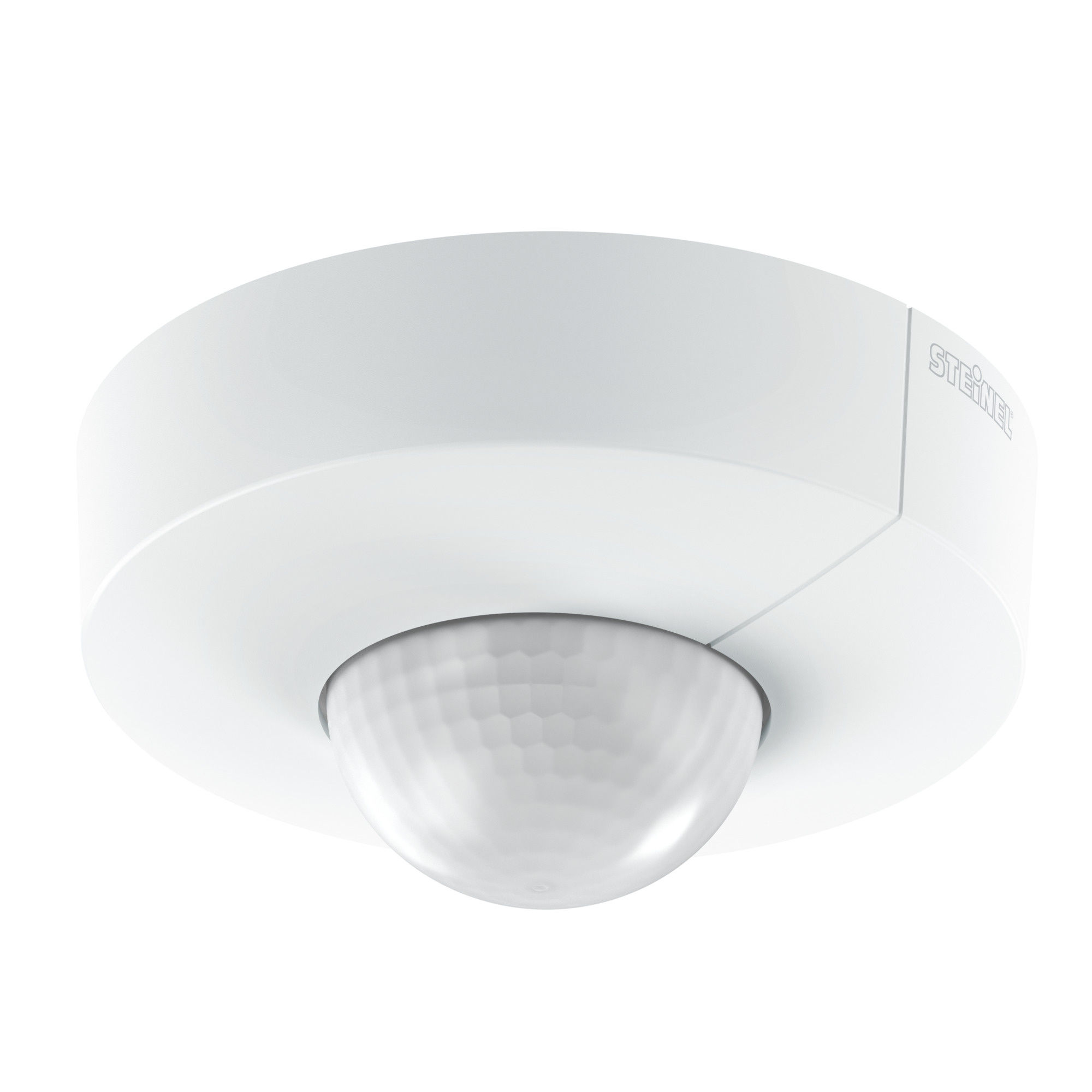

- Art.-No. 058180 – IS 3360 KNX | round, white (RAL 9003), IP54

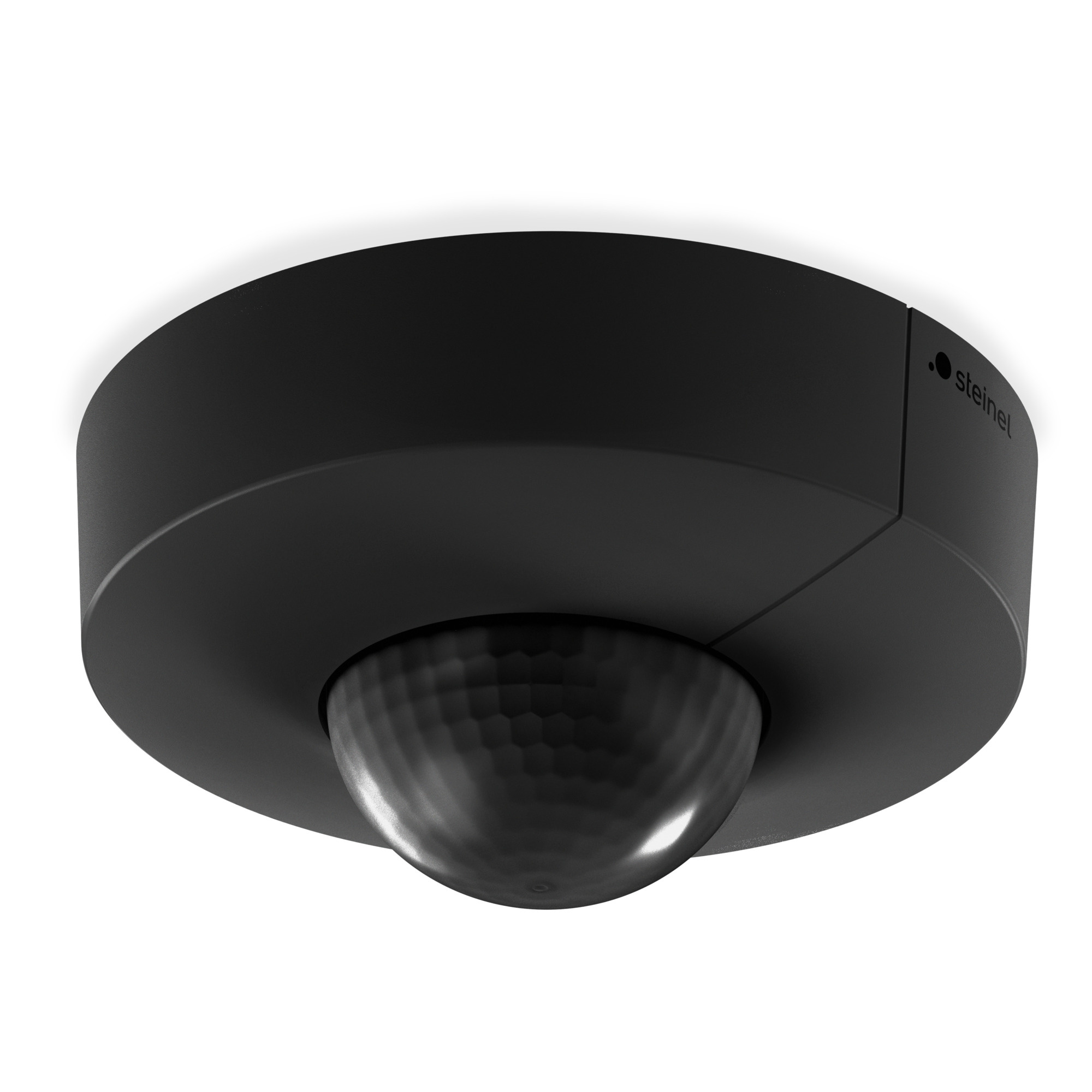

- Art.-No. 068585 – IS 3360 KNX | round, black (RAL 9005), IP54
Applications
- Car parks, halls, warehouses, production facilities
- Reception/lobby, staircases, WC/washrooms
- Large indoor and covered outdoor areas
Main Functions
- 360° detection with passive infrared (PIR) and integrated light sensor
- Range: tangential Ø 40 m (≈ 1257 m²), radial Ø 8 m (≈ 50 m²), presence Ø 3 m (≈ 7 m²)
- Mounting height: 2.5–4.0 m (optimal approx. 2.8 m)
- Creep-under protection and segment masking (reduce detection angle per segment)
- Constant light control with lux value and teach-in twilight setting
- Basic light function (standby), main light 0–100%, day/night function
- 2× light output, presence output and HVAC output via KNX communication objects
- Master/slave coupling via KNX bus
KNX & Control
- KNX Medium: TP 256 | KNX Secure: no
- Power supply via KNX bus | Nominal current approx. 12.5 mA
- Parameterisation via ETS; operation via bus or optional Smart Remote
- Time setting: 5 s – 15 min (via ETS parameters)
- Twilight setting: 2–1000 lx, teach function
- Logic gates available for advanced scenarios
Technical Data
| Detection angle | 360° (opening angle 180°) |
|---|---|
| Range (tangential) | Max. 20 m, Ø 40 m (≈ 1257 m²) |
| Range (radial) | Ø 8 m (≈ 50 m²) |
| Presence area | Ø 3 m (≈ 7 m²) |
| Switching zones | 1416 |
| Mounting | Wall surface-mount; ceiling mount possible |
| Protection class | IP54 |
| Ambient temperature | -20…+50 °C |
| Housing material | Plastic |
| Colour | White (RAL 9003) or Black (RAL 9005) |
| Dimensions square (L×W×H) | 65 × 95 × 95 mm |
| Dimensions round (Ø×H) | Ø 126 × 65 mm |
| Weight | Approx. 0.156 kg (square) / 0.163 kg (round) |
| Remote control | No (Smart Remote optional) |
| Product category | Presence / Motion detector |
Important Notes
- Indoor/outdoor (IP54): Cable entry and sealing must be properly sealed; installation according to manual to maintain protection rating.
- Detection range depends on mounting height, movement direction (tangential/radial), ambient temperature, and obstacles.
- All functions and values (time, lux, logic, constant light) are project-specific and set via ETS.
- A comparable flush-mount version (IP20) is available separately for indoor applications only.
Related products

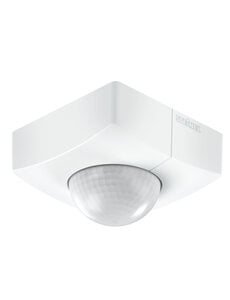

IS 3360 KNX | detector round/square | white/black | IP20
