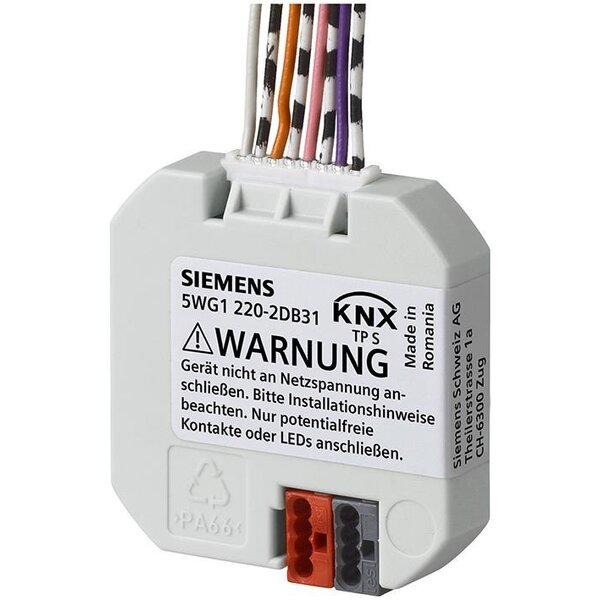

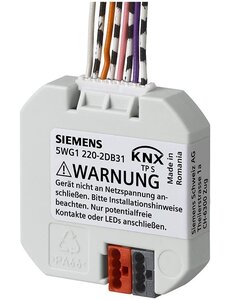

5WG1220-2DB31 Pushbutton Interface | 4-fold KNX Flush Mount
€77,51 Incl. tax €154,88 Incl. tax. Out of stock, but available
Specifications
Information
The KNX 4-fold pushbutton interface provides 4 configurable inputs/outputs for potential-free contacts or LED control (max. 2 mA). Includes integrated bus coupling unit and 8-wire cable (280 mm), extendable up to 10 m. Suitable for flush mounting boxes with 60 mm diameter and 40 mm depth.
Main Features
- 4 independent inputs/outputs for potential-free contacts or LED control
- Supports KNX PL-Link (Desigo TRA) and KNX S-Mode (GAMMA)
- Integrated bus coupling unit
- Extendable cable up to 10 meters
- Compact design for flush mounting
- Protection class: IP20
Technical Specifications
- Power supply: via KNX bus
- Number of inputs: 4
- Max LED current: 2 mA
- Bus connection: via bus terminal
- Cable: 8-wire, 280 mm (max. 10 m)
- Minimum mounting depth: 20 mm
